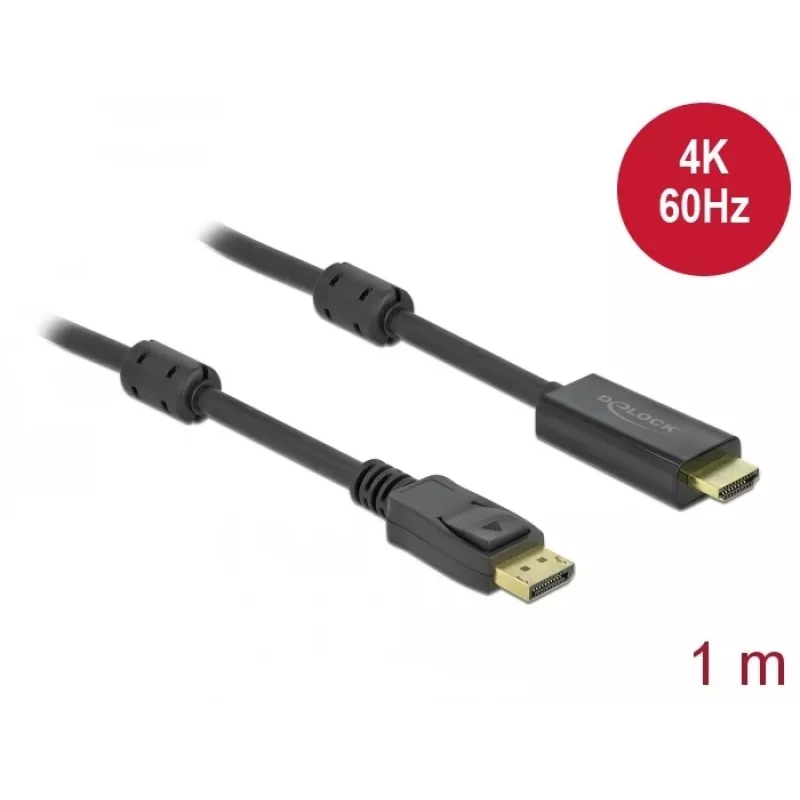

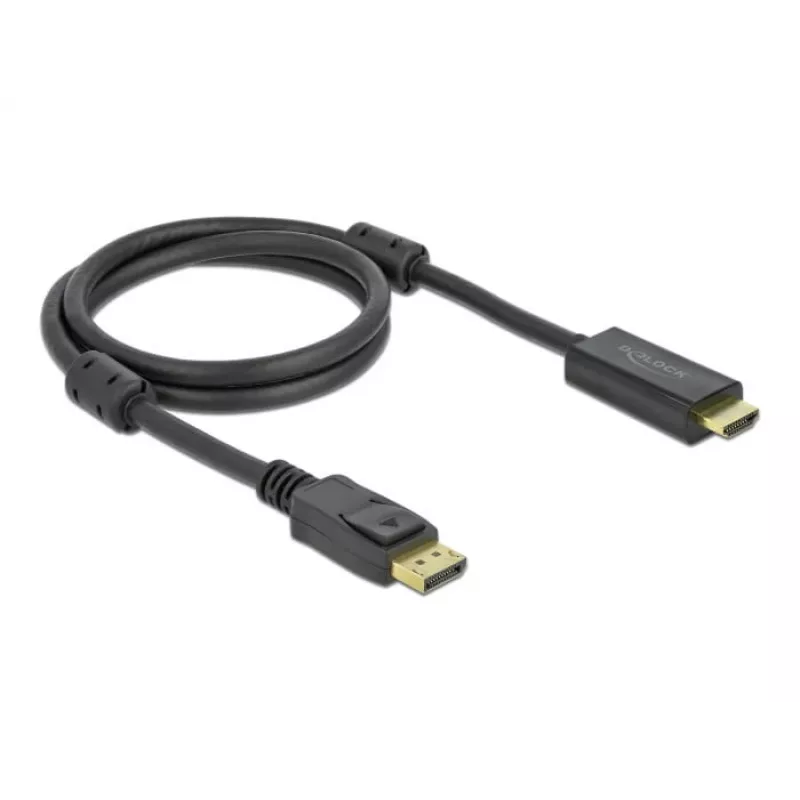

Cable DeLOCK Active DisplayPort 1.2 a HDMI 4K 60 Hz 1 m

This cable by Delock enables connection of devices with an HDMI Type A connector, such as a monitor, to a DisplayPort interface. It is an active DisplayPort 1.2 to HDMI cable that supports 4K resolution at 60 Hz and is 1 m long with a 7.2 mm diameter. The cable is black and provided as a single unit in a polybag.

Advantages

The active conversion allows use with graphics cards that cannot output DP++ signals. It supports high-resolution 4K at 60 Hz for smooth video playback and is compatible with standard HDMI Type A displays. Compact 1 m length and robust construction make it suitable for typical desktop and workstation setups.

Suitable for

• Connecting a DisplayPort output to an HDMI monitor or TV
• Setups where the GPU does not provide DP++ (requires active conversion)
• Desktop PCs, workstations and other devices with DisplayPort 1.2 output

Key specifications

• Cable type: Active DisplayPort 1.2 to HDMI
• Supported resolution: 4K (3840 x 2160) at 60 Hz
• Length: 1 m
• Diameter: 7.2 mm
• Connector 1: HDMI Type A (Standard)
• Connector 2: DisplayPort
• Colour: Black
• Brand: DELOCK, MPN: 85955, EAN: 4043619859559

How to use

Connect the DisplayPort end of the cable to the DisplayPort output on your graphics card or device, and plug the HDMI Type A end into the HDMI input of your monitor or TV. Ensure both devices are powered on and set the display input to the corresponding HDMI source. If the graphics card requires it, the cable’s active electronics will handle the DP to HDMI conversion automatically.

Recommendations

Use the cable for single-monitor connections at up to 4K 60 Hz. Avoid sharp bends and excessive pulling; route the cable to prevent strain on connectors. For long-term installations or multi-monitor setups, verify compatibility with your GPU and display firmware.
