Cable DeLOCK DL4 cable solar plano conector macho a hembra 60 cm rojo 3,3 mm²

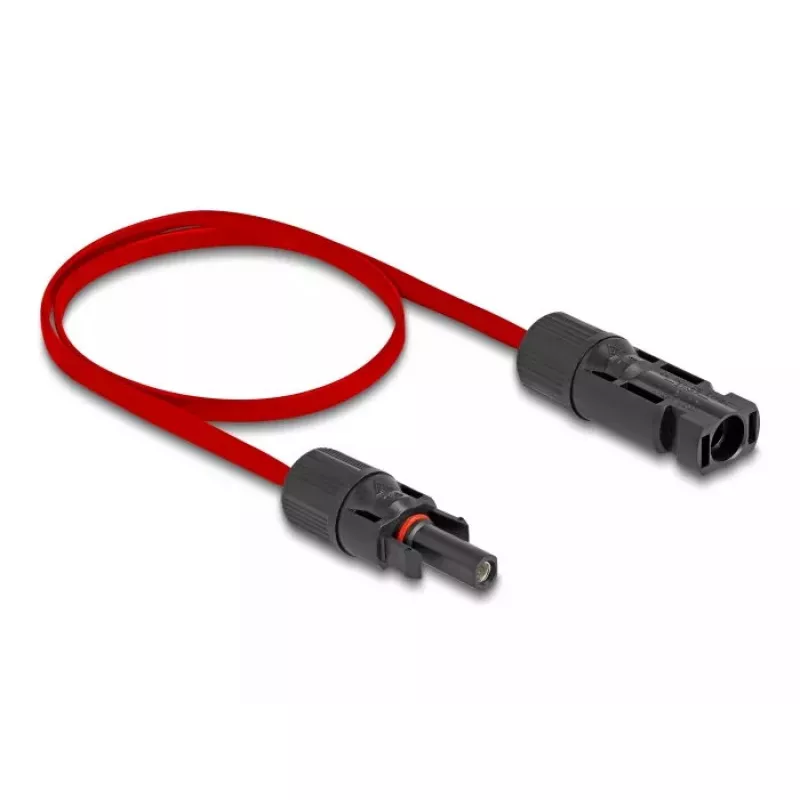

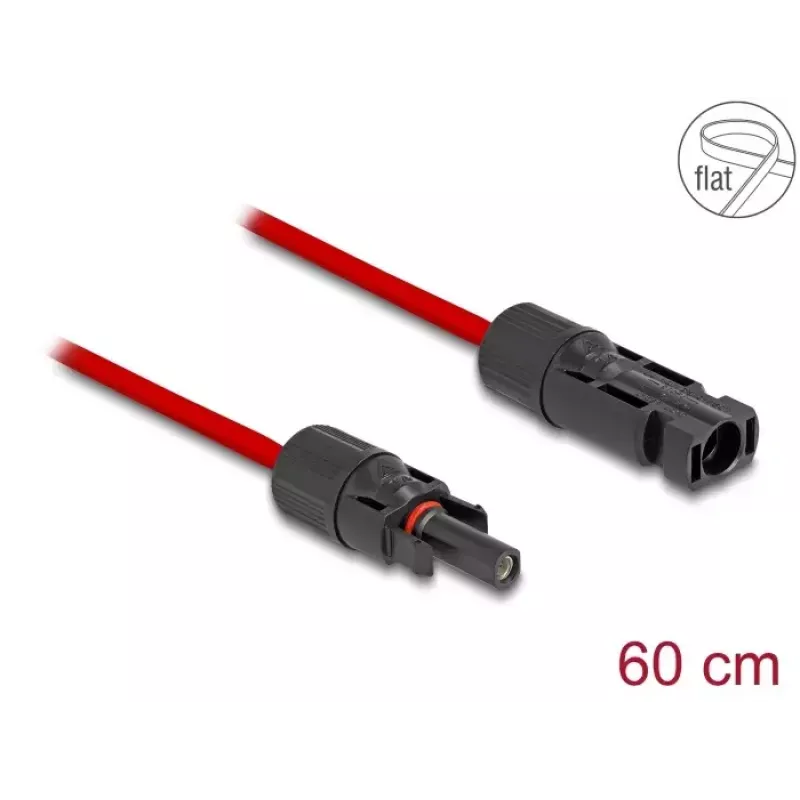

The DeLOCK DL4 Solar Flat Cable is a 60 cm red cable with male-to-female DL4 connectors and a conductor cross-section of 3.3 mm², designed to transmit power from photovoltaic systems. The flat and highly flexible design makes it suitable for routing through narrow openings such as window bushings while providing protection against dust and moisture with an IP67 rating.

Advantages

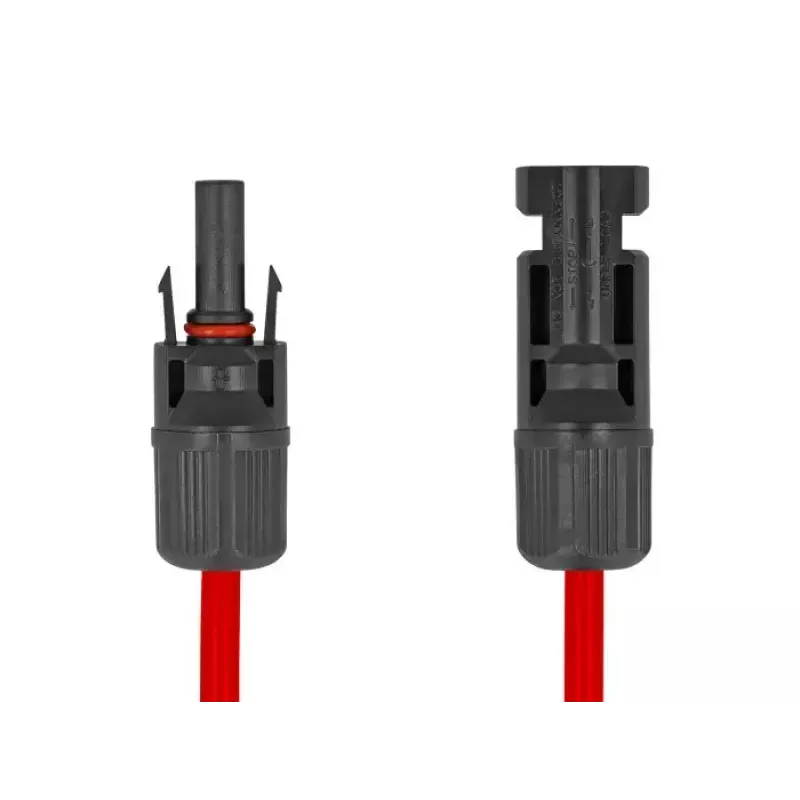

DL4 connectors feature a snap-in mechanism that prevents unwanted disconnection and ensures a secure electrical connection that can be released with the appropriate tool. The cable jacket material is flexible and strain-resistant, and the IP67 protection rating safeguards the connection from dirt and water. Its flat profile simplifies installation in confined spaces.

Suitable for

• Connecting photovoltaic modules to system components
• Routing through narrow or flat openings such as window bushings
• Outdoor and indoor solar wiring where dust- and water-resistant connectors are required

Key specifications

• Length: 60 cm
• Color: red

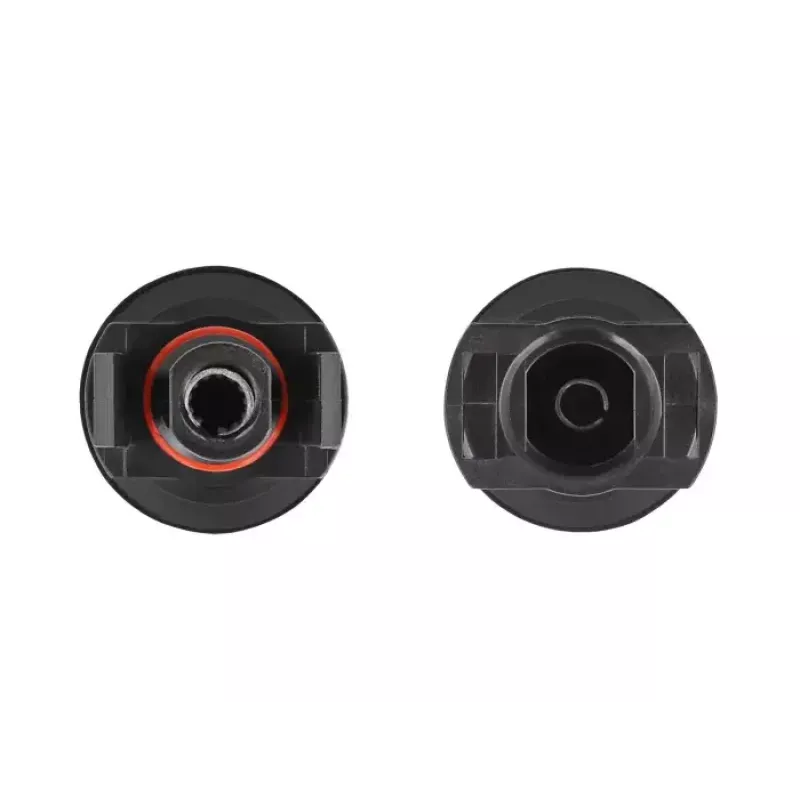

• Connector: DL4 male to DL4 female
• Conductor cross-section: 3.3 mm²
• Protection class: IP67 (dust and waterproof)
• Brand: DELOCK, MPN: 60674, EAN: 4043619606740

How to use

Connect the DL4 male plug to the corresponding DL4 female socket on the photovoltaic module or system component until the snap-in action locks the connector. To disconnect, use the appropriate release tool designed for DL4 connectors. Route the flat cable through narrow openings or window bushings as needed, avoiding sharp bends that could damage the conductor or jacket.

Recommendations

Use the cable within the specified environment for photovoltaic installations, ensure connectors are fully engaged for secure contact, and inspect connections regularly for wear or contamination. When disconnecting, always use the proper tool to avoid damaging the snap-in mechanism.
