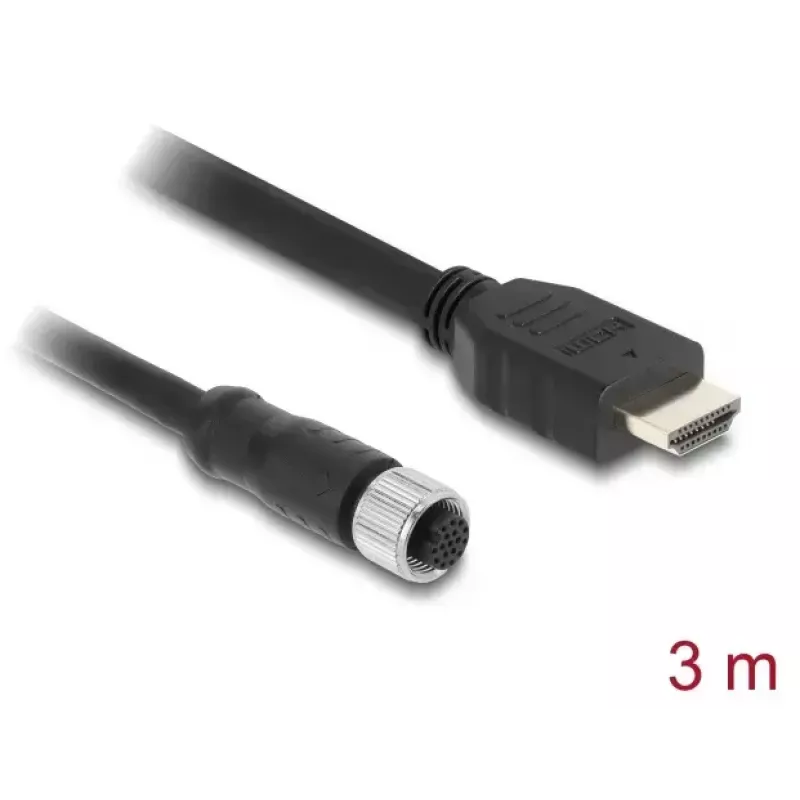

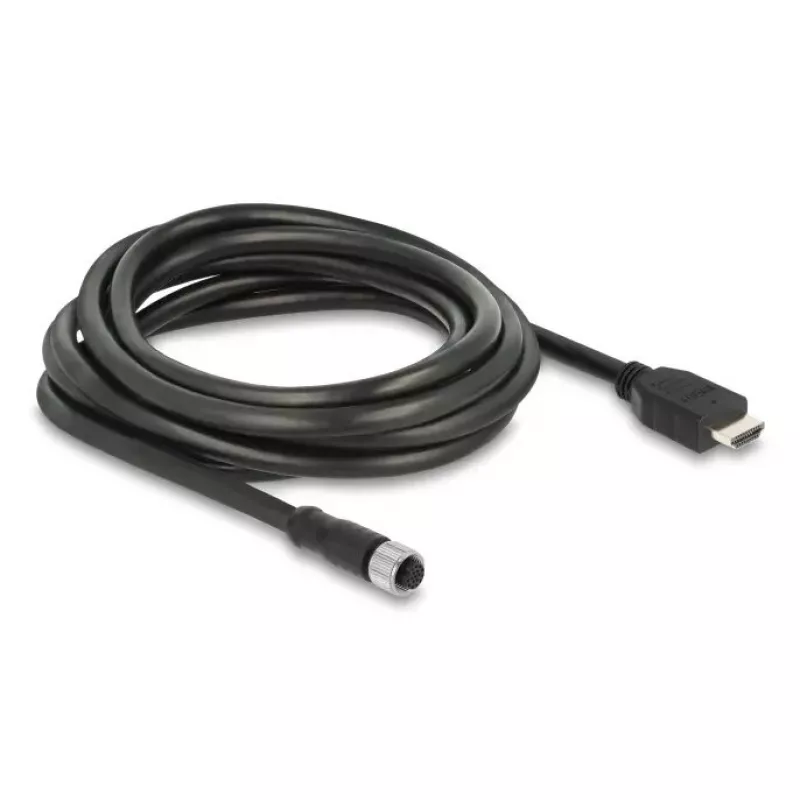

Cable DELOCK M12 codificado A de 17 polos (conector hembra) a HDMI (conector macho) 3 m

The DELOCK M12 A-coded 17-pin (female) to HDMI (male) cable, 3 m, provides a secure industrial connection between devices with an M12 A-coded 17-pin port and standard HDMI displays or capture devices. It is intended for environments where reliable HDMI signal transmission is required, such as industrial image processing, cameras, displays, mobile machines and industrial PCs with HDMI outputs.

Advantages

The cable combines an M12 A-coded 17-pin industrial connector with a standard HDMI plug, offering robust mechanical protection and straightforward connection to HDMI monitors or recording devices. With a 3 m length it allows flexible placement of equipment while maintaining a stable digital video signal suitable for demanding industrial applications.

Suitable for

• Industrial image processing systems
• Industrial cameras and machine vision setups
• Connecting displays or HDMI capture devices to machines and embedded systems
• Mobile machines and industrial PCs with M12 A-coded video ports

When it may not be suitable

This cable is intended for transmitting HDMI signals in industrial environments using an M12 A-coded 17-pin female port. It is not suitable if your device does not have the matching M12 A-coded 17-pin connector or if a different interface (for example DisplayPort, DVI, or VGA) is required. It does not replace adapters for incompatible signal standards.

Key specifications

• Cable length: 3 m
• Connector 1: M12 A-coded 17-pin (female)
• Connector 2: HDMI (male)
• Application: digital video signal transmission for industrial use

How to use

Connect the M12 A-coded 17-pin female end to the corresponding M12 port on the source device and plug the HDMI (male) end into the HDMI input of the display or capture device. Ensure connectors are aligned correctly and secure the M12 coupling as required by the equipment to maintain a stable connection. Power on the devices and select the appropriate HDMI input on the display or capture system.

What to consider before purchase

• Verify that the source device has an M12 A-coded 17-pin female port compatible with this cable.
• Confirm that the display or capture device accepts a standard HDMI input.
• Ensure a 3 m cable length suits the required distance between devices.

Recommendations

For reliable operation in industrial settings, route the cable to avoid mechanical strain and excessive bending. Use appropriate cable glands or strain reliefs at installation points and check connector engagement periodically to prevent signal interruptions.
