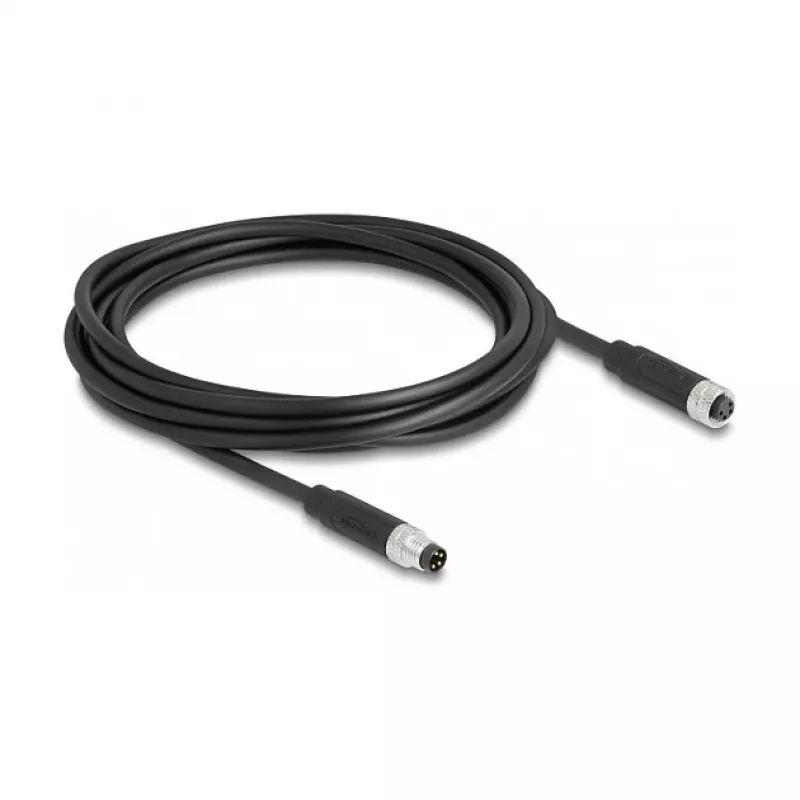

Cable DeLOCK M8 de 4 polos codificado A conector macho a conector hembra PUR TPU 3 m

This DeLOCK M8 4-pin cable A-coded male to female, 3 m long, is designed for industrial Ethernet connections between components with M8 connectors, for example in machine control and automation. The cable jacket is made of TPU/PUR, providing flexibility and resistance suited for drag chains and demanding environments. It is oil- and UV-resistant and meets industrial application requirements.

Advantages

The TPU (PUR) jacket offers long-term flexibility and enhanced wear resistance while maintaining reliable signal transmission through A-coded M8 4-pin connectors. The male-to-female configuration simplifies inline connections between sensors, actuators and control units. The 3 m length provides practical reach without excessive slack.

Suitable for

• Connecting sensors and actuators in automated machinery
• Machine control and industrial Ethernet applications
• Use in drag chains and moving installations
• Environments requiring oil and UV resistance

Key specifications

• Brand: DELOCK
• Model / MPN: 80144
• EAN: 4043619801442

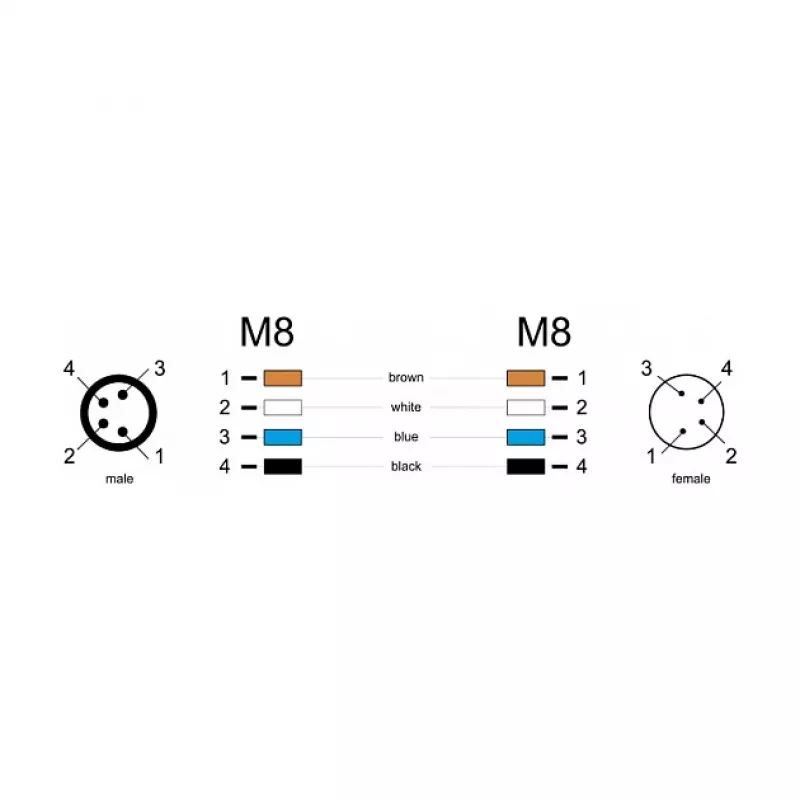

• Connector A: M8 A-coded 4-pin male
• Connector B: M8 A-coded 4-pin female
• Cable jacket material: TPU / PUR

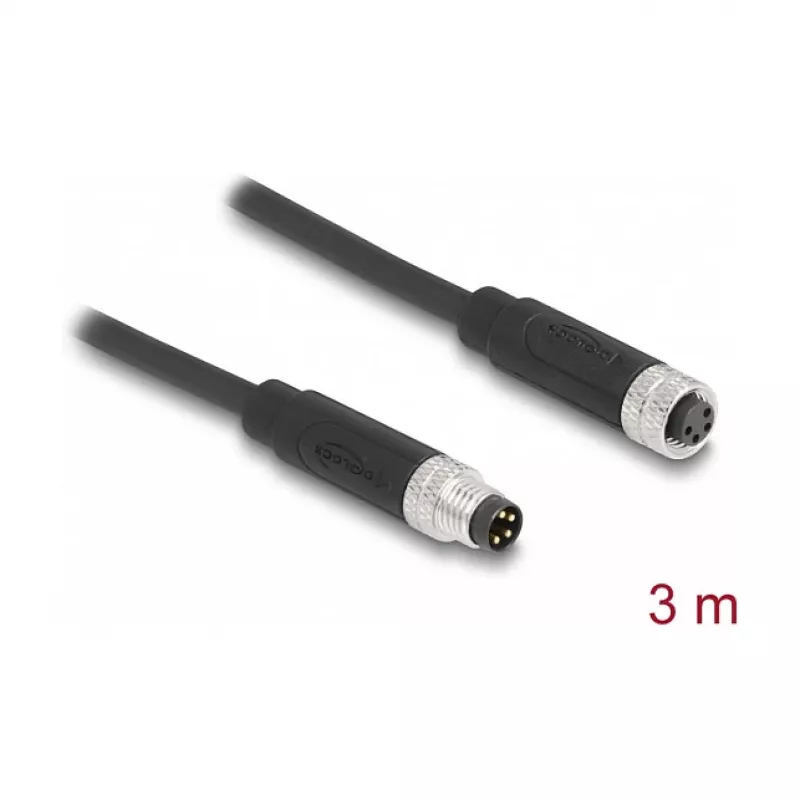

• Length: 3 m
• Application: Industrial Ethernet, machine control, automation

How to use

Connect the M8 male connector to the corresponding M8 female port on the controller or device and the M8 female connector to the sensor, actuator or peripheral. Ensure connectors are fully engaged and tightened if the device supports screw locking. Route the cable to avoid sharp bends and heavy crushing; in drag chains follow the manufacturer’s recommendations for minimum bending radius.

Recommendations

For reliable long-term operation in industrial environments, avoid exposure to temperatures or chemicals outside the device specifications and follow proper cable routing in moving applications. Inspect connectors periodically for contamination or damage and replace the cable if mechanical wear is evident.
