Cable DisplayPort conector hembra a hembra para montaje en panel DeLOCK 87101

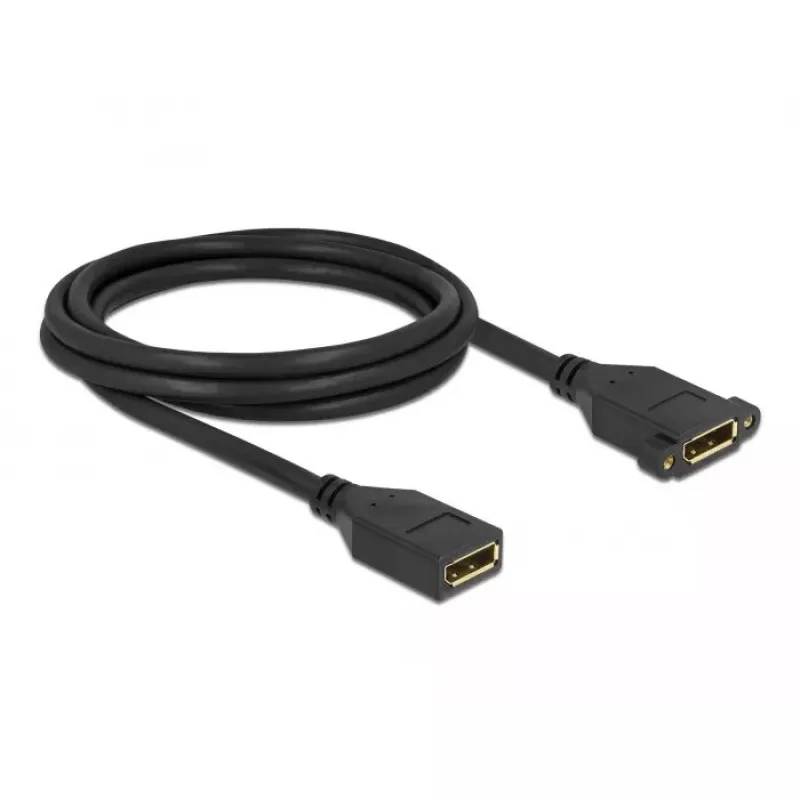

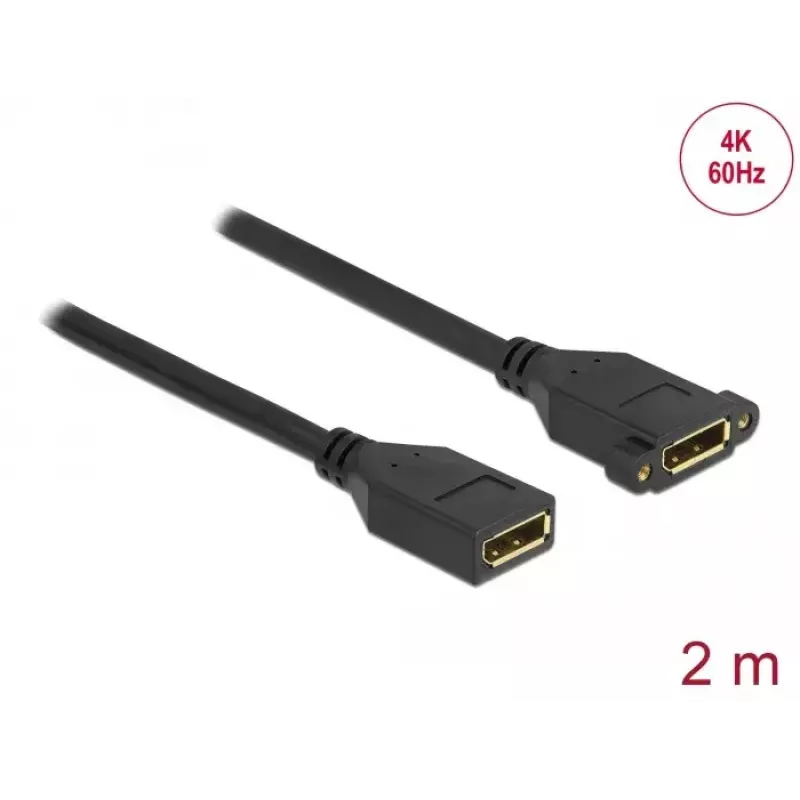

This DisplayPort cable by DeLOCK is a female-to-female panel-mount extension designed to extend or relocate a DisplayPort connection. The detachable female port can be fastened with two screws to a slot bracket, cable duct or enclosure opening, allowing installation of a DisplayPort connector in an easily accessible position. The cable supports DisplayPort 1.2 features and 4K resolution at 60 Hz, has a length of 2 m and a diameter of 7 mm, and comes in black.

Advantages

The panel-mount female-to-female design enables secure and fixed mounting of a DisplayPort connector in cabinets or panels. Support for DisplayPort 1.2 ensures compatibility with 4K@60 Hz video and multi-channel audio. With a 2 m cable length and slim 7 mm diameter, the cable is suitable for installations in limited spaces while maintaining signal integrity.

Suitable for

• Extending a DisplayPort connection between devices
• Installing a DisplayPort port on a slot bracket or enclosure panel
• Professional AV racks, control cabinets and home theatre setups
• Situations where an easily accessible DisplayPort connection is required

Key specifications

• Brand: DELOCK
• Model / MPN: 87101
• EAN: 4043619871018
• Connector: DisplayPort female to DisplayPort female (panel-mount)
• Standard: DisplayPort 1.2
• Maximum resolution: up to 4K (3840 x 2160) at 60 Hz
• Cable length: 2 m
• Diameter: 7 mm
• Colour: Black

How to use

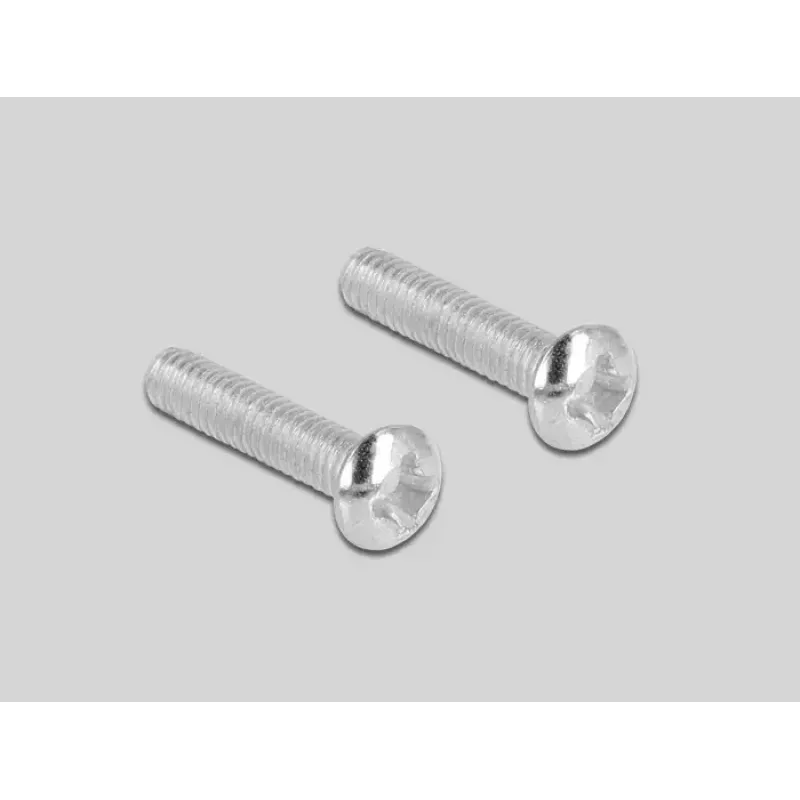

Mount the female port by aligning it with the opening in the slot bracket, cable duct or enclosure and secure it with the two fastening screws. Connect a DisplayPort male cable from the source device to one female end and another DisplayPort male cable from the second female end to the display or target device. Ensure connectors are fully seated to maintain signal quality. Use standard DisplayPort cables on both sides for device connections.

Recommendations

For best performance, use certified DisplayPort cables for the device-to-panel connections and avoid sharp bends or heavy pressure on the cable near the connectors. Check that connected devices support DisplayPort 1.2 to achieve 4K@60 Hz.
