Cable DisplayPort conector hembra a hembra para montaje en panel DeLOCK 87103 3 m

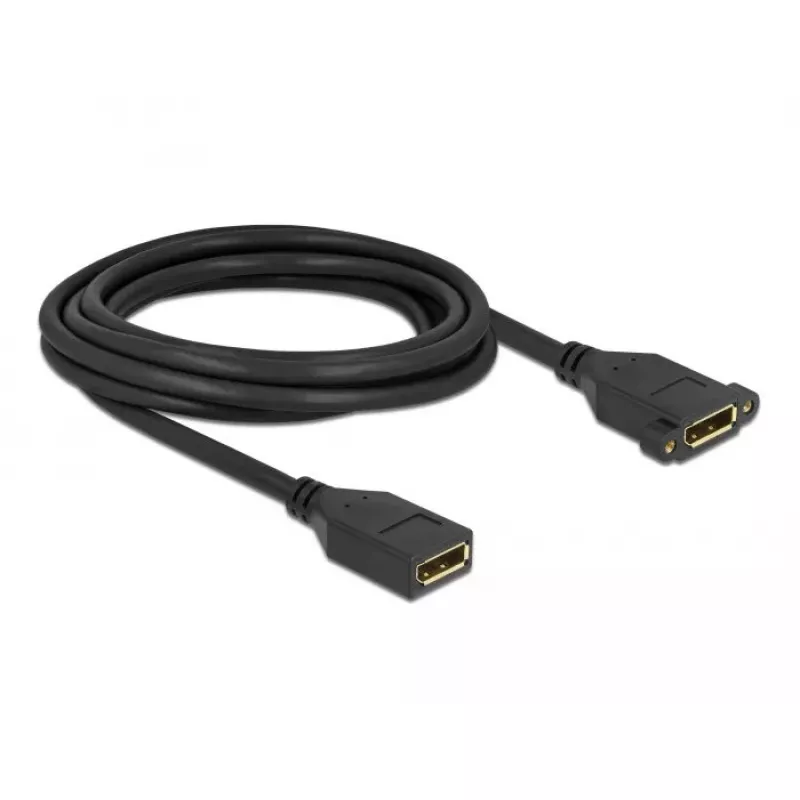

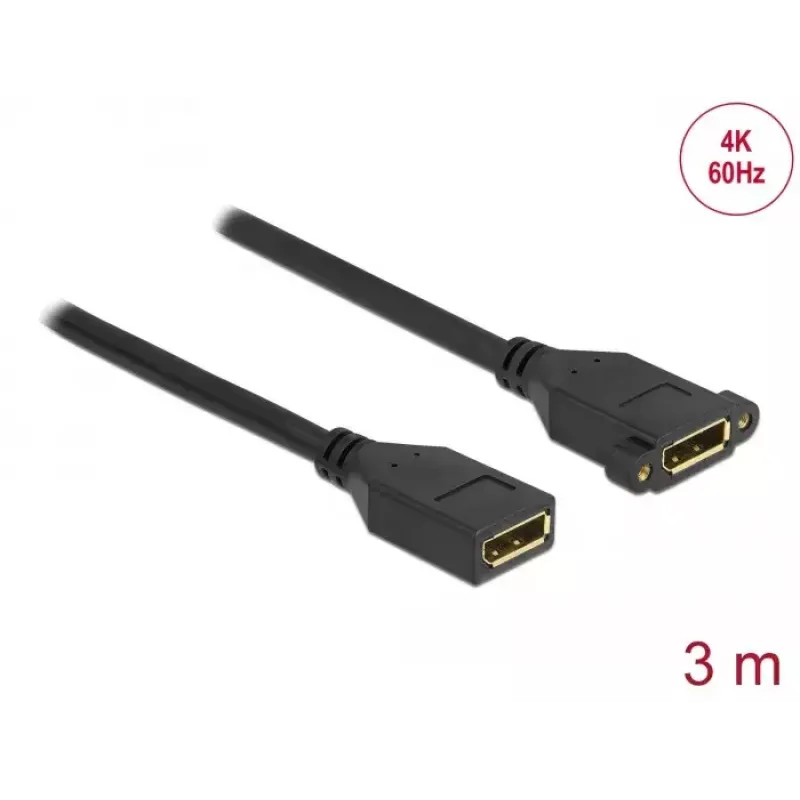

This Delock DisplayPort cable female-to-female panel-mount is designed to extend a DisplayPort connection and to place a DisplayPort connector in an accessible position. The cable supports DisplayPort 1.2 and 4K resolution at 60 Hz. The female port can be secured with two screws to a slot bracket, cable duct or enclosure with a matching opening. Cable length: 3 m, diameter approximately 7 mm, colour: black.

Advantages

The panel-mount female DisplayPort connector allows fixed installation in racks, panels or enclosures while the 3 m cable provides a flexible connection to devices. Support for DisplayPort 1.2 ensures transmission of high-definition video and audio, including 4K at 60 Hz. The screw-fastening of the female port provides a stable, vibration-resistant connection suitable for professional and technical environments.

Suitable for

• Extending a DisplayPort connection through a rack or panel
• Installing a DisplayPort socket on a slot bracket or enclosure
• Connecting monitors, graphics cards and docking stations where a fixed port position is needed

Key specifications

• Brand: DELOCK
• Model / MPN: 87103
• EAN: 4043619871032
• Connector: DisplayPort female to DisplayPort female (panel-mount)
• Standard: DisplayPort 1.2
• Resolution support: up to 4K @ 60 Hz
• Cable length: 3 m
• Colour: Black
• Cable diameter: approx. 7 mm
• Quantity per pack: 1 pc

How to use

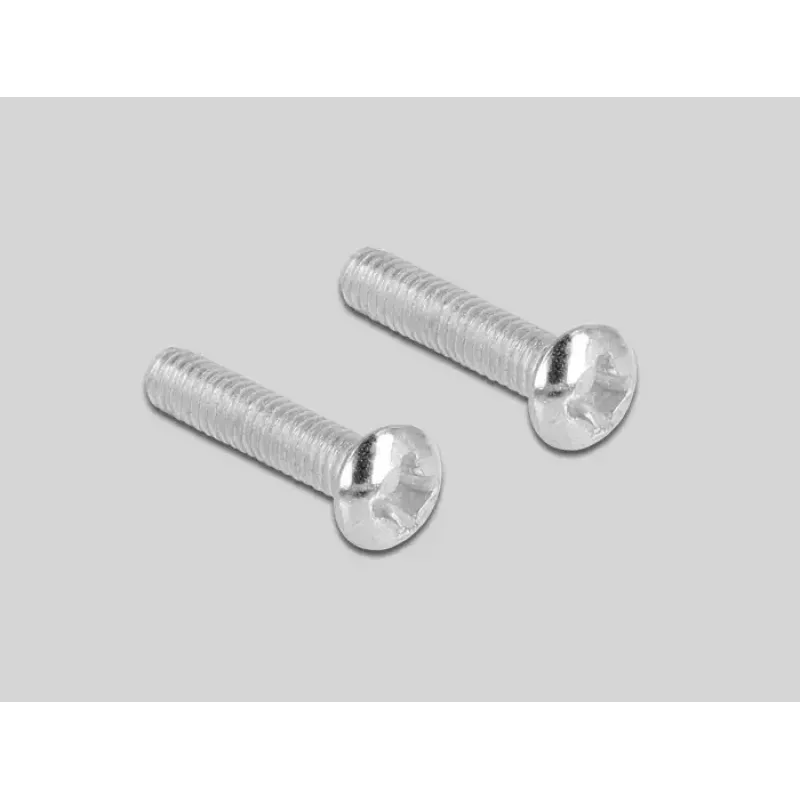

Place the female panel-mount DisplayPort connector into a prepared opening of a slot bracket, cable duct or enclosure and secure it using the two screw points. Connect a DisplayPort male plug from a source device (for example a graphics card or docking station) to one side and a DisplayPort cable or device to the other side to extend the connection. Ensure connectors are aligned before tightening the screws to avoid strain on the cable.

Recommendations

For reliable 4K@60Hz performance, use DisplayPort 1.2 compatible source and display devices and avoid excessively long daisy-chained connections. Mount the panel connector on a stable surface and do not bend the cable sharply near the connector to prolong service life.
