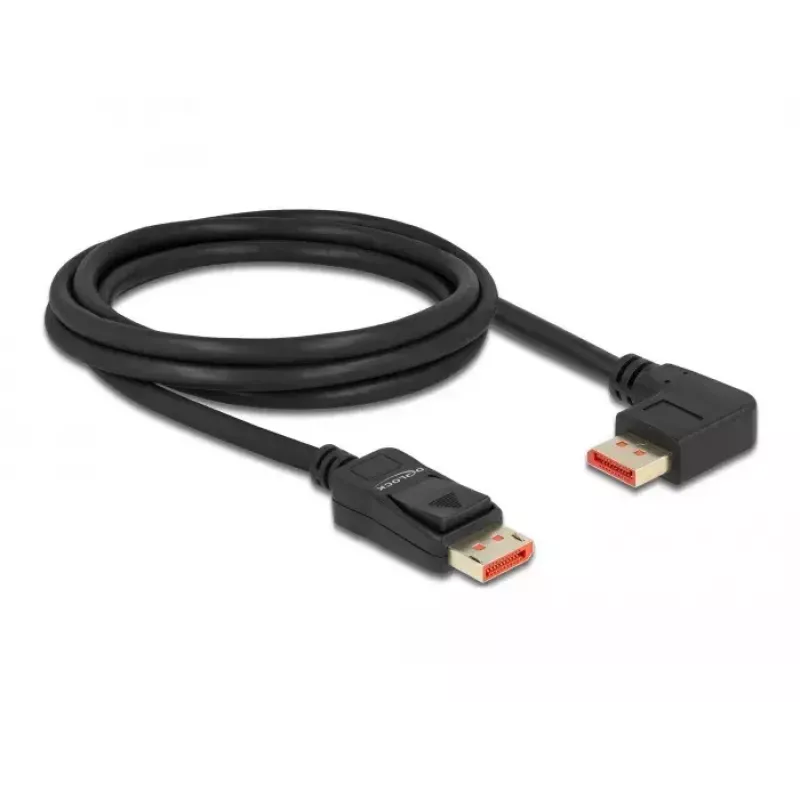

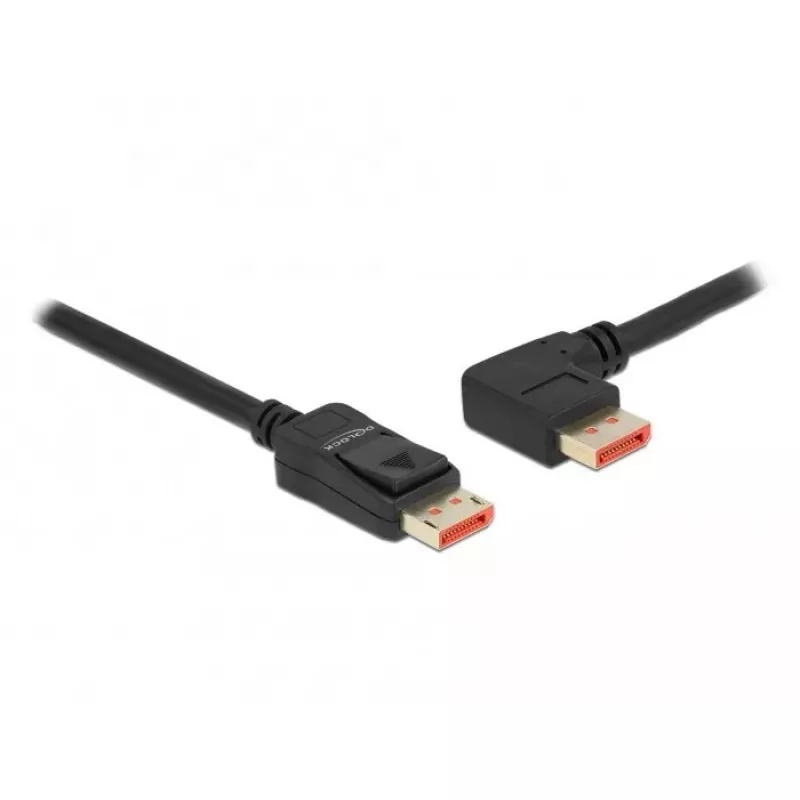

Cable DisplayPort DeLOCK 8K 60 Hz 2 m conector macho recto a conector macho 90° acodado a la izquierda

This DisplayPort cable by Delock connects devices with a DisplayPort interface—such as monitors, projectors or televisions—to a PC or laptop. It has a 2 m length and combines a male straight connector with a male 90° left-angled connector, which helps when connecting devices in tight spaces. The cable supports a maximum bandwidth of 32.4 Gb/s and enables video up to 8K Ultra HD (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz). The triple-shielded design and quality construction also support improved audio transmission with sampling rates up to 1536 kHz.

Advantages

The cable offers high-resolution video support up to 8K at 60 Hz and a bandwidth of 32.4 Gb/s, a 90° left-angled DisplayPort connector for space-saving installations, and a 2 m length suitable for typical desktop and AV setups. Its triple shielding reduces interference and helps maintain stable audio and video signals. The black jacket and 7 mm diameter provide a compact, robust cable suited for professional and home environments.

Suitable for

• Connecting a PC or laptop to a monitor, projector or TV with DisplayPort
• Setups with limited space behind devices where a left-angled connector is needed
• High-resolution video applications up to 8K@60 Hz and high-sample-rate audio transmission

Key specifications

• Brand: DELOCK
• Model / MPN: 87046
• EAN: 4043619870462
• Connector 1: DisplayPort (male, straight)
• Connector 2: DisplayPort (male, 90° left angled)
• Cable length: 2 m
• Cable diameter: 7 mm
• Colour: Black
• Maximum bandwidth: 32.4 Gb/s
• Supported resolutions: up to 8K (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz), 4K (3840 x 2160 @ 240 Hz)
• Audio sampling rate support: up to 1536 kHz

How to use

Connect the straight DisplayPort male connector to the DisplayPort output of your PC or laptop and insert the 90° left-angled DisplayPort male connector into the DisplayPort input of your monitor, projector or TV. Ensure both connectors are fully seated in their ports. Configure the display resolution and refresh rate in your operating system or graphics driver to match the desired supported setting (for example 8K@60 Hz). Route the cable so it is not pinched or sharply bent; the angled connector can help reduce stress behind devices placed close to a wall.

Recommendations

For best performance, use compatible DisplayPort-enabled devices and update your graphics drivers. Avoid excessive bending near the connector and keep the cable free from strong electromagnetic sources to minimize interference.
