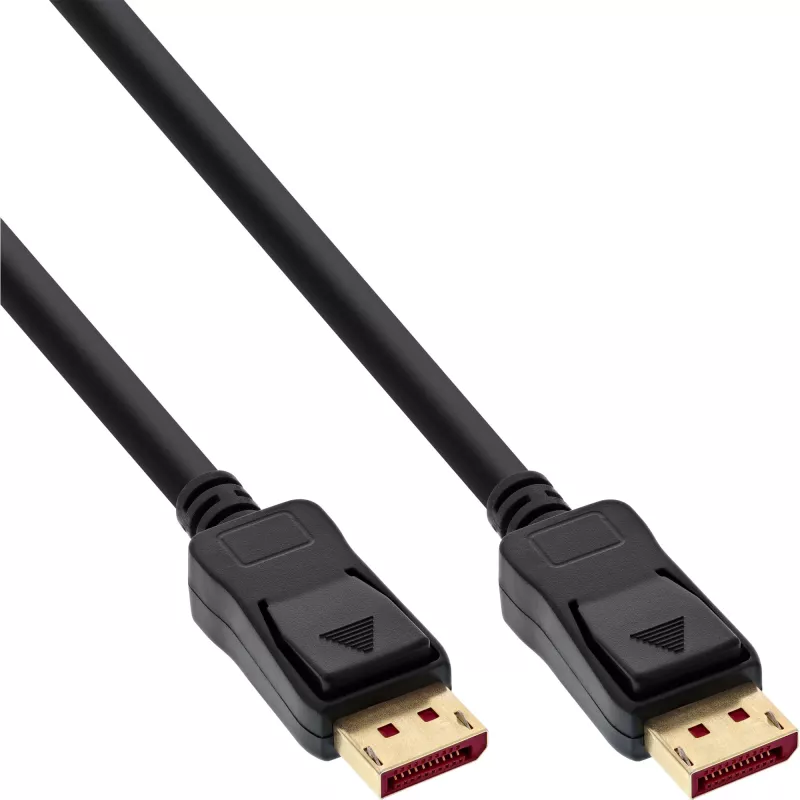

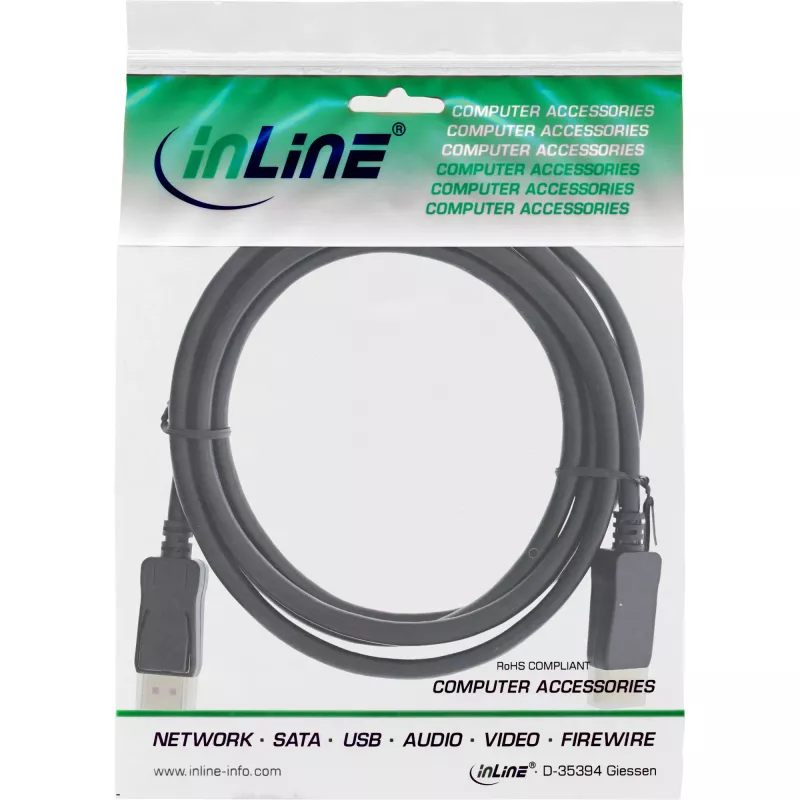

Cable DisplayPort InLine 15303 3 m negro DisplayPort a DisplayPort

High transmission quality up to 8K:Supports resolutions up to 7680×4320 at 60 Hz – ideal for demanding AV applications.
Future-proof specification:Compatible with DisplayPort 1.4 including HDR, DSC 1.2 and MST for modern multi-monitor setups.
Reliable signal stability:Thanks to high-quality workmanship with gold-plated contacts and robust sheathing.
Backward compatible for maximum flexibility:Also supports older DP versions for versatile use.
Ideal for professional environments:Perfect for conference rooms, control centres, digital workplaces and system integration.

The InLine® DisplayPort 1.4 cable is the reliable solution for professional image and video transmission. It enables a bandwidth of up to 32.4 Gb/s and thus supports resolutions of up to 8K at 60 Hz and 4K at 120 Hz. This makes it ideal for demanding AV applications in companies, educational institutions or control centres.
Gold-plated contacts ensure optimum conductivity and reliable protection against corrosion, even with frequent use. The solid workmanship ensures high durability, even with intensive use. Thanks to Display Stream Compression (DSC) 1.2, High Dynamic Range (HDR) and Multi-Stream Transport (MST), the cable is ideally designed for modern systems. Backward compatibility with older DisplayPort versions allows seamless integration into existing infrastructures.
System houses, IT service providers and installers benefit from the easy handling and high operational reliability. The InLine® DisplayPort 1.4 cable is therefore the ideal choice for professional applications in digital signage, conference rooms or for multi-monitor setups in modern working environments.

Standard: DisplayPort 1.4
Max. resolution: 8K@60 Hz / 4K@120 Hz
Bandwidth: 32.4 Gb/s
Features: HDR, DSC 1.2, MST
Backward compatible with: DP 1.3 / 1.2 / 1.1
Contact material: Gold-plated
Colour: Black
Connector: DisplayPort (male to male)

InLine 15303. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, TÜV mark. Cable diameter: 6 mm, Weight: 145 g. Package width: 175 mm, Package depth: 160 mm, Package height: 25 mm. Country of origin: Taiwan

How to use

Connect one DisplayPort connector to the source device (for example a PC graphics card) and the other connector to the DisplayPort input on the monitor or compatible display. Ensure connectors are fully inserted until the latch clicks. Configure display settings on your operating system or graphics driver to select the desired resolution and refresh rate supported by both devices.

Recommendations

For best performance, use the cable in environments where both source and display support DisplayPort 1.4 features. Avoid sharp bends and excessive pulling; route the cable away from strong electromagnetic sources. If using MST for multiple displays, verify the total bandwidth requirements of all connected monitors.
