Cable DisplayPort InLine 17205W, DisplayPort–DisplayPort, 5 m, blanco, Ø7 mm

High resolution support for modern workplaces:Transmits razor-sharp images with up to 7680x4320 pixels at 60Hz – ideal for CAD, video editing, or presentation technology.
Reliable signal quality thanks to triple shielding:The robust cable construction effectively protects against electromagnetic interference – for a stable and secure connection.
Long-term investment security:With DisplayPort 1.4 specification, HDR support, and 8K compatibility, the cable meets the highest technical standards.
Professional workmanship with gold-plated contacts:Reduces contact resistance and extends service life with frequent reconnection – particularly important in changing system environments.
Universally applicable in IT and digital signage:Reliably connects PCs, workstations, monitors, and large displays in professional applications.

The InLine® DisplayPort 1.4 cable series offers a professional connection solution for demanding AV installations in office, technical, and industrial environments. It supports the transmission of image content in Ultra High Definition with a resolution of up to 7680x4320 (8K@60Hz) as well as 4K content with high refresh rates of up to 120Hz. Thanks to support for HDR, RGB/4:4:4, 4:2:2, and 12-bit color depths, the cable delivers excellent image quality and high compatibility.
The triple-shielded design effectively protects against external interference and enables reliable data transmission—ideal for multi-monitor setups, digital signage solutions, or control rooms. Gold-plated contacts ensure durable, stable connections—even with frequent changes of connected devices. The series is ideal for a wide range of installation scenarios, both stationary and mobile.

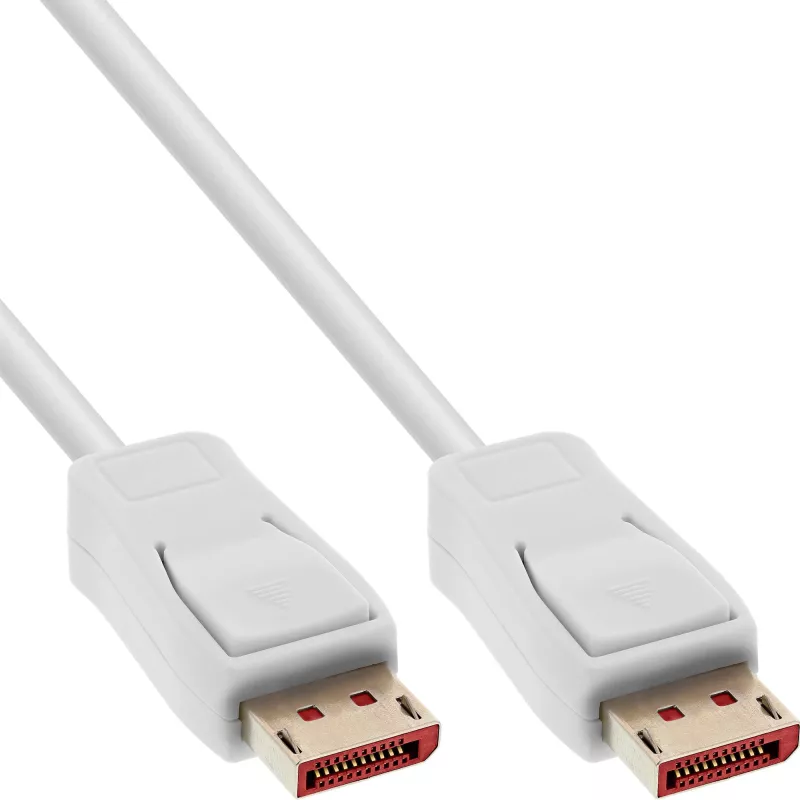

DisplayPort connector to DisplayPort connector
DisplayPort version: 1.4
Supported resolutions: FUHD 7680x4320 8K@60Hz, UHD 3840x2160 120HZ RGB/4:4:4 8bit HDR OFF, UHD 3840x2160 120HZ RGB/4:2:2 12bit HDR ON, UHD 3840x2160 60HZ RGB/4:4:4 12bit HDR ON, FullHD 1920x1080
Shielding: triple shielded
Color: white
Contacts: gold-plated
Packaging: PE bag with EAN code

InLine 17205W. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, TÜV mark, UL. Cable diameter: 7 mm, Weight: 300 g. Package width: 180 mm, Package depth: 240 mm, Package height: 40 mm. Quantity per pack: 1 pc(s)

How to use

Connect one DisplayPort plug to the source device (PC, workstation or media player) and the other to the DisplayPort input of the monitor or display. Ensure both devices support the chosen resolution and refresh rate in their display settings. For HDR or high-bit-depth modes, enable the corresponding options in the graphics driver and display menus. Avoid sharp bends and excessive tension in the cable during installation to maintain shielding effectiveness and connector life.

Recommendations

For multi-monitor setups or professional AV installations, verify cable lengths and connector accessibility before installation. Use ports and graphics hardware that support DisplayPort 1.4 and the desired HDR/chroma settings to achieve the specified resolutions and refresh rates.
