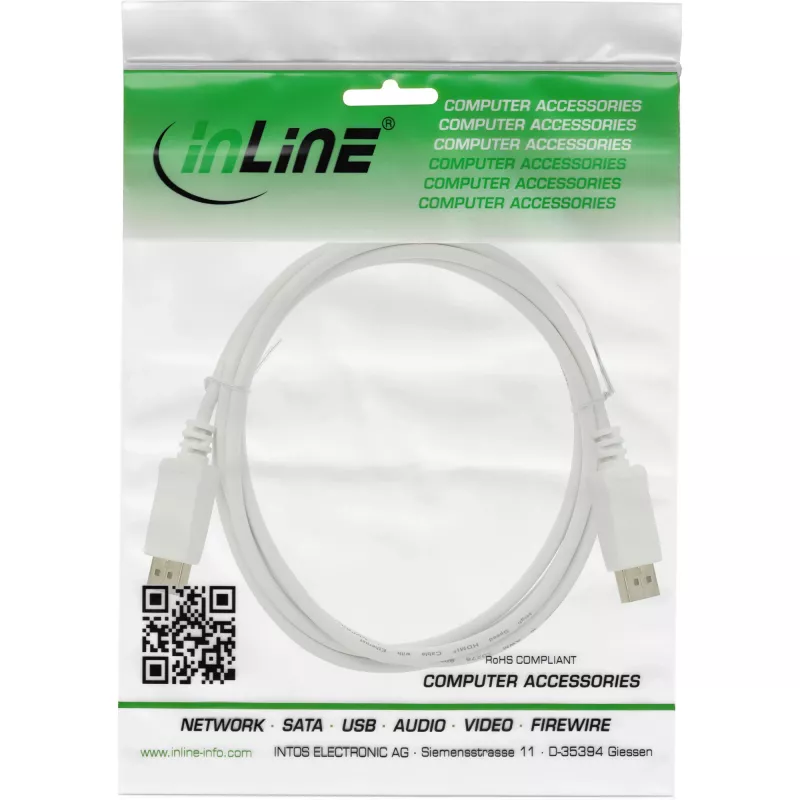

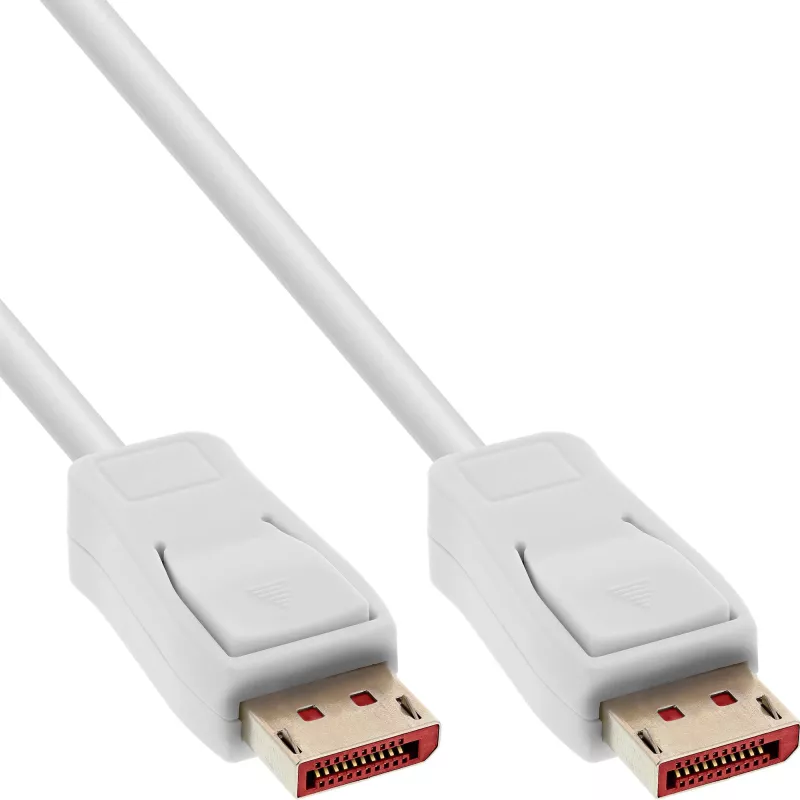

Cable DisplayPort InLine 17255W, 0,5 m, DisplayPort–DisplayPort, blanco

High resolution support for modern workplaces:Transmits razor-sharp images with up to 7680x4320 pixels at 60Hz – ideal for CAD, video editing, or presentation technology.
Reliable signal quality thanks to triple shielding:The robust cable construction effectively protects against electromagnetic interference – for a stable and secure connection.
Long-term investment security:With DisplayPort 1.4 specification, HDR support, and 8K compatibility, the cable meets the highest technical standards.
Professional workmanship with gold-plated contacts:Reduces contact resistance and extends service life with frequent reconnection – particularly important in changing system environments.
Universally applicable in IT and digital signage:Reliably connects PCs, workstations, monitors, and large displays in professional applications.

The InLine® DisplayPort 1.4 cable series offers a professional connection solution for demanding AV installations in office, technical, and industrial environments. It supports the transmission of image content in Ultra High Definition with a resolution of up to 7680x4320 (8K@60Hz) as well as 4K content with high refresh rates of up to 120Hz. Thanks to support for HDR, RGB/4:4:4, 4:2:2, and 12-bit color depths, the cable delivers excellent image quality and high compatibility.
The triple-shielded design effectively protects against external interference and enables reliable data transmission—ideal for multi-monitor setups, digital signage solutions, or control rooms. Gold-plated contacts ensure durable, stable connections—even with frequent changes of connected devices. The series is ideal for a wide range of installation scenarios, both stationary and mobile.

DisplayPort connector to DisplayPort connector
DisplayPort version: 1.4
Supported resolutions: FUHD 7680x4320 8K@60Hz, UHD 3840x2160 120HZ RGB/4:4:4 8bit HDR OFF, UHD 3840x2160 120HZ RGB/4:2:2 12bit HDR ON, UHD 3840x2160 60HZ RGB/4:4:4 12bit HDR ON, FullHD 1920x1080
Shielding: triple shielded
Color: white
Contacts: gold-plated
Packaging: PE bag with EAN code

InLine 17255W. Cable length: 0.5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, TÜV mark, UL. Cable diameter: 7 mm, Weight: 48 g. Package width: 150 mm, Package depth: 230 mm, Package height: 30 mm. Quantity per pack: 1 pc(s)

How to use

Connect one DisplayPort male connector to the source device (PC or workstation) and the other DisplayPort male connector to the display or projector. Ensure both devices support the required DisplayPort version and resolution settings. For highest resolutions and HDR, configure the output device and display to matching color depth and refresh rate. Avoid sharp bends near the connector and keep the cable shielded from strong electromagnetic sources for stable signal transmission.

Recommendations

Use this DisplayPort 1.4 cable for professional multi-monitor setups, digital signage or control-room installations where reliable 8K/4K transmission and HDR support are required. Verify device compatibility with DisplayPort 1.4 and select appropriate display settings for optimal image quality.
