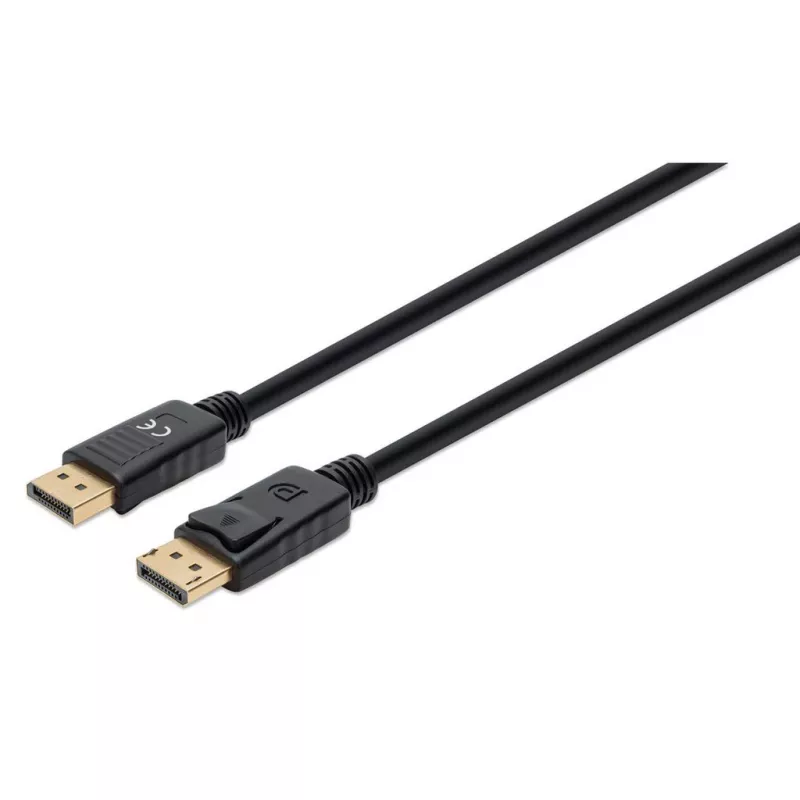

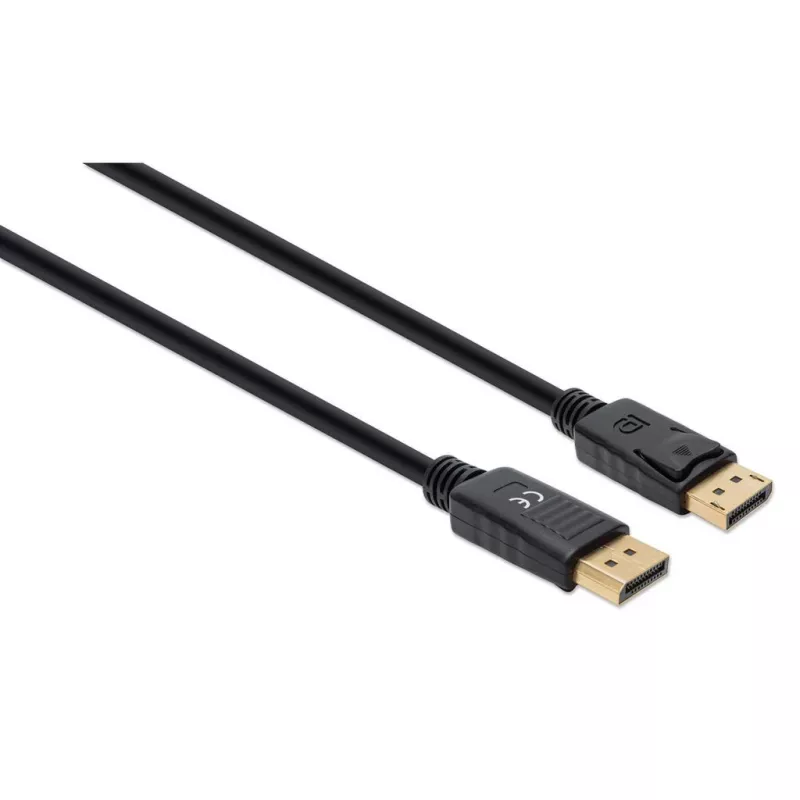

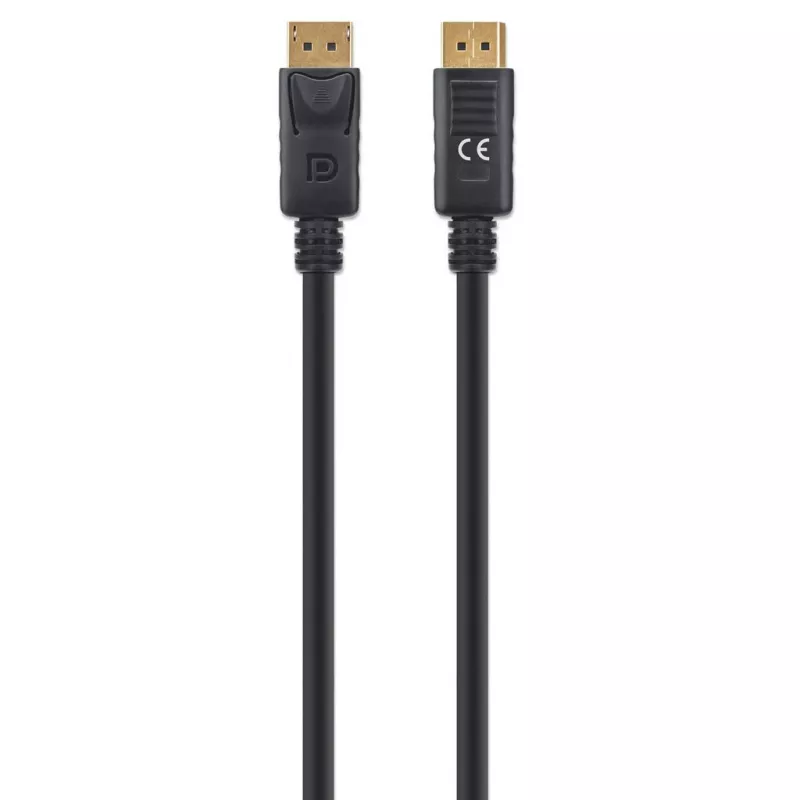

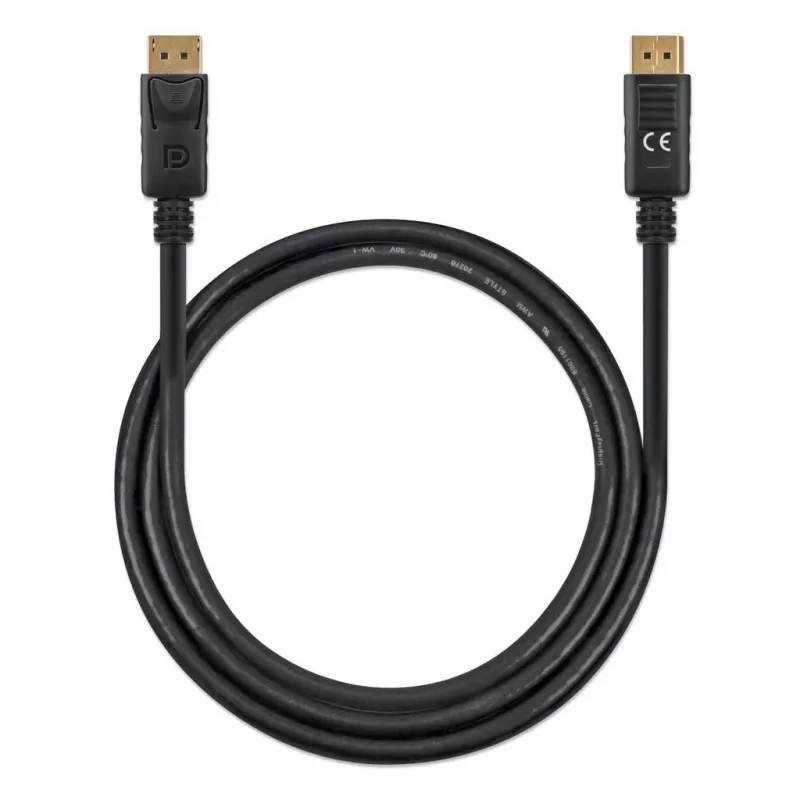

Cable DisplayPort Manhattan DP14MM1M 8K@60Hz 1 m conector macho a conector macho

The Manhattan DisplayPort DP14MM1M is a 1 m DisplayPort 1.4 male-to-male cable designed for high-resolution video and audio connections. It supports up to 8K (7680 x 4320) at 60 Hz and 4K UHD at 120 Hz with HDR, providing compatibility for demanding gaming, digital signage and professional AV setups. The cable includes latching DisplayPort connectors, full shielding and gold-plated contacts for reliable signal transmission.

Advantages

The fully shielded design and triple shielding reduce electromagnetic interference, while the gold-plated contacts improve conductivity and resistance to corrosion. DisplayPort 1.4 bandwidth enables 8K@60Hz and 4K@120Hz with HDR, ensuring high frame rates and accurate color reproduction. The 1 m length and secure latching connectors simplify installation and keep connections stable in desktop and rack-mounted environments.

Suitable for

• High-end gaming PCs and consoles requiring 8K or high-refresh 4K output
• Professional monitors and workstations for photo, video and graphics editing
• Digital signage and AV installations needing reliable, long-duration video delivery
• Home theater systems with 4K/8K-capable sources and displays

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: 8K (7680 x 4320) at 60 Hz; 4K UHD at 120 Hz with HDR
• Length: 1 m

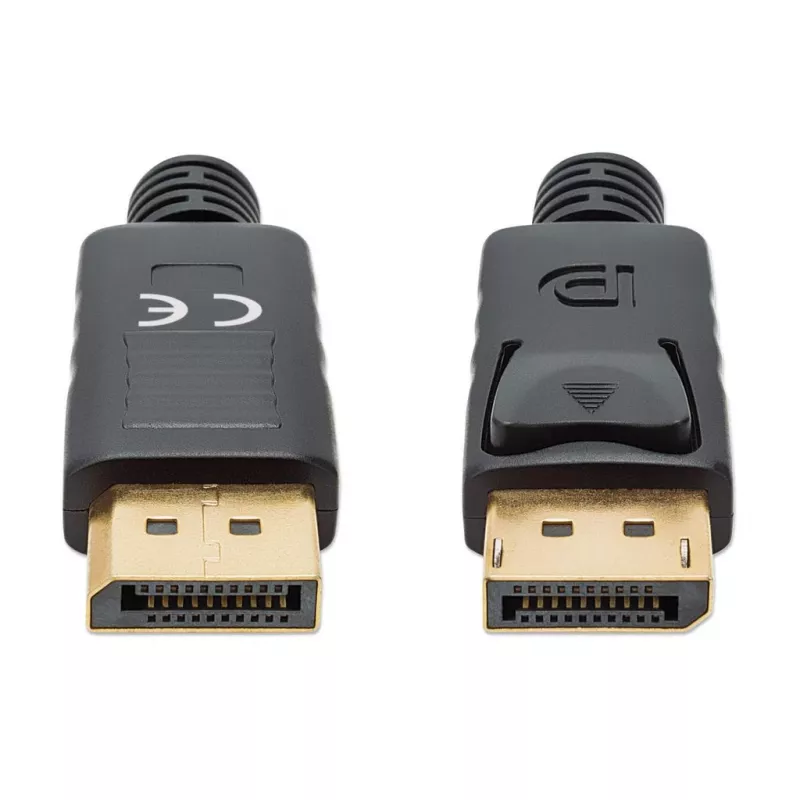

• Connectors: DisplayPort male to DisplayPort male with latches
• Shielding: triple shielding (fully shielded)
• Contacts: gold-plated
• Colour: Black
• Weight: 0.069 kg
• Certifications: CE, RoHS

How to use

Connect one DisplayPort male connector to the source device (PC, graphics card, console or media player) and the other to the DisplayPort input on the monitor or display. Ensure the latch clicks into place on both ends to secure the connection. For best results, avoid sharp bends or kinks in the cable and route it away from high-power cables to minimise potential interference. Configure the source device display settings to the desired resolution and refresh rate supported by both the display and the cable.

Recommendations

Use the cable for direct connections between compatible DisplayPort 1.4 devices. For long cable runs or installations that require extended reach, consider active or certified fibre solutions. Keep firmware and GPU drivers up to date to ensure proper recognition of 8K and high-refresh modes.
