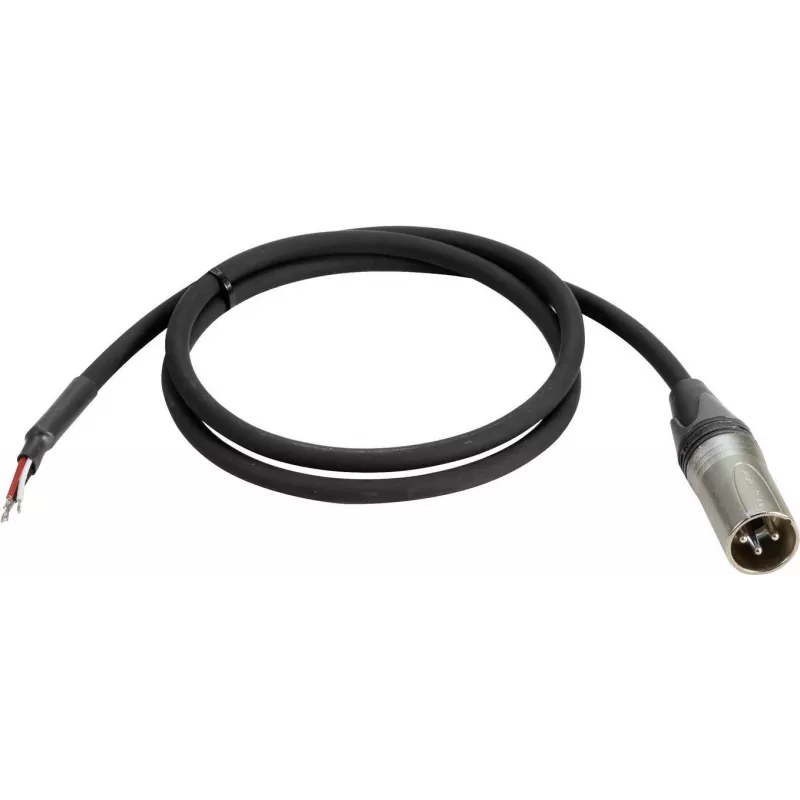

Cable DMX de 3 pines PSSO 30227838 con conector macho de 3 pines y extremos abiertos

Professional DMX cable PSSO 30227838 is designed to transmit DMX512 control signals for lighting installations, stage systems and event setups. The assembly features a 3-pin male connector on one end and open cable cores on the other, allowing technicians to create custom terminations or extend DMX runs to the exact length required. This cable is intended for use in low-voltage control circuits where reliable digital signal transmission and flexible wiring are necessary.

Advantages

The cable combines a standard 3-pin male DMX connector with open ends to offer straightforward wiring flexibility during installation and maintenance. Its construction supports consistent signal integrity for DMX512 protocols when properly terminated and shielded at endpoints. Open cable ends simplify integration with fixtures, terminal blocks or custom connector assemblies, reducing the need for additional adapters during onsite modifications.

Suitable for

Key specifications

How to use

Connect the 3-pin male DMX connector to the controller or upstream device, then terminate the open cable ends to the fixture or downstream connector following DMX wiring conventions. Ensure correct pin mapping and maintain proper polarity across the signal pair; install a termination resistor at the end of the DMX line when the cable forms the final device in the chain. Avoid routing the cable parallel to mains power to reduce interference and secure connections to prevent intermittent contacts during movement or load changes.

Recommendations

When installing the PSSO DMX cable with open ends, verify pin assignments before powering the system, use proper DMX termination at the chain's end, and protect exposed cable joints with appropriate strain relief and insulation to preserve signal quality and safety.
