Cable DSIT DANICOM CAT5E UTP 305m conductor macizo LSZH (Eca) DC-UTP5E-305S-ECA

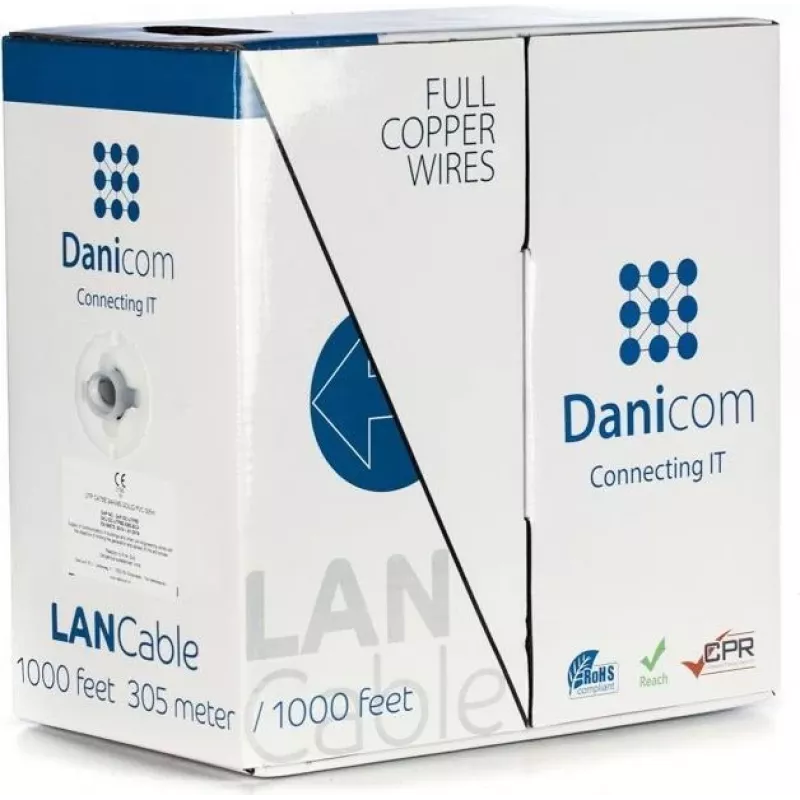

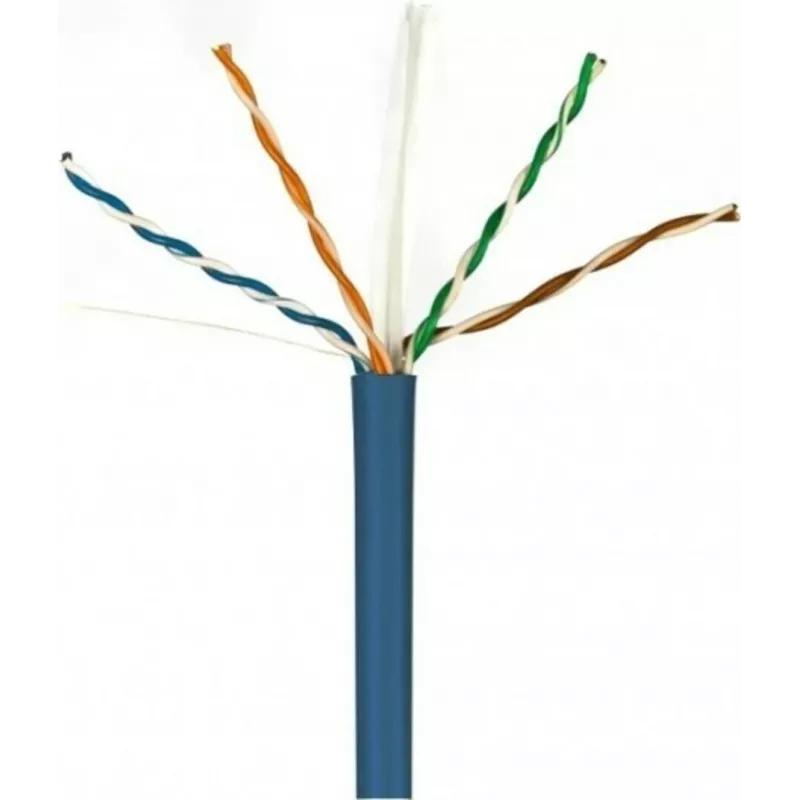

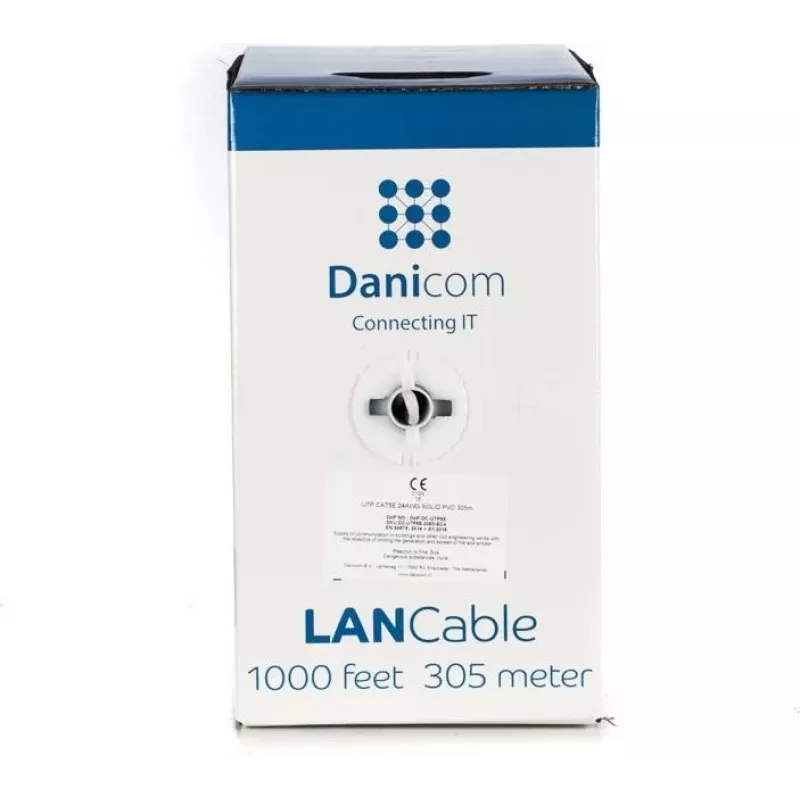

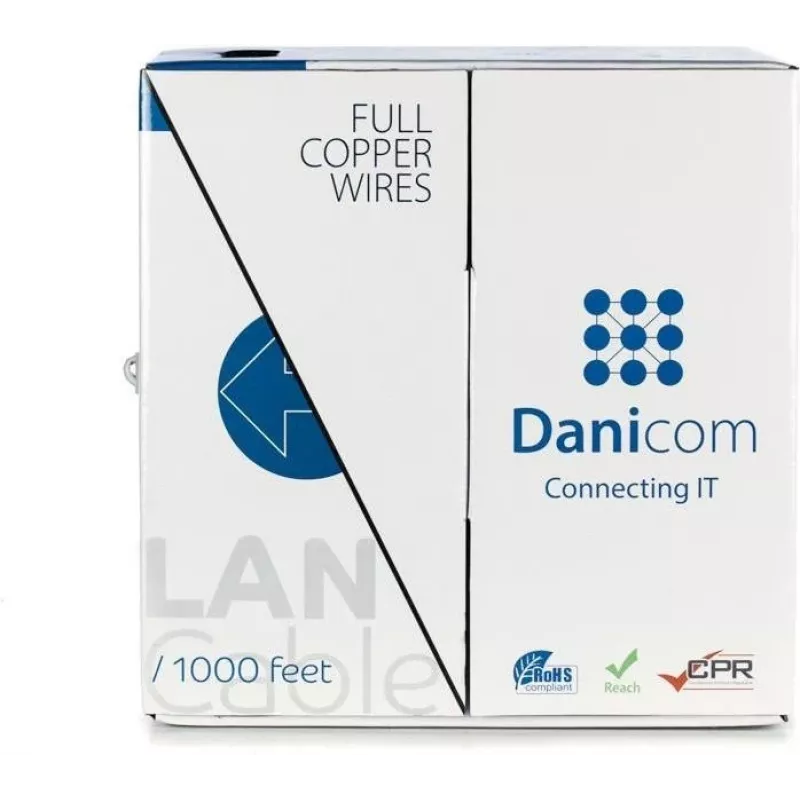

Cat5e UTP bulk cable with solid bare copper conductors, supplied in a 305-meter pull-box. Its LSZH jacket meets the Eca fire rating, making it suitable for permanent installations where low smoke and halogen-free performance is required.

Advantages

Solid core conductors provide stable performance for fixed horizontal cabling. The LSZH jacket reduces smoke and toxic emissions in case of fire. The Eca classification confirms compliance with European fire safety requirements.

Suitable for

• Structured cabling in office and residential buildings
• Gigabit Ethernet (1000BASE-T) horizontal runs
• Installations requiring low smoke zero halogen materials

Key specifications

• Category: Cat5e
• Cable type: UTP (Unshielded Twisted Pair)
• Conductor: Solid bare copper, 24 AWG
• Length: 305 m
• Jacket: LSZH, Eca fire rating
• Bandwidth: 100 MHz
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

Verify local building codes for Eca cable usage. Terminate with Cat5e-compatible connectors and maintain pair twists to ensure performance.
