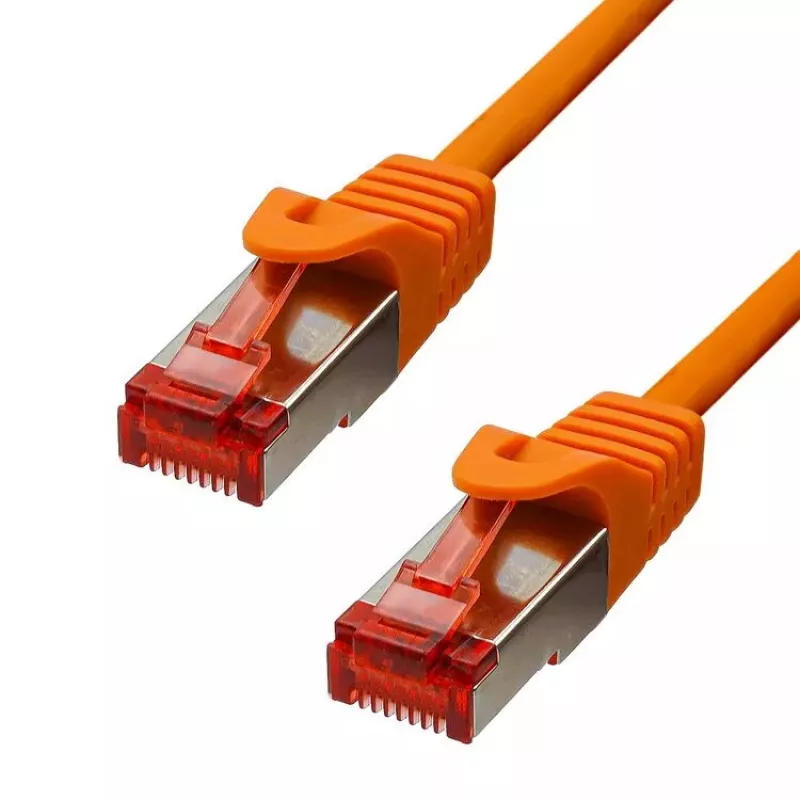

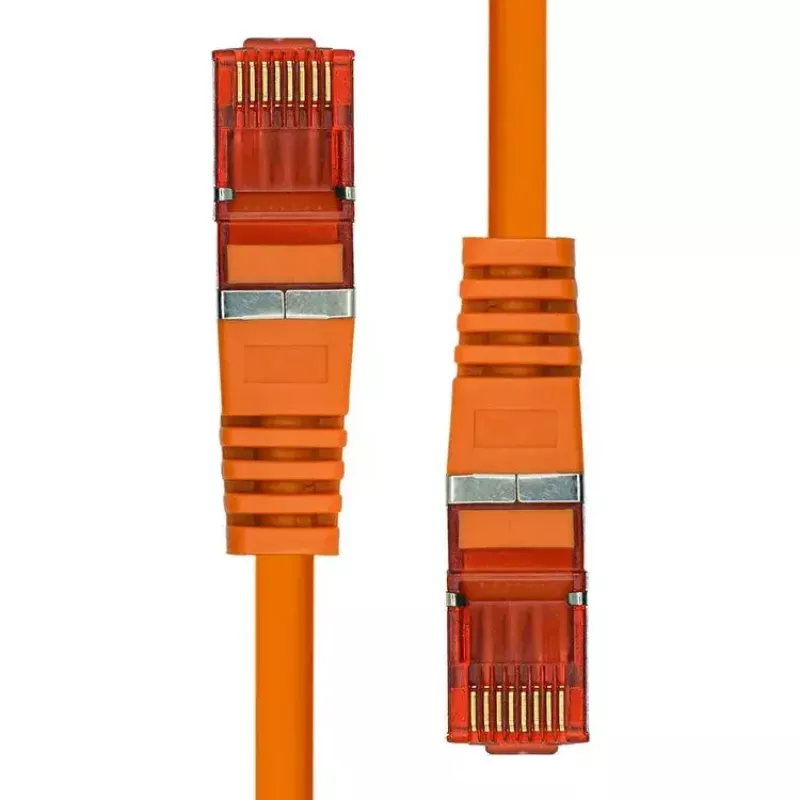

Cable Ethernet ProXtend CAT6 RJ-45 5 m naranja

The ProXtend Ethernet Cable CAT6 F/UTP CU LSZH (5 m, Orange) is manufactured with 99.9% pure copper conductors at 26 AWG and features F/UTP foil shielding and LSZH outer jacket. It provides Gigabit Ethernet (10/100/1000Base-T) performance, supports PoE+, and uses RJ-45 connectors with 50µ"U gold plating for improved contact durability and transmission quality. The orange jacket makes the cable easy to identify in installations.

Advantages

The cable's 99.9% pure copper strands and 26 AWG construction deliver stable signal transmission and low attenuation over the 5 m length. F/UTP foil shielding reduces electromagnetic interference (EMI) for a more reliable connection in electrically noisy environments. The LSZH jacket minimises smoke and toxic emissions in case of fire, and the reinforced strain relief with a snagless latch protector increases durability and simplifies secure connector insertion. Gold-plated RJ-45 contacts provide improved corrosion resistance and consistent contact quality.

Suitable for

• Wired home and office networks requiring Gigabit (1000 Mbit/s) connectivity
• PoE+ powered devices such as access points, IP cameras, and VoIP phones
• Structured cabling runs where reduced smoke emission is required (LSZH)
• Environments with potential electromagnetic interference where foil shielding is beneficial

Key specifications

• Length: 5 m
• Cable category: CAT6 F/UTP CU
• Conductor: 99.9% pure copper, 26 AWG
• Shielding: F/UTP (foil shield)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ-45 to RJ-45, 50µ"U gold plated contacts
• Data rate: up to 1000 Mbit/s (10/100/1000Base-T)
• Supports: PoE+
• Colour: Orange

How to use

Connect one RJ-45 end to your network device (switch, router or patch panel) and the other end to the target device (computer, IP camera, access point or VoIP phone). Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable avoiding sharp bends and strong tensile loads; use cable management accessories where appropriate. For structured installations, label both ends to match your network documentation.

Recommendations

For best performance, avoid running this F/UTP cable in parallel with high-voltage power lines for long distances and maintain bend radius greater than four times the cable diameter. Use LSZH cabling in areas where reduced smoke and toxic gas emission is required by local regulations or safety policies.
