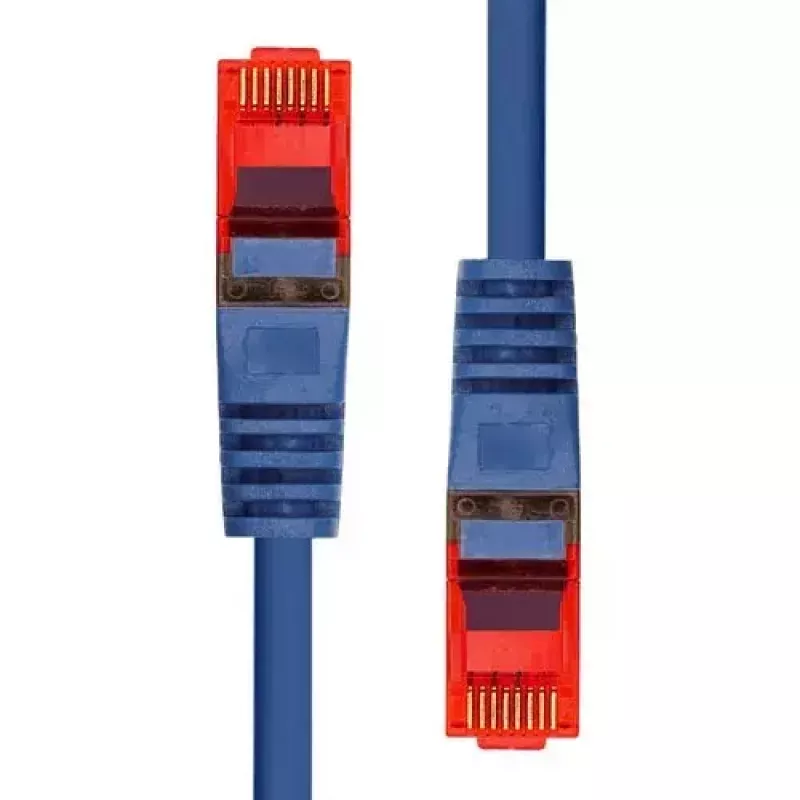

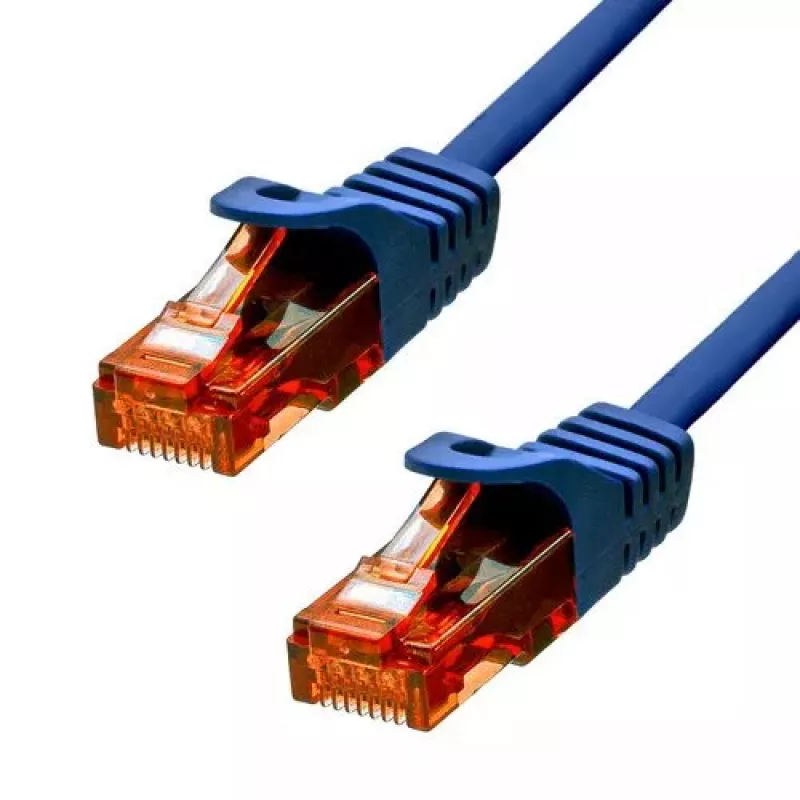

Cable Ethernet ProXtend CAT6 RJ-45 U/UTP 20M azul

The ProXtend CAT6 U/UTP CU LSZH Ethernet Cable, 20 m, with RJ-45 connectors provides reliable gigabit connectivity for home and office networks. Constructed from 99.9% pure copper strands with 24 AWG, the cable is designed for consistent performance. The LSZH outer jacket reduces smoke and toxic emissions in case of fire. Connectors are plated with 50µ"U gold for improved durability and signal transmission. The cable supports PoE+ and 10/100/1000Base-T(X) networks.

Advantages

This CAT6 U/UTP cable uses high-purity copper conductors and 24 AWG size to maintain stable data rates up to 1000 Mbit/s. The LSZH jacket minimizes smoke and halogen release in emergencies. Gold-plated RJ-45 contacts (50µ"U) increase contact durability and signal quality, while the snagless latch and strain relief improve mechanical reliability during installation and everyday use.

Suitable for

• Gigabit Ethernet connections (10/100/1000Base-T)
• PoE and PoE+ powered devices (IP cameras, VoIP phones, access points)
• Office and home network cabling over a 20 m run
• Environments where low-smoke, zero-halogen jacket is required

Key specifications

• Length: 20 m
• Cable type: CAT6 U/UTP CU
• Conductor: 99.9% pure copper, 24 AWG
• Connectors: RJ-45 — gold-plated (50µ"U)
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Standards: 10/100/1000Base-T(X)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Color: Blue

How to use

Route the cable between network devices ensuring no sharp bends and avoid running parallel to power lines to reduce interference. Insert RJ-45 plugs firmly into device ports until the latch clicks. Use the snagless latch protection when pulling the cable through conduits or patch panels to prevent damage to the connector. The cable supports direct connection of PoE/PoE+ devices without additional adapters.

Recommendations

For optimal performance, keep runs under recommended maximum lengths for structured cabling, avoid kinking the cable, and ensure connectors are fully seated. In installations requiring fire safety compliance, specify LSZH jacketed cables as used here.
