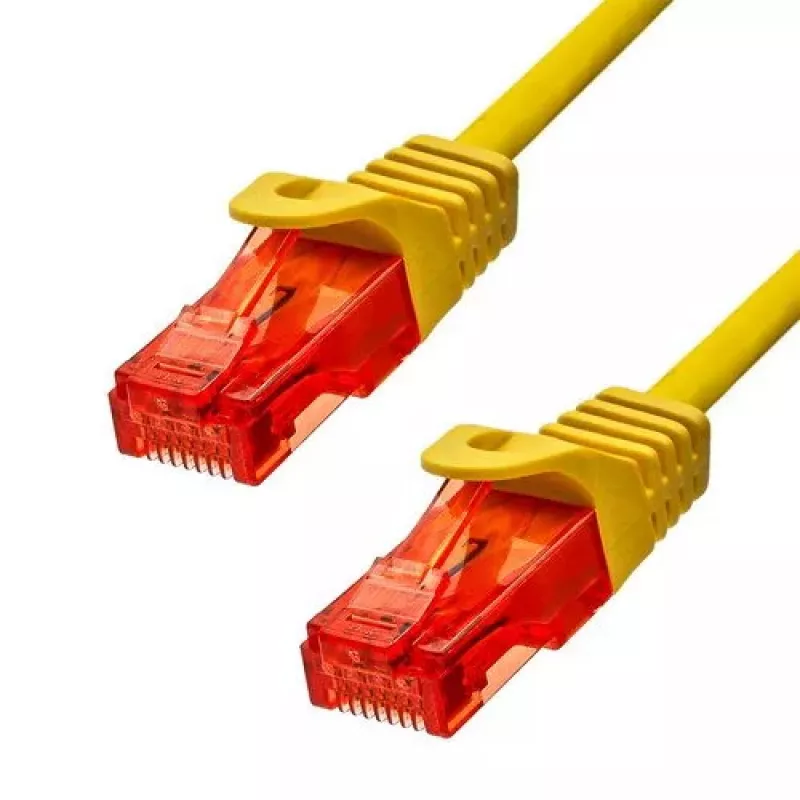

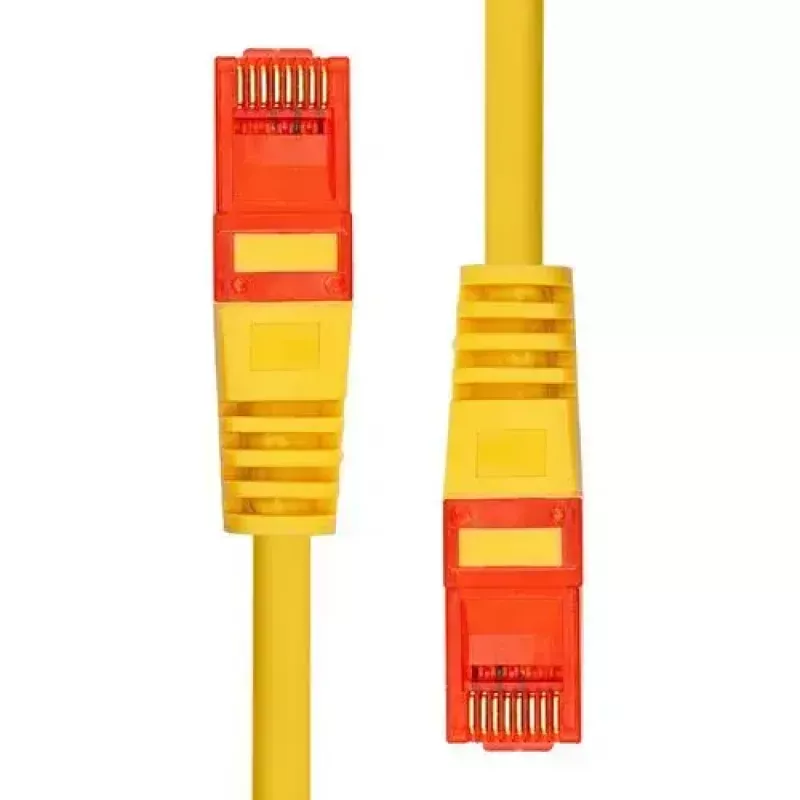

Cable Ethernet ProXtend CAT6 RJ-45 U/UTP 7 m amarillo

The ProXtend CAT6 U/UTP CU ethernet cable is a 7 m LSZH cable with RJ-45 connectors on both ends, designed for 10/100/1000Base-T(X) networks and a data transfer rate up to 1000 Mbit/s. Constructed with 99.9% pure copper strands (AWG 24) and U/UTP unshielded twisted pair configuration, the cable is intended for reliable wired network connections and supports Power over Ethernet Plus (PoE+). The yellow outer jacket and LSZH material reduce smoke and toxic gases in case of fire while making the cable easy to identify in installations.

Advantages

The cable uses 99.9% pure copper conductors and AWG 24 to ensure consistent signal quality and low attenuation. An LSZH outer jacket limits smoke and halogen emissions. Connectors feature 50µ"U" gold plating for improved contact durability and transmission reliability, while a strain relief and a snagless latch protector increase mechanical durability during installation and everyday use. The cable supports PoE+ for powering compatible devices.

Suitable for

• Wired Ethernet connections for desktops, switches and routers
• Office and home networks requiring Gigabit (1000 Mbit/s) connectivity
• Environments where low-smoke, zero-halogen cabling is preferred
• PoE+ powered devices such as IP phones, cameras and access points

Key specifications

• Length: 7 m
• Connector type: RJ-45 — both ends
• Cabling: CAT6 U/UTP (unshielded twisted pair)
• Conductor: 99.9% pure copper, AWG 24
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Contact plating: 50µ"U" gold plated contacts
• Color: Yellow
• Supports: Power over Ethernet Plus (PoE+)

How to use

Connect each RJ-45 connector to the network ports of the devices you intend to link, for example between a router and a switch or between a switch and a computer. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid sharp bends, excessive pulling or crushing; use cable ties or management channels where appropriate to maintain order and protect the jacket and connectors.

Recommendations

For best performance, avoid running the cable parallel to high-voltage power lines and maintain bend radii greater than the cable diameter. Use LSZH cabling in confined or public spaces where reduced smoke and toxic emissions are required. Verify PoE+ compatibility between the power source and connected device before relying on powered operation.
