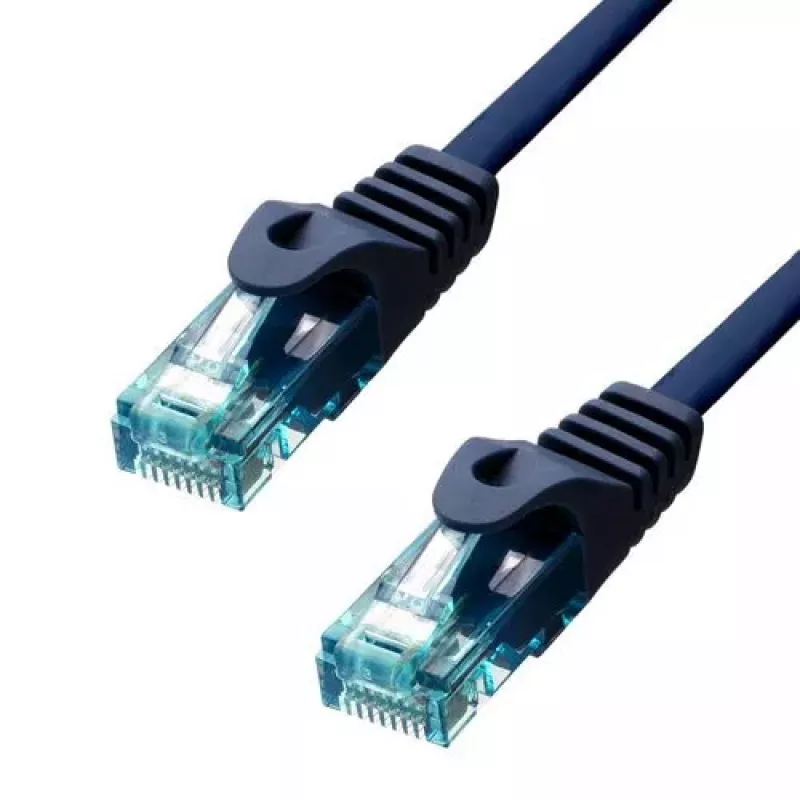

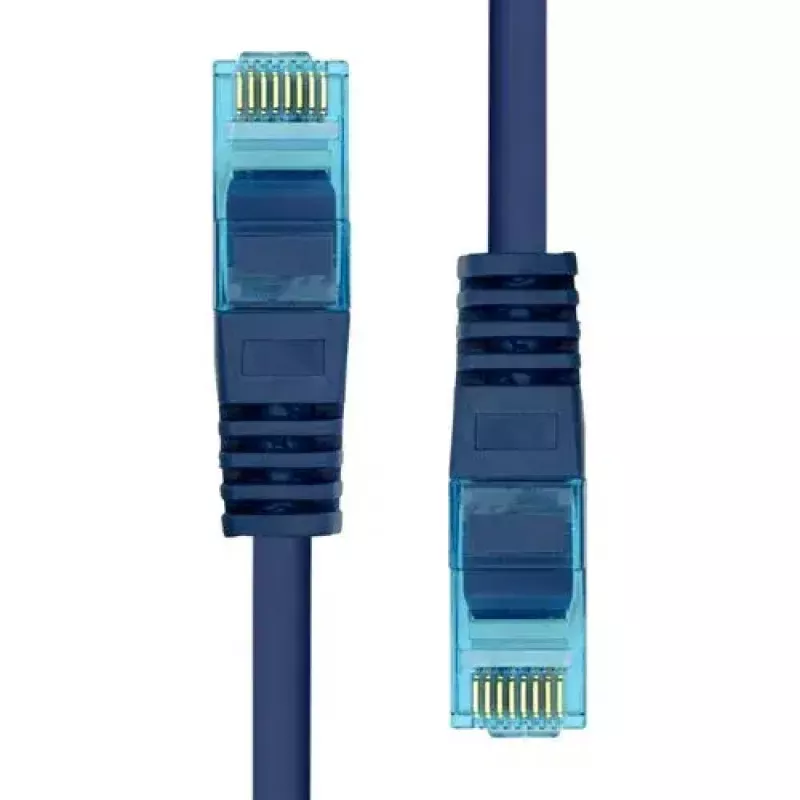

Cable Ethernet ProXtend CAT6A RJ-45 3m azul

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (3 m) is a high-performance network cable designed for data rates up to 10000 Mbit/s. Constructed with 99.9% pure copper strands (24 AWG) and U/UTP cabling technology, the cable minimizes interference while the LSZH outer jacket reduces smoke and toxic fumes in case of fire. The cable comes in blue with RJ-45 connectors plated with 50µ"U gold for improved durability and transmission quality, and supports PoE+ for powered devices.

Advantages

The cable uses 99.9% pure copper conductors and 24 AWG for stable signal transmission and high throughput. LSZH outer jacket lowers smoke and harmful gas emission in hazardous situations. A reinforced strain relief and snagless latch protection increase durability and simplify installation. 50µ"U gold-plated RJ-45 connectors improve corrosion resistance and can deliver higher throughput compared to standard metal plating. The cable supports 10GBase-T standards and PoE+.

Suitable for

• High-speed LAN connections in offices and data centers
• 10GBase-T network segments and backbone links
• Connecting PoE+ devices such as access points and IP cameras
• Home networks requiring low-interference, future-proof cabling

Key specifications

• Length: 3 m
• Conductor: 99.9% pure copper, 24 AWG
• Cabling technology: 10GBase-T (CAT6A), U/UTP
• Connectors: RJ-45 — gold plated (50µ"U)
• Maximum data rate: up to 10000 Mbit/s
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Color: Blue
• Weight: 0.127 kg
• Supports: PoE+

How to use

Connect RJ-45 plugs at both ends to the corresponding Ethernet ports on devices such as switches, routers, network cards or PoE injectors. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable without tight bends or crushing along cable trays or under desks to maintain signal integrity; avoid running parallel and close to high-voltage power lines to reduce interference.

Recommendations

For optimal performance in 10GBase-T applications, keep cable runs within recommended distances for CAT6A cabling and avoid excessive bending near the connector. Use LSZH cabling where reduced smoke and halogen-free behavior is required by building codes or safety policies.
