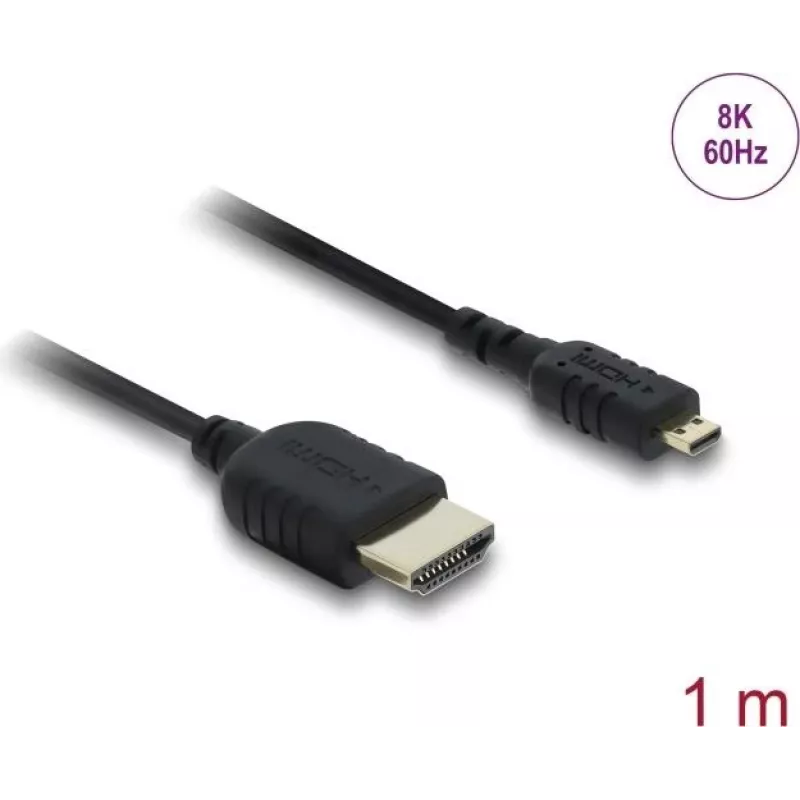

Cable HDMI DELOCK 81690 — 1 m, HDMI Type-A (estándar) a Type-D (Micro), contactos dorados, 48 Gbit/s, 7680×4320, negro

DELOCK 81690 is a 1 m HDMI cable with a standard HDMI Type A male connector and a Micro HDMI Type D male connector. The cable supports a maximum bandwidth of 48 Gbit/s, enabling transmission of video and audio signals up to 7680×4320 @ 60 Hz and a range of high-frame-rate and colour-sampling modes. Gold-plated contacts and triple shielding ensure reliable signal quality for connections between cameras, tablets or other portable devices with Micro HDMI output and monitors, TVs or capture devices.

Advantages

The cable supports high data rates and advanced video features such as Dynamic HDR and Dolby Vision for improved brightness, contrast and colour depth. eARC compatibility enables uncompressed, lossless audio return from a TV to a sound system, and support for high frame rates and VRR makes the cable suitable for gaming and fast-motion content. Small diameter and flexible design simplify routing in compact setups while gold-plated contacts and triple shielding reduce corrosion and interference.

Suitable for

• Connecting cameras or camcorders with Micro HDMI output to TVs or monitors
• Connecting tablets or portable devices with Micro HDMI to external displays
• Feeding capture devices or recorders from portable video sources
• Home cinema setups requiring high-resolution video and lossless audio via eARC
• Gaming displays that use VRR and high refresh rates

Key specifications

• Cable length: 1 m
• Connectors: HDMI Type A (Standard) male to HDMI Type D (Micro) male
• Data transfer rate: up to 48 Gbit/s
• Maximum resolution: 7680×4320 @ 60 Hz (system dependent)
• Supported high-frame-rate modes: up to 3840×2160 @ 240 Hz, 5120×2880 @ 120 Hz (system dependent)
• Audio: eARC support, up to 32 audio channels and up to 1536 kHz sampling rate
• Video features: Dynamic HDR, Dolby Vision, DSC 1.2, 21:9 aspect ratio support, 3D
• Colour sampling: 4:4:4, 4:2:2 and 4:2:0
• Cable construction: triple shielded coaxial, approximately 3.3 mm diameter, 36 AWG
• Contacts: gold-plated
• Colour: black

How to use

Connect the HDMI Type D (Micro) male connector to the Micro HDMI output of your camera, tablet or portable device and insert the HDMI Type A male connector into the HDMI input of the TV, monitor or capture device. Ensure both devices are powered on and select the corresponding HDMI input on the display. If you use a receiver or soundbar with eARC, enable eARC in the TV and audio device settings where applicable. Check device menus for resolution and refresh rate settings to match supported modes.

Recommendations

For best results, keep cable runs within the specified 1 m length to maintain full bandwidth and high-resolution support. Avoid tight bends near the connectors and connect devices while powered off if possible. When using advanced features (e.g. 8K @ 60 Hz, high refresh rates or eARC), verify that connected devices and their firmware support the desired modes.
