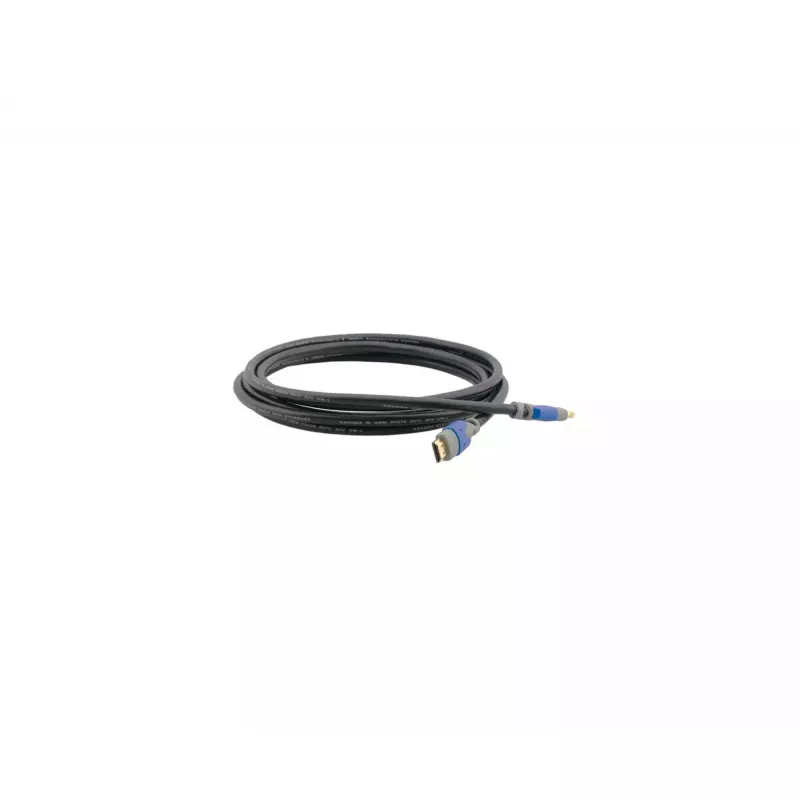

Cable HDMI Kramer Electronics C-HM/HM/PRO-3 0,9 m

The Kramer C-HM/HM/PRO-3 HDMI cable (0.9 m) provides a high-speed wired connection for HD and UHD sources and displays. It features male HDMI Type A connectors on both ends with gold-plated contacts and is designed to deliver reliable digital video and multi-channel audio transmission with a maximum bandwidth of 10.2 Gbit/s and support for resolutions up to 3840 x 2160 pixels.

Advantages

This HDMI cable supports high data transfer rates up to 10.2 Gbit/s and resolutions including 720p, 1080i, 1080p and up to 3840 x 2160. It supports Deep Color (24‑, 30‑, 36‑ and 48‑bit, RGB or YCbCr) for improved color depth, multi‑channel audio streams for external AV receiver decoding and automatic audio sync, gold‑plated connectors for corrosion resistance and optimal signal integrity, and K‑Lock pull‑resistant connectors that provide up to 15 lbs of restraining force to reduce accidental disconnection.

Suitable for

• Connecting Blu‑ray players, PS3/PS4 or other gaming consoles to HDTVs or projectors
• Linking HD/full HD or 4K displays (plasma/LCD) to set‑top boxes and media players
• Home cinema and surround systems requiring multi‑channel audio pass‑through
• Short‑run AV installations where a 0.9 m cable length is sufficient

Key specifications

• Model: Kramer C‑HM/HM/PRO‑3
• Length: 0.9 m
• Connectors: HDMI Type A (male) – both ends
• Maximum bandwidth: 10.2 Gbit/s
• Supported resolutions: up to 3840 x 2160 pixels; also 720p/1080i/1080p
• Color depth: Deep Color 24/30/36/48‑bit (RGB or YCbCr)
• Features: Ethernet support, multi‑channel audio, gold‑plated contacts, K‑Lock pull‑resistant connectors
• Color: Black
• MPN: 97-01114003
• EAN: 7291063043537

How to use

Connect one end of the Kramer C‑HM/HM/PRO‑3 HDMI cable to the HDMI output of the source device (for example a Blu‑ray player, game console or media player) and the other end to the HDMI input of the display or AV receiver. Ensure connectors are fully inserted until the K‑Lock mechanism engages to minimize accidental unplugging. Configure the source and display to the desired resolution and audio output format; the connected devices will negotiate the best supported settings through the HDMI handshake.

Recommendations

For best performance, avoid sharp bends and excessive tension on the cable, keep cable runs short where possible, and ensure HDMI ports are free of dust or debris. Use this 0.9 m cable for close‑proximity connections between AV components; for longer runs choose an appropriately rated cable or active solution.
