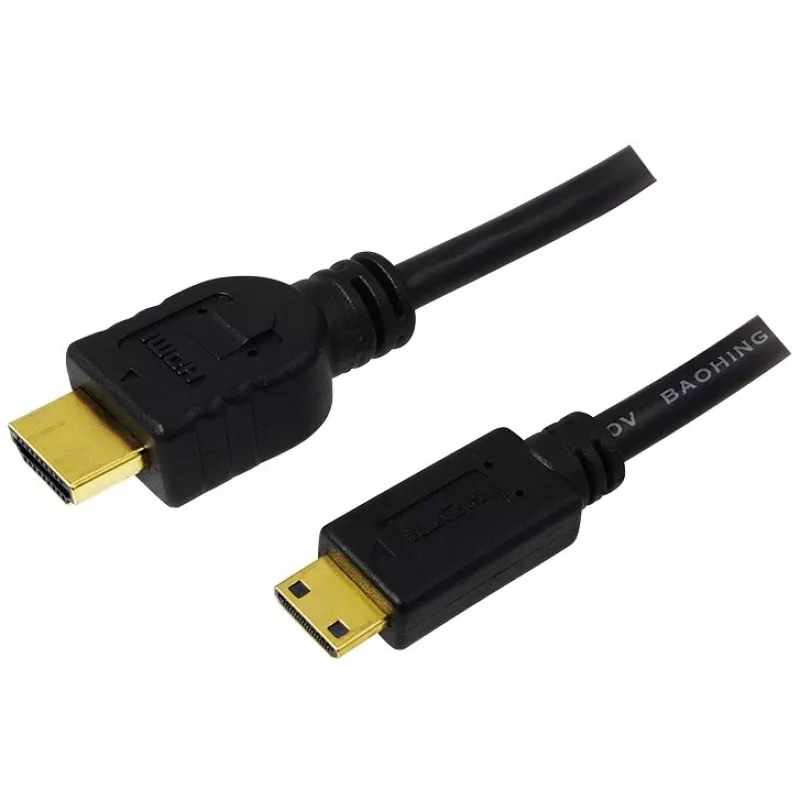

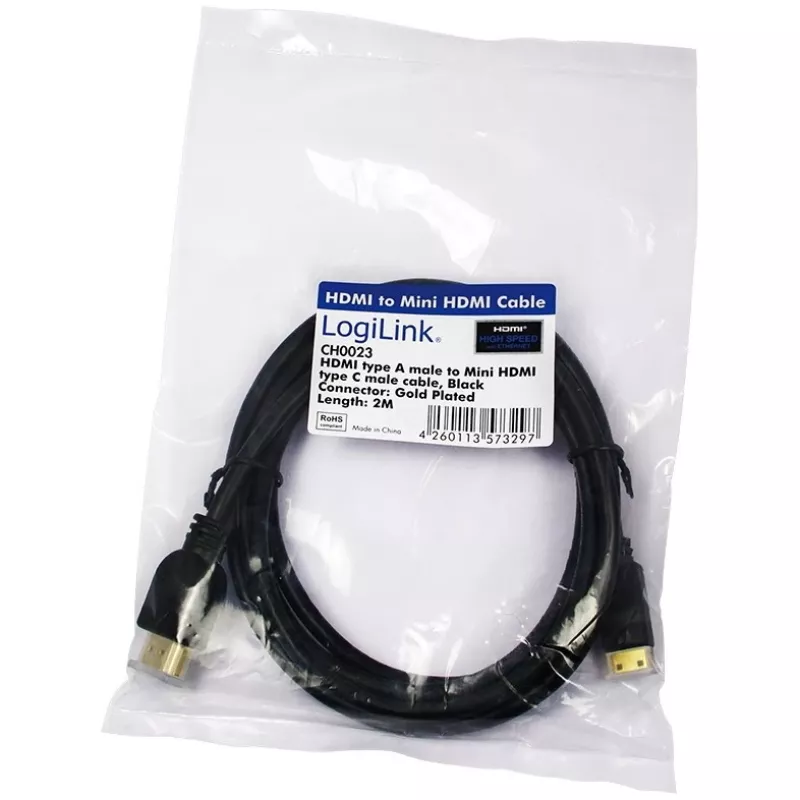

Cable HDMI LogiLink CH0023 2m HDMI Type-A a Type-C negro

The LogiLink CH0023 HDMI Cable is a 2 m cable with HDMI Type A (Standard) to HDMI Type C (Mini) connectors, designed to connect cameras, tablets and other compact devices to TVs or monitors. It supports the latest HDMI features including HDMI Ethernet Channel, Audio Return Channel, 3D imaging and all common HDTV formats up to 4K (4096 x 2160). Gold-plated contacts and an 8.16 Gbit/s data transfer rate ensure reliable signal transmission and color support across multiple color spaces.

Advantages

This cable consolidates video, audio and data into a single connection with support for HDMI Ethernet Channel (up to 100 Mb/s) and Audio Return Channel for upstream audio. It is compatible with HDTV formats 480p, 720p, 1080i, 1080p and 4K, and supports extended color spaces such as RGB, x.v.Color, sYCC60, Adobe RGB and Adobe YCC601. The gold-plated contacts improve contact reliability and help maintain signal quality during extended use.

Suitable for

• Connecting cameras and tablets with HDMI Type C output to TVs or monitors with HDMI Type A input
• Home entertainment systems requiring Audio Return Channel
• Setups needing 3D imaging or high-definition video up to 4K

Key specifications

• Cable length: 2 m
• Connector 1: HDMI Type A (Standard)
• Connector 2: HDMI Type C (Mini)
• Data transfer rate: 8.16 Gbit/s
• Contacts: gold-plated
• Colour: Black
• Supported formats: 480p, 720p, 1080i, 1080p, 4K (4096 x 2160)
• Supported features: HDMI Ethernet Channel, Audio Return Channel, 3D imaging

How to use

Connect the HDMI Type C (Mini) end to the source device (for example, a camera or tablet) and the HDMI Type A (Standard) end to the TV or monitor. Ensure both devices support the desired HDMI features (for example, ARC or Ethernet) and select the appropriate input on the display. For 4K resolution or 3D imaging, confirm that the connected devices and display are configured to output and accept those formats.

Recommendations

For best performance, route the cable clear of strong electromagnetic sources and avoid tight bends near the connectors. Verify device settings for HDMI Ethernet and ARC if network or upstream audio functionality is required.
