Cable HDMI MicroConnect 4K HDMI A-C 5 m

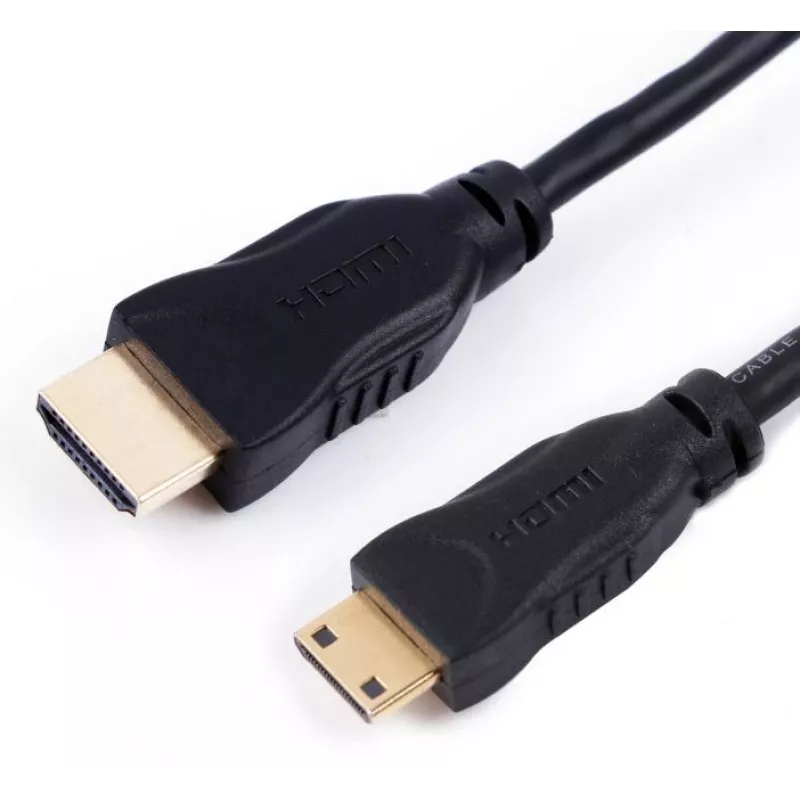

The MicroConnect 4K HDMI A-C 5m cable is a 5-metre HDMI 2.0 connection with a standard HDMI Type A male plug on one end and a mini HDMI Type C male plug on the other. It supports a maximum resolution of 4096 x 2160 at 60 Hz and a data transfer rate up to 18 Gbit/s, and includes support for HDCP 2.2, CEC, ARC and 3D for reliable digital audio and video transmission between compatible devices.

Advantages

This HDMI cable provides High Speed HDMI 2.0 performance with support for 4K@60Hz, HDCP 2.2 and ARC, ensuring compatibility with modern displays, cameras and media devices that use HDMI Type C (Mini) and Type A connectors. The 5 m length gives extra reach while the compact connectors maintain a standard HDMI interface for stable digital signal transfer.

Suitable for

• Connecting cameras, tablets or portable devices with HDMI Type C (Mini) to TVs or monitors with HDMI Type A
• Transmitting 4K@60Hz video and multichannel audio between source and display
• Setups requiring Audio Return Channel (ARC) or CEC control

Key specifications

• Cable length: 5 m
• Connector 1: HDMI Type A (male)
• Connector 2: HDMI Type C (Mini, male)
• Maximum resolution: 4096 x 2160 @ 60 Hz
• Data transfer rate: up to 18 Gbit/s
• Supported features: HDMI 2.0, HDCP 2.2, CEC, ARC, 3D
• Colour: Black
• Weight: 0.15 kg

How to use

Plug the HDMI Type A connector into the HDMI input on your TV, monitor or capture device and the HDMI Type C (Mini) connector into the HDMI output of your camera, tablet or other compatible source. Ensure both devices are powered on and set the display input to the correct HDMI port. For ARC or CEC functions, enable the corresponding options in both devices' settings.

Recommendations

For optimal performance, avoid sharp bends and kinks in the cable and keep the length as straight as possible. If you experience signal issues, check connector seating, test with a shorter cable and verify that connected devices support HDMI 2.0 and HDCP 2.2.
