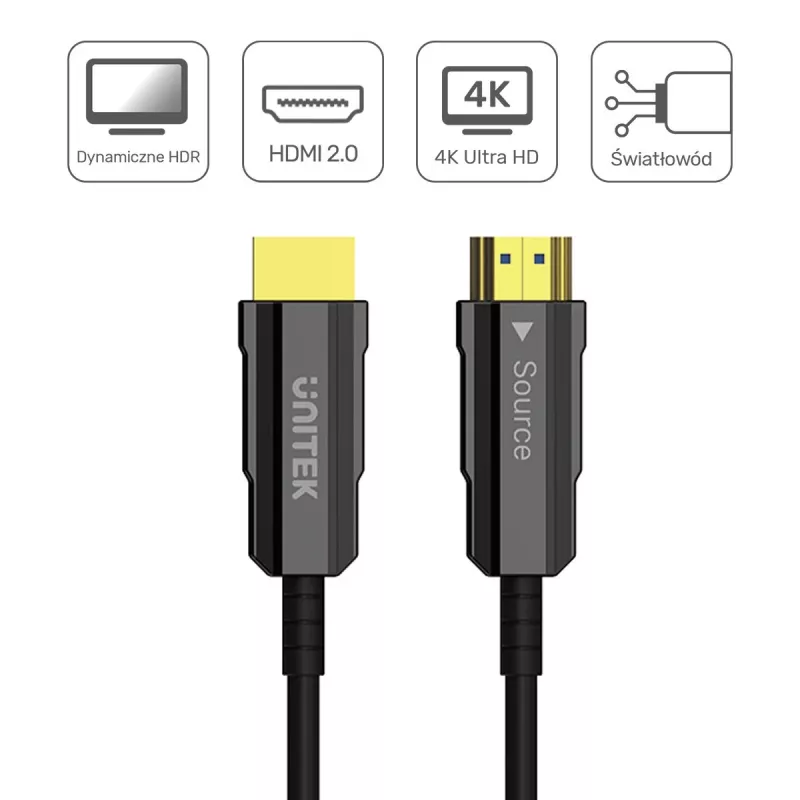

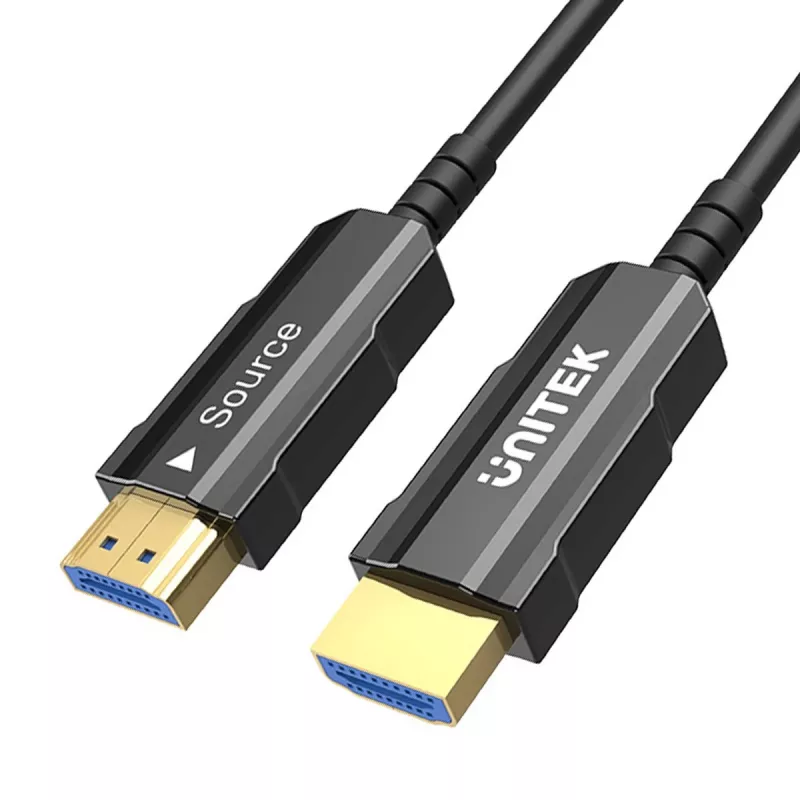

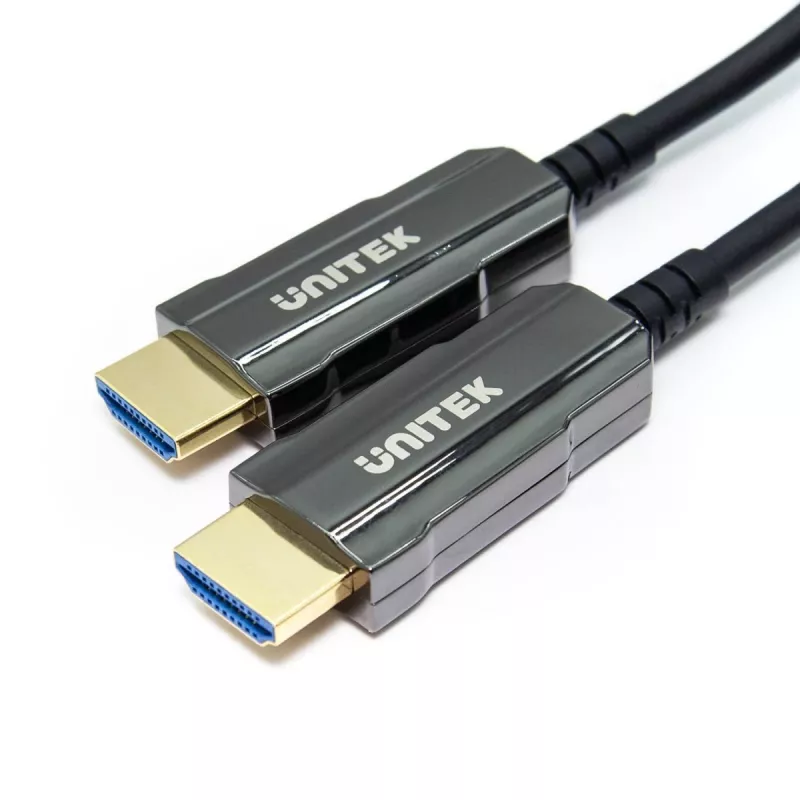

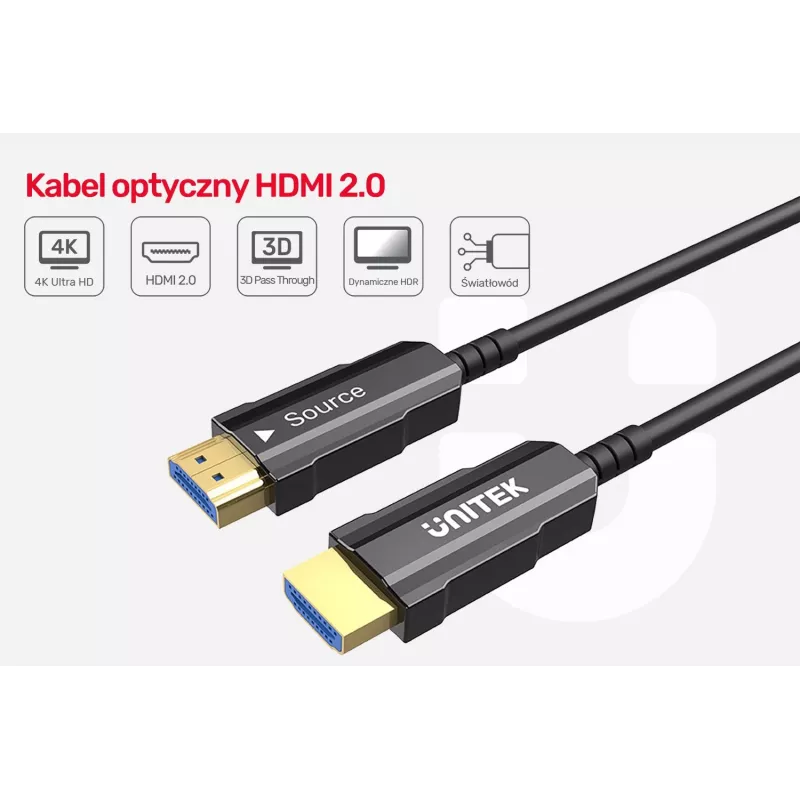

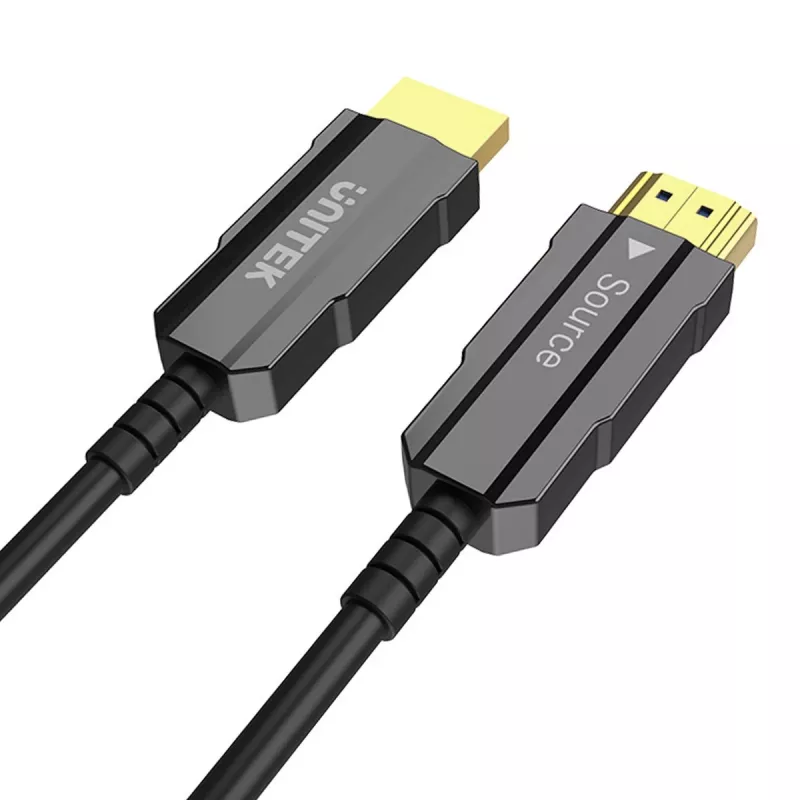

Cable HDMI UNITEK C11072BK-15M

The UNITEK C11072BK-15M is a 15 m fiber HDMI cable with male HDMI Type A connectors on both ends. Designed for high-bandwidth transmission, it supports 4K@60Hz video with 4:4:4/4:2:2/4:2:0 chroma formats, HDR, Dolby Vision, HDCP 2.2, ARC and 3D. The cable uses glass fiber for signal transmission and gold-plated contacts in a metal housing to provide reliable connection and improved corrosion resistance.

Advantages

This UNITEK fiber HDMI cable provides up to 18 Gbit/s bandwidth and is engineered for lossless signal transmission over long runs (10–50 m). The hybrid shielding and metal connector housings reduce electromagnetic interference and improve heat dissipation, while the 24K gold-plated plugs increase contact reliability. The slim and flexible 4.8 mm diameter jacket with a small bending radius makes the cable suitable for routing in tight spaces.

Suitable for

• Connecting 4K Blu‑ray players, Apple TV, Roku, media PCs and set‑top boxes to 4K UHD TVs
• Linking gaming consoles such as PS4, PS3, Xbox One and Xbox One S to displays or projectors
• Home theatre setups requiring ARC and 3D support
• Long cable runs (10–50 m) between sources and 4K monitors, projectors or TVs

Key specifications

• Cable length: 15 m
• Data rate: up to 18 Gbit/s
• Resolution & refresh: 4K@60Hz, 4:4:4/4:2:2/4:2:0
• Supported formats: HDR, Dolby Vision, 3D
• Copy protection: HDCP 2.2
• Audio: ARC, 32‑channel uncompressed audio support
• Connectors: HDMI Type A (male) — both ends
• Cable diameter: 4.8 mm; minimum bending radius: 25 mm
• Finish: 24K gold‑plated plugs, metal connector housing
• Colour: Black

How to use

Connect one HDMI Type A male connector to the source device (Blu‑ray player, console, Apple TV, PC, etc.) and the other HDMI Type A male connector to the 4K display, projector or AV receiver. Ensure both devices support the desired video/audio formats and that HDCP 2.2 is enabled if required. For best results on long runs, avoid tight sharp bends and secure cable routing to minimise strain.

Recommendations

For installations up to 50 m, test the connection after routing to confirm 4K@60Hz and HDR functionality. Maintain a minimum bending radius of 25 mm and avoid kinking. When connecting devices that use ARC, enable ARC in the TV and AV receiver settings to allow audio return.
