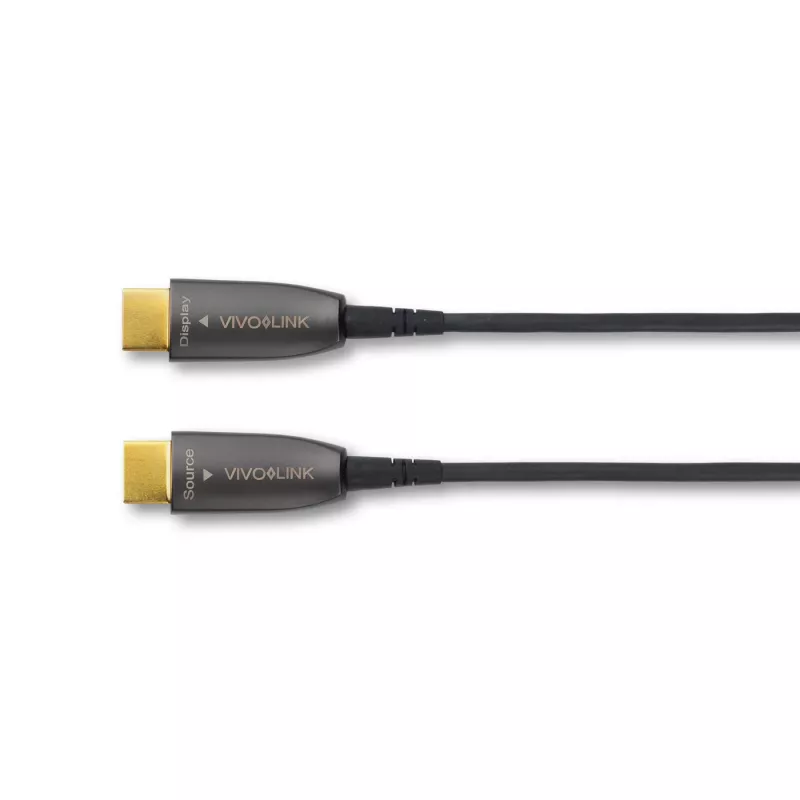

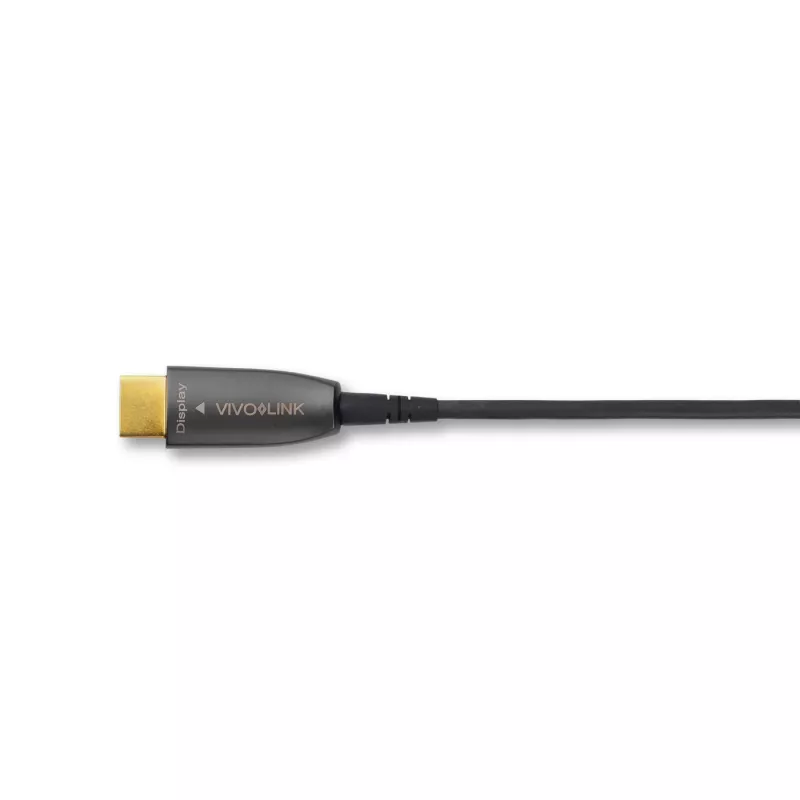

Cable HDMI Vivolink OPTIC 4K 20 m

The Vivolink OPTIC HDMI 4K 20m is a slim optical HDMI cable with HDMI Type A connectors designed for long-distance high-resolution signal transmission. It supports HDMI 2.0 features including 4K at 60Hz with 4:4:4 chroma sampling, HDR 12-bit, HDCP 2.2, 3D and ARC, and provides an 18 Gbit/s bandwidth in a 4.0 mm slim jacket. Gold-plated contacts improve signal integrity and durability, making it suitable for home theatre and professional AV installations.

Advantages

The cable delivers full HDMI 2.0 performance over 20 meters while maintaining a slim 4.0 mm profile and a tensile strength of 20 kg for secure installations. Optical design enables stable high-bandwidth transmission (18 Gbit/s) for 4K/60Hz 4:4:4 and HDR content, and gold-plated connectors reduce corrosion and signal loss. Compatibility with HDCP 2.2 and ARC ensures use with modern sources and displays.

Suitable for

• Home theatre AV connections requiring 4K/60Hz over long runs
• Professional display and presentation setups
• Installations where a slim cable profile is needed for concealment
• Connections between UHD sources and HDR-capable displays

Key specifications

• Length: 20 m
• Connector type: HDMI Type A to HDMI Type A
• Bandwidth: 18 Gbit/s (HDMI 2.0)
• Resolution support: Up to 4096 x 2160 @ 60Hz, 4:4:4
• HDR: 12-bit
• Copy protection: HDCP 2.2
• Features: 3D, ARC
• Cable diameter: 4.0 mm
• Tensile strength (pull resistance): 20 kg
• Contact plating: Gold-plated
• Colour: Black
• Weight: 0.29 kg

How to use

Connect one HDMI Type A connector to the source device (Blu-ray player, game console, set-top box or media player) and the other to the HDMI input of the display or AV receiver. Ensure both devices support HDMI 2.0/HDCP 2.2 to take full advantage of 4K/60Hz and HDR features. Route the slim 4.0 mm cable along the installation path, avoiding sharp bends and excessive tension; the cable is rated for 20 kg pull resistance but should not be used as a support or anchor.

Recommendations

For best results, use with devices that explicitly support HDMI 2.0 and HDCP 2.2. Avoid tight bending radii and secure connectors during installation. If signal issues occur, verify source and display settings (resolution, color space, HDR) and ensure connectors are fully seated.
