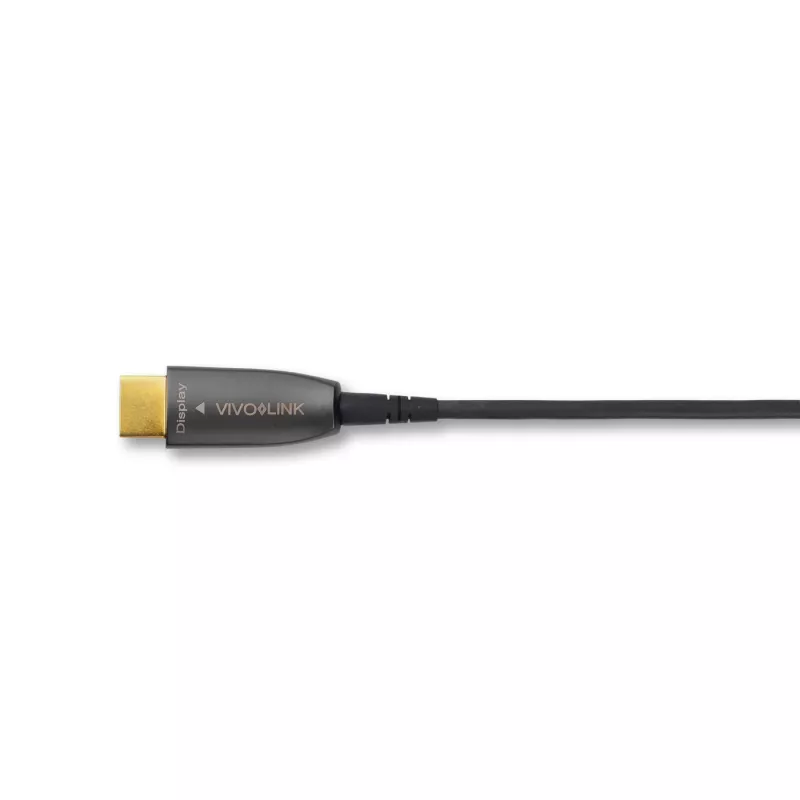

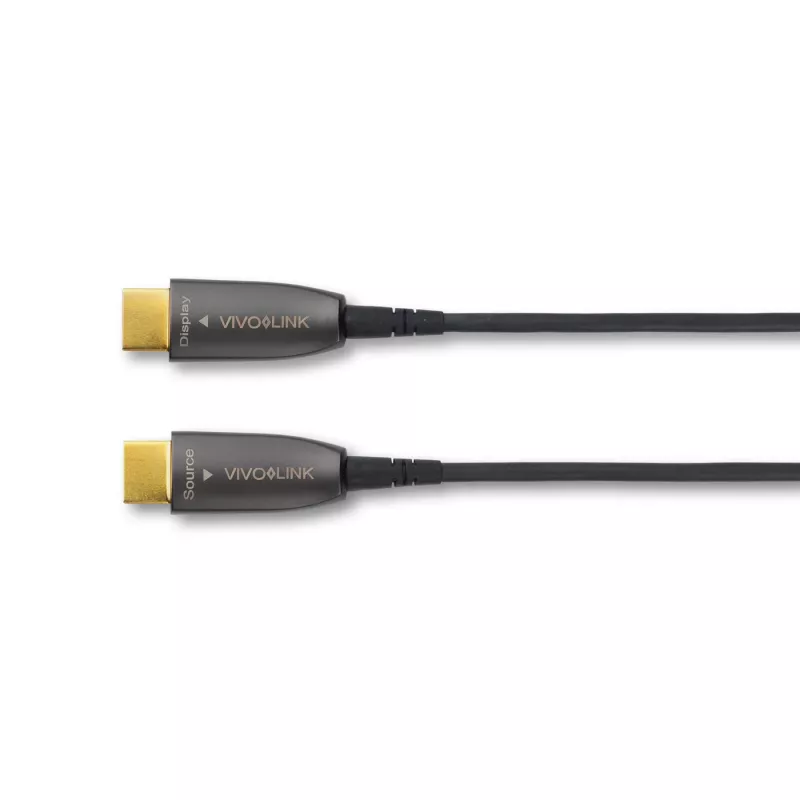

Cable HDMI Vivolink OPTIC 4K 70 m

The Vivolink OPTIC HDMI 4K 70m cable is a slim optical HDMI cable designed for long-distance transmission of high-resolution video and audio. It supports HDMI 2.0 features including 4K@60Hz with 4:4:4 chroma sampling, 18 Gbps bandwidth, HDR 12-bit, HDCP 2.2, 3D and ARC. The cable has a slim profile (4.0 mm) and is intended for installations where high resolution is required over extended runs.

Advantages

The cable provides reliable 4K/60Hz transmission at 18 Gbps over a 70 m length using optical construction to minimize signal loss. Gold-plated HDMI Type A connectors ensure stable contact, while the slim 4.0 mm diameter allows installation in constrained spaces and easy routing. Supports HDR 12-bit, HDCP 2.2, 3D and ARC for compatibility with modern AV equipment.

Suitable for

• Professional AV installations in auditoriums and conference rooms
• Long-distance connections between source and display (up to 70 m)
• Home theaters and living rooms where clean cable routing is needed
• Setups requiring HDR, HDCP 2.2 and 3D support

Key specifications

• Length: 70 m
• HDMI standard: HDMI 2.0
• Maximum resolution: up to 4096 x 2160 (4K) at 60 Hz, 4:4:4
• Bandwidth: 18 Gbps
• HDR: 12-bit
• Content protection: HDCP 2.2
• Additional features: 3D, ARC
• Connector type: HDMI Type A (Standard) both ends
• Diameter: 4.0 mm (slim)
• Pull resistance (tensile strength): 20 kg
• Color: Black
• Weight: 1.096 kg

How to use

Connect one HDMI Type A connector to the source device (Blu-ray player, media player, PC, AV receiver) and the other HDMI Type A connector to the display or projector. Ensure both devices support the intended 4K/60Hz and HDR settings in their video output menus. Route the slim cable along the installation path, avoiding sharp bends and excessive tension. Secure connectors properly and power on the devices to verify signal and resolution.

Recommendations

For best performance, avoid tight bends (maintain manufacturer-recommended bend radius), prevent excessive pulling beyond the specified 20 kg tensile strength, and keep connectors free of dust. Verify that source and display firmware settings match HDMI 2.0/HDR requirements and enable HDCP 2.2 where necessary.
