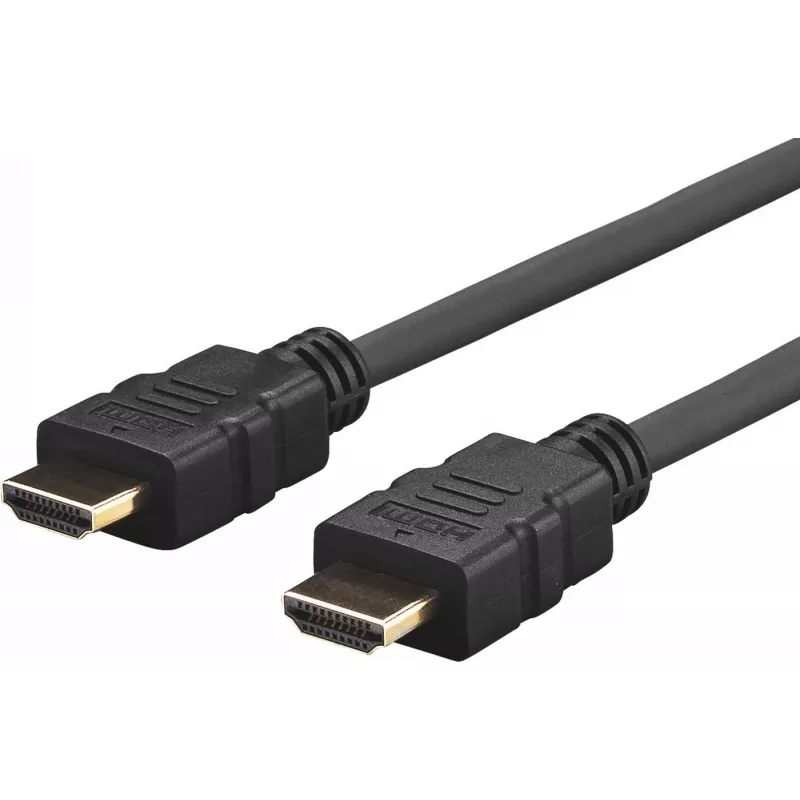

Cable HDMI Vivolink PRO HDMI LSZH 20 m

The Vivolink PRO HDMI LSZH 20m is a 20-metre HDMI cable designed for high-performance AV installations. It supports HDMI 2.0 features including resolutions up to 4096 x 2160 (4K) at 30 Hz, HDCP 2.2, CEC and Audio Return Channel (ARC). The cable uses an LSZH (Low Smoke Zero Halogen) jacket and gold-plated HDMI Type A connectors for reliable signal transmission in fixed installations.

Advantages

This cable combines high data throughput and low-emission safety with an ultra-flexible design suitable for routing in confined spaces. Gold-plated connectors improve contact quality and corrosion resistance. The integrated HDMI lock ensures a secure, stable connection to AV distribution equipment in permanent installations.

Suitable for

• Fixed AV installations with splitters, switches and distribution equipment
• Connecting displays or projectors at distances up to 20 m
• High-definition video and audio setups requiring HDCP 2.2 and ARC

Key specifications

• Brand: VivoLink
• Model / MPN: PROHDMIHDLSZH20
• Length: 20 m
• Connector type: HDMI Type A (Standard) to HDMI Type A (Standard)
• Maximum resolution: up to 4096 x 2160 (4K) @ 30 Hz
• HDMI version: HDMI 2.0 (supports HDCP 2.2, CEC, ARC)
• Data transfer rate: up to 18 Gbit/s
• Cable jacket: LSZH (Low Smoke Zero Halogen), colour: black
• Weight: 1.874 kg
• EAN: 5704174005209

How to use

Connect one HDMI Type A connector to the source device and the other to the display or AV distribution equipment. For fixed installations, the built-in HDMI lock secures the connector in AV splitters, switches or wall plates to prevent accidental disconnection. When connecting portable devices such as laptops, use the separate PROHDMIHDMFM2 adapter cable (not included) to avoid stressing the portable device's HDMI port from repeated insertions and removals.

Recommendations

For best long-term performance in permanent installations, route the cable away from high-power electrical cables and avoid tight bends. The LSZH jacket makes this cable suitable for use in enclosed or public spaces where low smoke and halogen-free materials are required.
