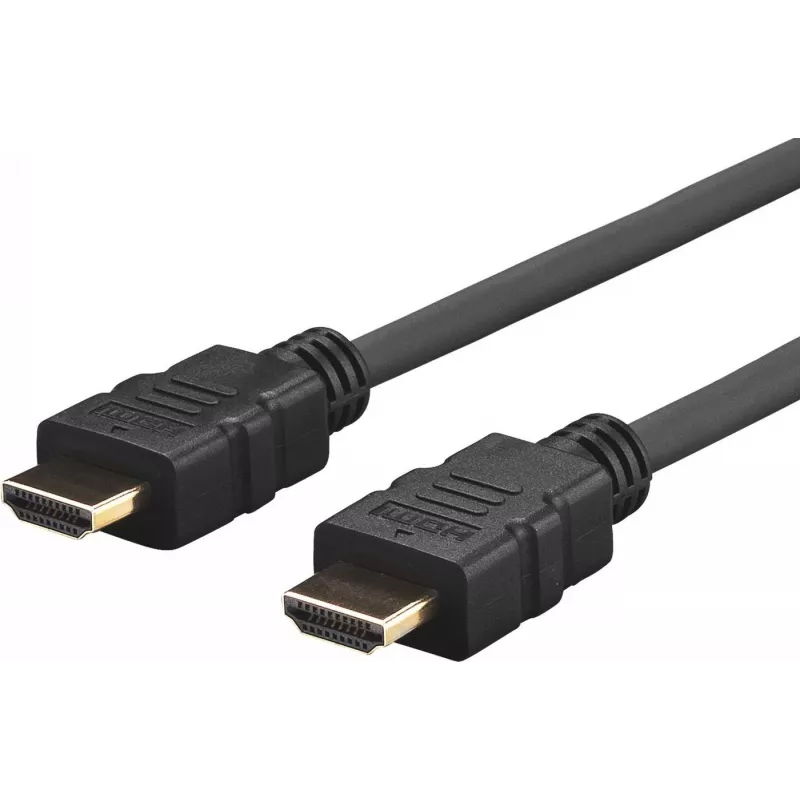

Cable HDMI Vivolink PRO HDMI LSZH 3 m

The Vivolink PRO HDMI LSZH 3m is a high-performance HDMI 2.0 cable with Ethernet, designed for reliable transmission of high-definition video and audio. It features HDMI Type A connectors on both ends, gold-plated contacts and supports data rates up to 18 Gbit/s, enabling resolutions up to 4K@60Hz (4096 x 2160) with HDCP 2.2, CEC and ARC. The cable is ultra-flexible, finished in black and uses Low Smoke Zero Halogen (LSZH) materials.

Advantages

The cable supports HDMI 2.0 bandwidth (18 Gbit/s) for smooth 4K@60Hz playback and is compatible with HDCP 2.2 for protected content. Gold-plated contacts improve signal quality and reduce corrosion. ARC support simplifies audio return from TV to sound systems. The LSZH jacket reduces smoke and halogen emissions in case of fire and the ultra-flexible construction eases routing in tight spaces.

Suitable for

• Connecting TVs, monitors and projectors to set-top boxes, media players and computers
• Home cinema systems requiring ARC for audio return
• 4K video playback at up to 60 Hz and 3D-capable sources

Key specifications

• Length: 3 m
• HDMI version: 2.0
• Maximum data rate: 18 Gbit/s
• Max resolution: 4096 x 2160 @ 60 Hz
• Connectors: HDMI Type A – HDMI Type A (gold-plated contacts)
• Features: Ethernet, ARC, CEC, HDCP 2.2
• Jacket: Low Smoke Zero Halogen (LSZH)
• Colour: Black
• Weight: 0.19 kg

How to use

Connect one HDMI Type A end to the HDMI output of your source device (PC, Blu-ray player, console or set-top box) and the other end to the HDMI input of your display device (TV, monitor or projector). If using ARC, connect to the TV HDMI ARC input and enable ARC in both TV and audio system settings. Ensure firm connections at both ends and avoid sharp bends to maintain signal integrity.

Recommendations

For best results, verify that connected devices support HDMI 2.0 and HDCP 2.2 for 4K@60Hz playback. Route the cable without tight kinks and avoid running it parallel to high-power electrical cables to minimize interference.
