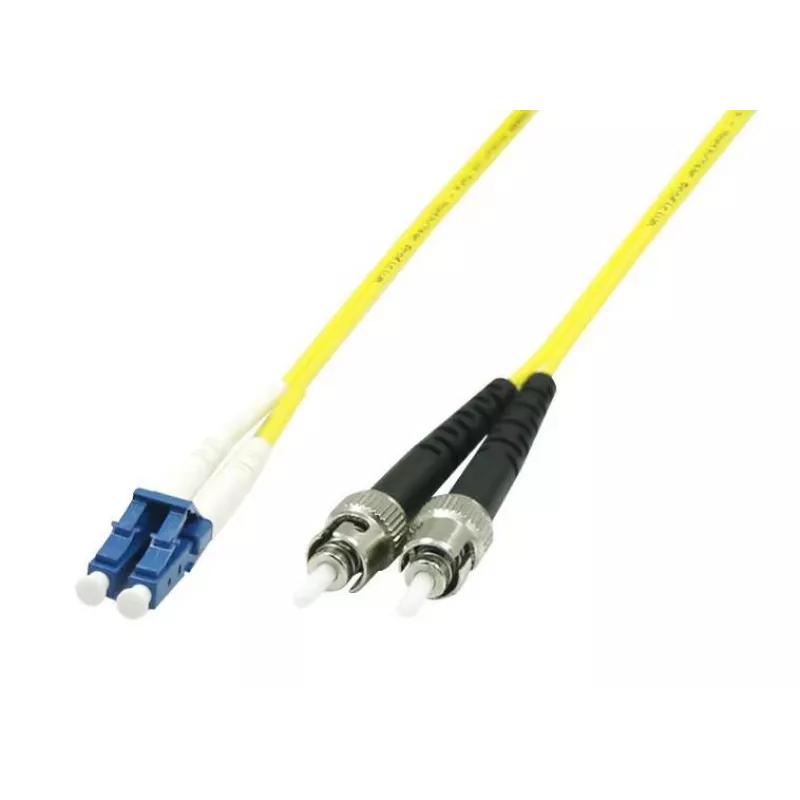

Cable InfiniBand/fibra óptica Microconnect FIB411002 2 m LC ST amarillo

The Microconnect FIB411002 is a 2 m single-mode fibre optic patch cable with LC to ST connectors and OS2 fibre construction. Designed for enterprise networks, telecom rooms, server farms and cloud storage environments, this yellow cable supports full-duplex transmission and is suitable for 1G/10G/40G/100G Ethernet links. The cable uses LSZH jacket material and conforms to common industry standards for fibre jumper performance.

Advantages

The 9 µm single-mode core enables long-distance data transport—up to 10 km at 1310 nm and up to 40 km at 1550 nm. LC and ST connectors provide compatibility with a wide range of network equipment. The 2 m length and lightweight construction (0.02 kg) make installation and routing straightforward, while the yellow LSZH jacket improves identification and reduces smoke emission in case of fire.

Suitable for

• Enterprise LAN backbone connections
• Telecom rooms and equipment racks
• Server farms and data centre patching
• Cloud storage network links
• High-speed Ethernet links (1G/10G/40G/100G)

Key specifications

• Product name: Microconnect FIB411002
• Length: 2 m
• Connector A: LC
• Connector B: ST
• Fibre type: OS2 (single-mode)
• Core diameter: 9 µm
• Jacket: LSZH
• Colour: Yellow
• Weight: 0.02 kg

How to use

Route the fibre cable between the two ports to be connected, avoiding tight bends and sharp edges. Clean connector endfaces before insertion to ensure optimal signal transmission. Plug the LC connector into the corresponding LC port and the ST connector into the matching ST port until a secure connection is achieved. Verify link status on connected devices and perform optical power or link tests if required.

Recommendations

Store and handle the cable in a way that prevents excessive bending (observe manufacturer minimum bend radius) and protect connectors with dust caps when not in use. Use appropriate cleaning tools for fibre connectors and follow standard safety procedures when working near active optical equipment.
