Cable InfiniBand/fibra óptica Microconnect FIB412002 2 m LC ST azul

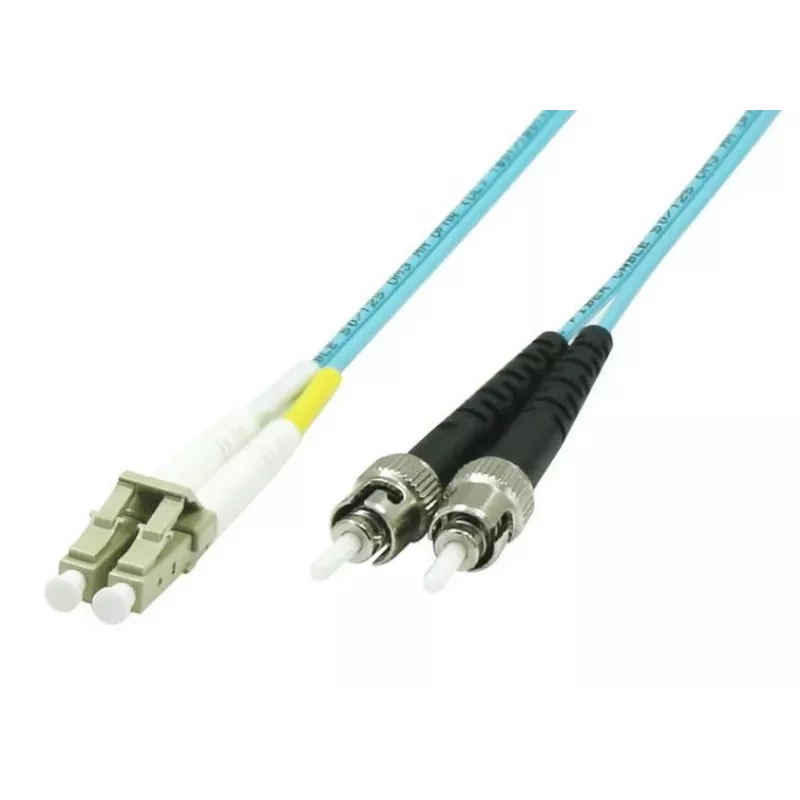

The Microconnect FIB412002 is a 2 m OM3 multimode fibre optic patch cable with LC and ST connectors, designed for full-duplex high-speed data transmission. With a 50/125 µm core/cladding diameter and bend-insensitive construction, this blue LSZH cable is suitable for 10G SR, 10G LRM and other SFP+ transceiver links used in 10G/40G/100G Ethernet networks.

Advantages

Bend-insensitive OM3 multimode fibre exhibits lower attenuation when bent or twisted compared with traditional multimode cable, simplifying installation and reducing maintenance effort. The cable uses LSZH sheathing that meets IEC/EIA‑TIA and Telcordia standards and provides reliable full-duplex connectivity with LC and ST terminations. Its OM3 specification is optimized for short-reach 10G Ethernet and higher-speed links when paired with appropriate transceivers.

Suitable for

• 10G SR and 10G LRM connections
• SFP+ transceivers and multimode optics
• 10G/40G/100G short-reach Ethernet links within data centres and telecom rooms
• Patch panels, switches and fibre distribution frames using LC and ST ports

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB412002
• Cable type: OM3 multimode, bend-insensitive
• Core/cladding: 50/125 µm
• Length: 2 m
• Connectors: LC (one end) — ST (other end)
• Cable jacket: LSZH, blue
• Weight: 0.04 kg
• EAN: 5704327388296

How to use

Connect the LC end to the LC port of the transceiver or network device and the ST end to the corresponding ST connector on the patch panel or equipment. Ensure connectors and ports are clean and free of dust before mating. Route the cable with gentle bends, avoiding sharp kinks; the bend-insensitive design tolerates tighter bends than standard multimode fibre but standard handling good practices should be followed to maintain signal integrity.

Recommendations

For best performance in 10G links, use OM3-certified transceivers and ensure end-face cleanliness. Keep cable length within specified link budgets for the intended transceiver type and avoid mechanical strain near the connectors.
