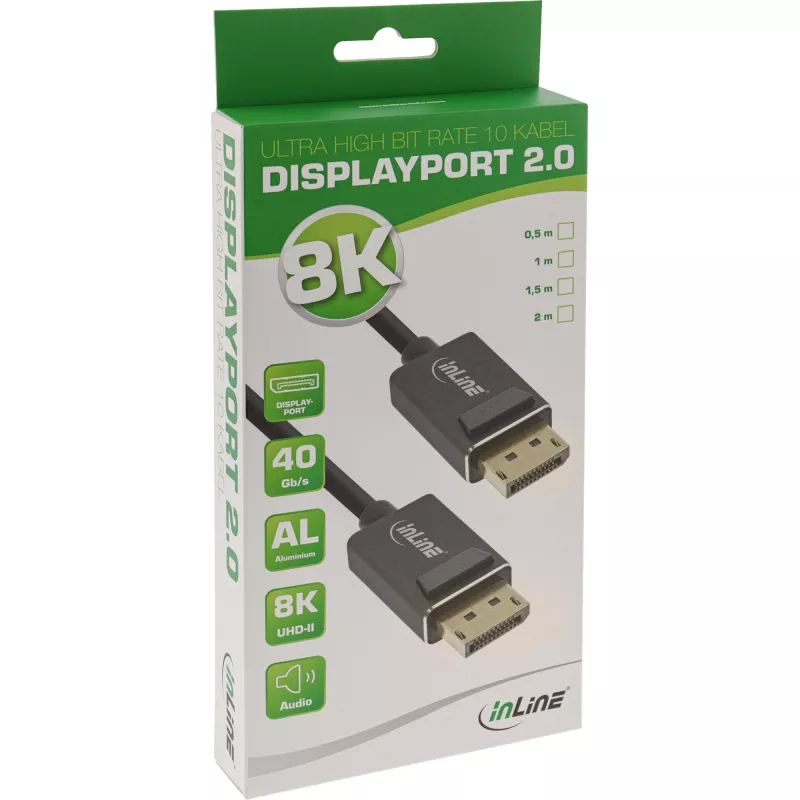

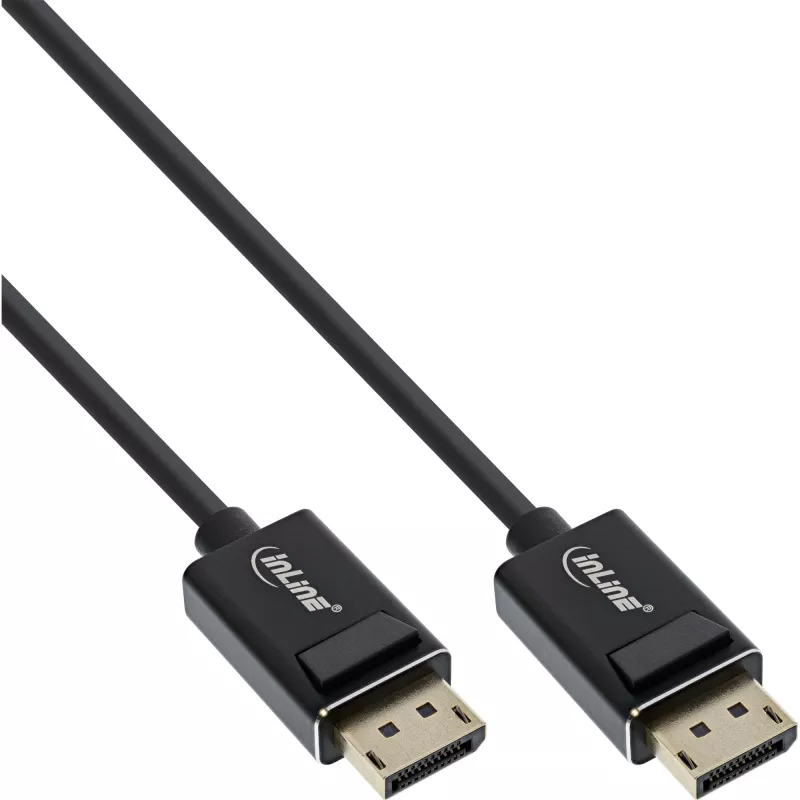

Cable InLine DisplayPort 2.0, 8K4K UHBR, negro, contactos dorados, 3m

Cable InLine DisplayPort 2.0, 8K4K UHBR, negro, contactos dorados, 3m
Cable InLine DisplayPort 2.0, 8K4K UHBR, negro, contactos dorados, 3m
Cable InLine DisplayPort 2.0, 8K4K UHBR, negro, contactos dorados, 3m
Cable InLine DisplayPort 2.0, 8K4K UHBR, negro, contactos dorados, 3m
28,02 €
The InLine DisplayPort 2.0 cable (3 m) enables connection of monitors and displays using the latest DisplayPort 2.0 standard. It supports UHBR transmission for high-resolution output, is UL certified, and has gold-plated contacts and a black jacket for reliable connectivity and durability.Advantages... Leer más
Stock 400 Código 312561 Marca INLINE Modelo 15403P Garantía 2 años

Envíos y devoluciones

Entrega estimada Jueves, Octubre 22
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

The InLine DisplayPort 2.0 cable (3 m) enables connection of monitors and displays using the latest DisplayPort 2.0 standard. It supports UHBR transmission for high-resolution output, is UL certified, and has gold-plated contacts and a black jacket for reliable connectivity and durability.

Advantages

The cable supports 8K and 4K resolutions with UHBR technology, offers gold-plated contacts to reduce corrosion and improve signal quality, and provides a 3 m length for flexible device placement. UL certification ensures compliance with safety and quality standards, and the cable ships in a hanging box for easy storage and retail presentation.

Suitable for

  • Connecting high-resolution monitors and displays
  • Gaming PCs and consoles with DisplayPort outputs
  • Workstations and multi-monitor setups
  • Home theater and professional video applications

Key specifications

  • Standard: DisplayPort 2.0
  • Length: 3 m
  • Connectors: DisplayPort to DisplayPort
  • Contact plating: Gold-plated contacts
  • Colour: Black
  • Certifications: UL certified
  • MPN: 15403P
  • EAN: 4043718301584

How to use

Connect one end of the DisplayPort 2.0 cable to the DisplayPort output on your source device (PC, laptop, or console) and the other end to the DisplayPort input on your monitor or display. Ensure both devices are powered off or follow manufacturer hot-plug guidelines before connecting. After connection, power on the devices and configure display settings in the operating system or monitor menu to enable the desired resolution and refresh rate.

Recommendations

For optimal performance at 8K or high refresh rates, use the cable with devices that explicitly support DisplayPort 2.0 and UHBR modes. Avoid sharp bends and excessive tension on the cable; keep connectors free of dust and secure connections firmly but without excessive force.
Aspectos destacados
  • DisplayPort 2.0 Ultra High Bit Rate 10 (UHBR10) cable
  • Transfer of Audio and Video signal
  • Audio signal: 1–8 channels, 16 or 24-bit linear PCM, 32–192 kHz sampling rate, maximum bitrate 36,864 kbit/s (4,608 kB/s)
  • Data transfer rate: 40Gb/s
  • Resolutions up to: 5120x2880@60Hz, 7680×4320@60Hz, 3840×2160@120Hz 4:4:4 8bit, 3840×2160@144Hz 4:2:2 8bit
  • Support HDCP 2.2, DPCP, 3D, Dolby MAT, DTS HD, HDR10, DSC1.2
  • Support multi-streaming / MST
  • Aluminium DisplayPort plug with gold plated contacts
  • Double shielded cable
  • 3 m
  • DisplayPort Straight Male
  • DisplayPort Straight Male
  • DisplayPort version: 2.0
  • 7680 x 4320 pixels 40 Gbit/s
  • HDCP Display Stream Compression (DSC)
  • Black
Especificaciones
Altura
12 mm
Altura del embalaje
50 mm
Ancho
21 mm
Ancho del embalaje
106 mm
Calibre AWG del cable
28
Cantidad por paquete
1 pc(s)
Certificación
UL
Color del producto
Black
Conector 1
DisplayPort
Conector 2
DisplayPort
Display Stream Compression (DSC)
Yes
Formato del conector 1
Straight
Formato del conector 2
Straight
Género del conector 1
Male
Género del conector 2
Male
HDCP
Yes
Longitud del cable
3 m
Multi-Stream Transport (MST)
Yes
Peso
198 g
Peso del embalaje
227 g
Profundidad
3000 mm
Profundidad del embalaje
200 mm
Protección de contenido DisplayPort (DPCP)
Yes
Recubrimiento de los contactos del conector
Gold
Resolución máxima
7680 x 4320 pixels
Resoluciones gráficas compatibles
3840 x 2160, 5120 x 2880, 7860 x 4320
Tipo de cable
Round cable
Tipo de embalaje
Hanging box
Velocidad de transferencia de datos
40 Gbit/s
Versión de Display Stream Compression (DSC)
1.2
Versión de DisplayPort
2.0
Versión de HDCP
2.2
