Cable InLine HDMI a DVI macho / macho 18+1 chapado en oro 5 m

High compatibility for IT and AV infrastructures:Reliably connects HDMI sources to DVI displays – ideal for system houses, office environments, and AV installations.
Reliable signal transmission in Full HD:Supports 1080p resolutions and a data rate of up to 4.95 Gb/s for razor-sharp images.
Optimized shielding for interference-free performance:High-density multiple shielding protects against electromagnetic interference – ideal for professional use.
Robust quality for continuous use:Gold-plated contacts and a loss-reducing PE insulator guarantee a permanently stable connection.
Flexible integration into existing systems:Versatile thanks to different versions for various installation requirements.

The InLine® HDMI-DVI cable with gold-plated contacts offers a reliable and powerful connection solution for professional applications in IT and AV environments. It connects HDMI sources such as PCs, notebooks, digital receivers, or media players to displays or projectors that have a DVI-D input (18+1).
With a maximum data rate of 4.95 Gb/s and support for Full HD resolutions (1080p), the cable ensures high-quality image transmission. The integrated automatic connector detection enables plug-and-play operation without additional configuration - a plus for time-saving installations.
The high-density PE insulation and multiple shielding provide reliable protection against electromagnetic interference and ensure stable signal quality. Gold-plated contacts ensure low-loss transmission and improve long-term durability during intensive use.
The cable is available in different versions, making it suitable for both mobile setups and permanently installed installations in conference rooms, training centers, or industrial facilities. Thanks to HDMI 1.3 compatibility, broad device support is ensured.

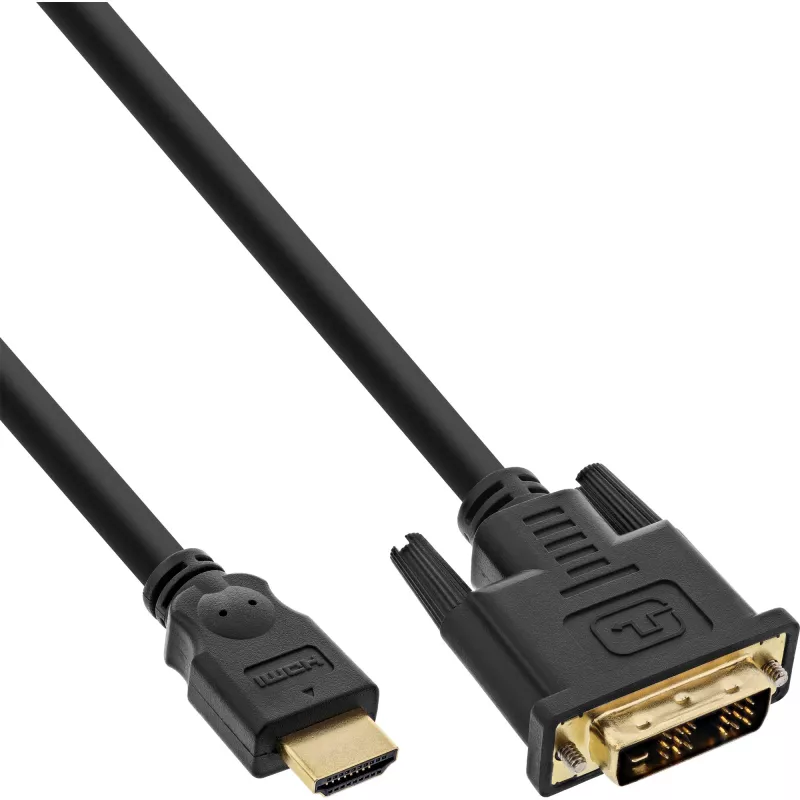

Connector: HDMI connector (type A) to DVI-D connector (18+1)
Data rate: up to 4.95 Gb/s
Resolution: supports 1080p / FullHD (single link)
HDMI version: 1.3 compatible
Contact material: gold-plated
Insulation: high-density PE plastic
Shielding: multi-layer, high-density
Plug-and-play: automatic connector detection

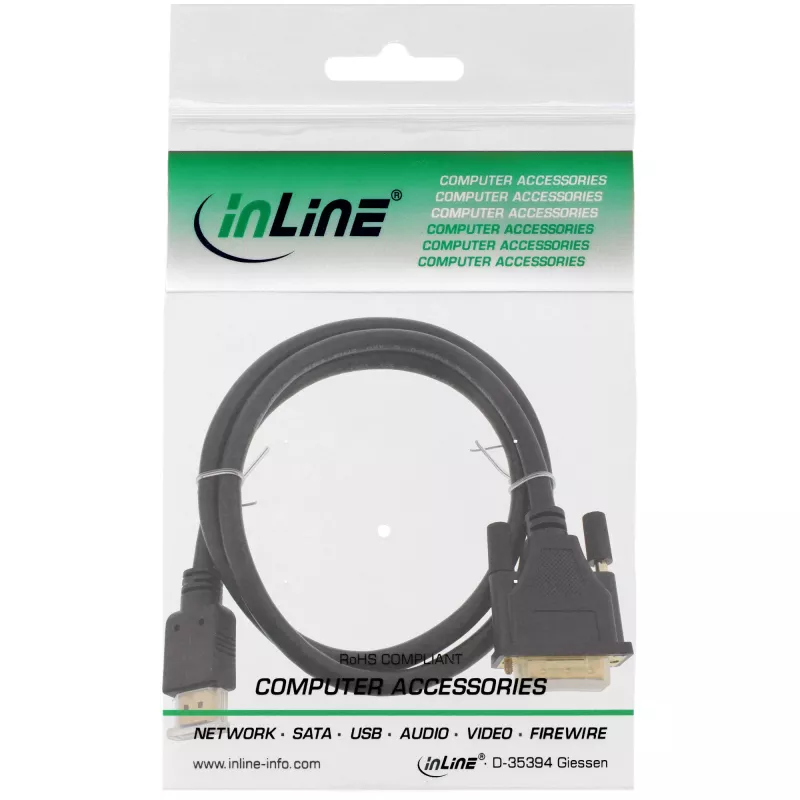

InLine HDMI to DVI Cable male / 18+1 male gold plated 5m. Cable length: 5 m, Connector 1: HDMI, Connector 2: DVI-D. Weight: 307 g. Package width: 175 mm, Package depth: 245 mm, Package height: 40 mm. Technical features: 1080p

How to use

Connect the HDMI male end to the HDMI output of the source device and the DVI‑D male end to the DVI‑D input on the display. Ensure both devices are powered off when making the physical connection if possible; power them on afterwards and select the appropriate input on the display. Check display resolution settings on the source device and set to a supported mode (up to 1080p) if needed.

Recommendations

For best results, avoid sharp bends and secure the cable to prevent strain on the connectors. If audio is required, confirm that the connected devices support audio transmission over the chosen interfaces or use a separate audio connection, since DVI‑D carries only video.
