Cable interno Mini-SAS a 4×SATA DELOCK 0,5 m — Mini SAS SFF-8087 a 4×SATA 7p, negro/plateado/amarillo

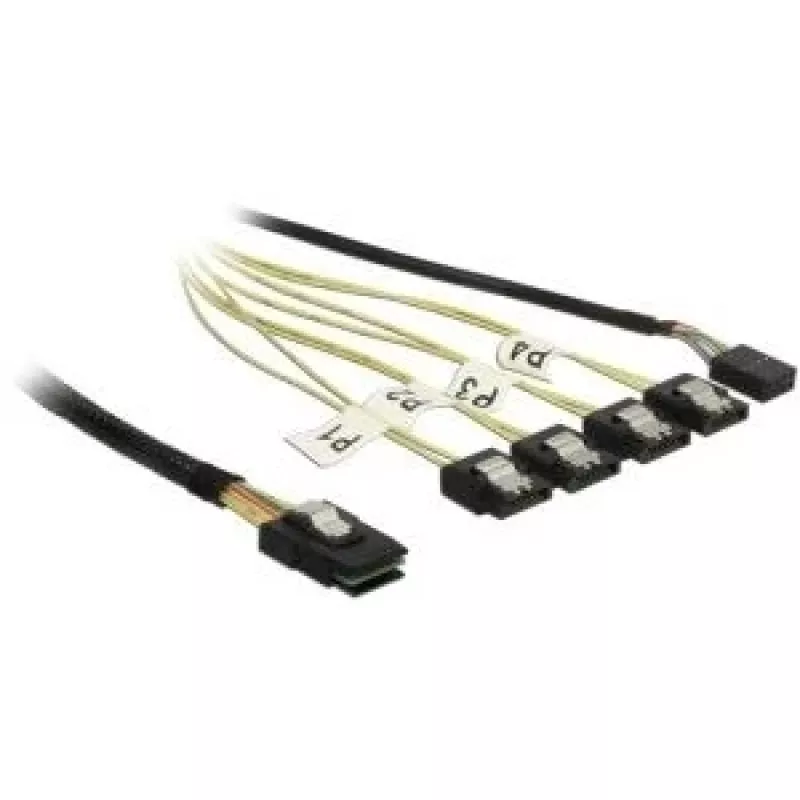

DELOCK internal Mini SAS to 4×SATA cable, 0.5 m long, features one Mini SAS SFF-8087 connector and four SATA 7-pin connectors. This cable is designed to connect a host adapter or backplane with a Mini SAS port to multiple SATA drives inside a PC or server. Colour-coded leads (black, silver, yellow) assist in visual identification of individual drive connections, while metal clips on the SATA plugs provide secure snap-in retention for reliable internal connections.

Advantages

The 0.5 m length keeps internal routing neat and reduces excess cabling in compact cases and server chassis. One Mini SAS SFF-8087 interface converts to four SATA 7-pin connectors, enabling easy connection of multiple SATA drives to a single SAS port. Metal clip retention on the SATA connectors improves mechanical stability and prevents accidental disconnection during installation or maintenance.

Suitable for

• Connecting an HDD/SSD backplane with a Mini SAS SFF-8087 connector to a controller or host adapter
• Building or expanding RAID arrays that use SATA drives behind a SAS interface
• Internal storage expansion in desktop PCs, workstations and rack servers
• Drive bay and hot-swap backplane connections in storage enclosures

Key specifications

• Cable length: 0.5 m
• Connector (end A): Mini SAS SFF-8087
• Connector (end B): 4 × SATA 7-pin
• Lead colours: black, silver, yellow
• SATA connector retention: metal clip (snap-in)
• Intended use: internal cable for PC and server storage connections

How to use

Power down the system and disconnect mains power before installing the cable. Plug the Mini SAS SFF-8087 connector into the corresponding port on the host adapter or backplane, ensuring correct orientation. Route the cable inside the chassis to avoid obstructing airflow or fans, then plug each SATA 7-pin connector into the SATA drive ports, listening for the snap-in engage from the metal clips. Reconnect power and verify that connected drives are detected by the BIOS or RAID controller.

Recommendations

Use the 0.5 m length for tight internal routing; avoid sharp bends near connector ends and secure the cable with ties or clips to prevent strain on connectors. Verify compatibility of the host adapter and backplane with Mini SAS SFF-8087 to SATA breakout connections before deployment.
