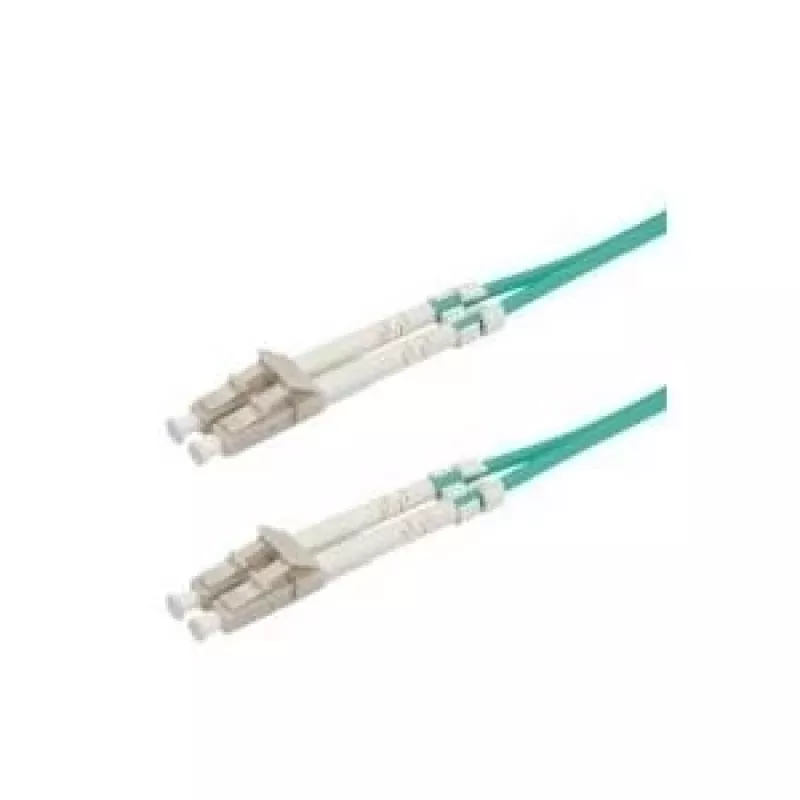

Cable jumper de fibra óptica ROLINE LC/LC OM3 20 m 50/125 µm turquesa

The ROLINE Fibre Optic Jumper Cable LC/LC OM3 20m (50/125µm) in turquoise is a duplex multimode patch cable designed for high-performance network connections. It features LC connectors on both ends and OM3-grade 50/125µm fibers to support high bandwidth and low insertion loss in data centre, telecom and enterprise cabling environments.

Advantages

The cable’s OM3 multimode fibers and precise connector assembly offer low insertion loss and low reflection for reliable signal transmission. A compact conductor design with fibre movable in secondary coating improves mechanical stability, while Kevlar tension members and a PVC outer jacket provide strain relief and basic environmental protection. The duplex LC/LC format simplifies duplex connections and patching in racks and panels.

Suitable for

• High-speed multimode links in data centres
• Patch panels and rack-to-equipment connections
• Telecommunications and enterprise LAN backbones
• Short- to medium-reach fibre runs requiring OM3 performance

Key specifications

• Connector type: LC to LC (duplex)
• Fiber type: Multimode 50/125µm, OM3
• Length: 20 m
• Cable construction: Kevlar tension members, PVC outer jacket
• Outer diameter: approx. 2.8 x 6 mm
• Color: turquoise
• Manufacturer: ROLINE, MPN 21.15.8707, EAN 7611990124855

How to use

Ensure both network devices or patch panel ports support multimode LC connections. Align and insert the LC connectors into the corresponding LC sockets until they click into place, observing correct duplex polarity for transmit and receive channels. Avoid tight bends and secure the cable to prevent strain on connectors; route through cable managers or tray systems as needed.

Recommendations

For optimal performance, maintain minimum bend radius and avoid kinking. Use OM3-compatible transceivers and test insertion loss after installation when used in critical links. Store the cable coiled loosely and protect connector end faces with dust caps until connection.
