Cable KVM Cisco N20-BKVM USB VGA

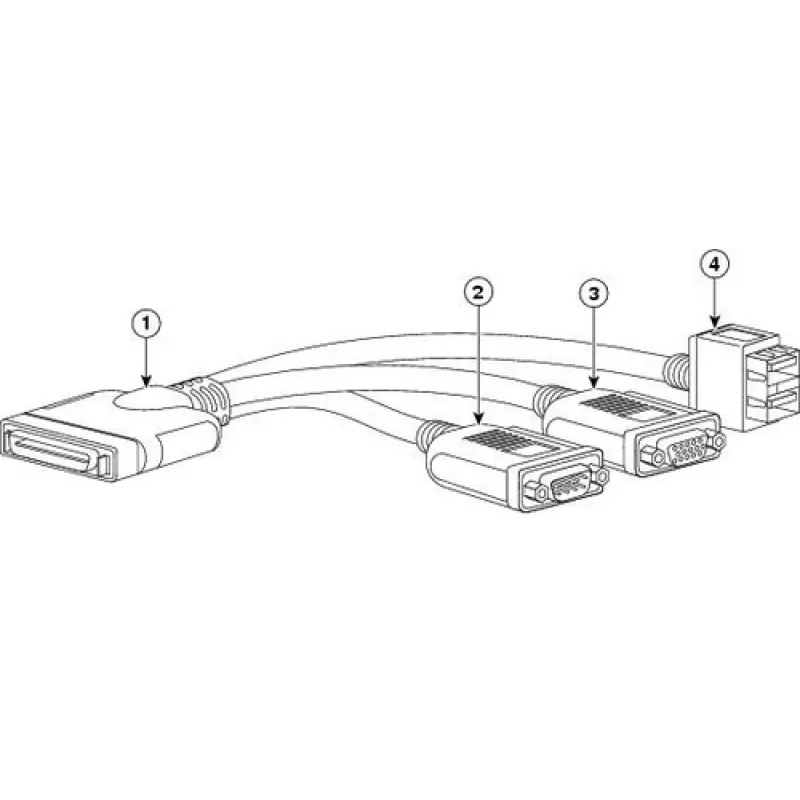

The Cisco N20-BKVM USB VGA KVM cable connects directly to Cisco UCS 5108 blade servers and provides a DB9 serial connector, a VGA video connector, and dual USB Type-A ports for keyboard and mouse. It is designed to enable direct access to the server operating system and BIOS from a single console.

Advantages

The cable combines serial, video and USB connectivity in a single assembly, reducing cable clutter and simplifying access to blade server consoles. Dual USB ports support standard keyboard and mouse connections without adapters, while the VGA and DB9 connectors provide compatibility with legacy monitors and serial management tools.

Suitable for

• Connecting a console (monitor, keyboard, mouse) to Cisco UCS 5108 blade servers
• On-site server management, troubleshooting and BIOS access
• Integration with KVM switches or direct console access during deployments

Key specifications

• Manufacturer: Cisco
• Model / MPN: N20-BKVM=
• Connectors: DB9 serial, VGA video, 2 × USB Type-A (keyboard and mouse)
• Designed for: Cisco UCS 5108 blade server
• EAN: 0882658251412

How to use

Connect the cable's server-side end to the management port on the Cisco UCS 5108 blade server. Attach the VGA connector to a monitor and plug the two USB Type-A connectors into a keyboard and a mouse. If required, connect the DB9 serial connector to a serial console or adapter for serial management. Power on the server and use the connected console to access the operating system or enter the BIOS.

Recommendations

Use the cable for direct, local console access during installation, maintenance or troubleshooting. Ensure connectors are fully seated and avoid sharp bends or excessive tension on the cable to maintain reliable signal integrity.
