Cable óptico activo HDMI 2.0 EQUIP 15 m — tipo A/D desmontables, 4K@60Hz, 18 Gbit/s, contactos dorados

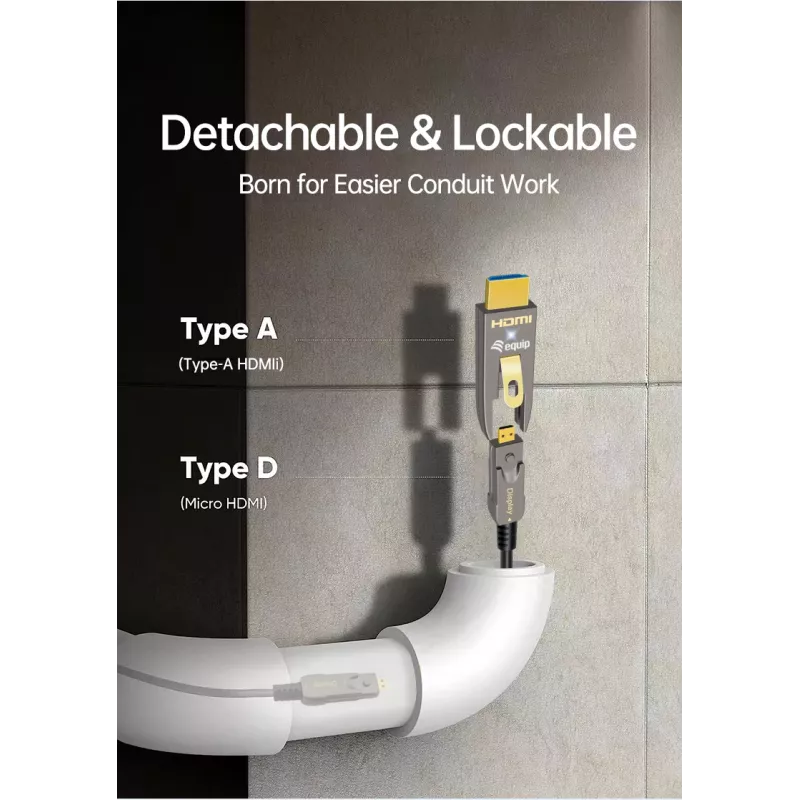

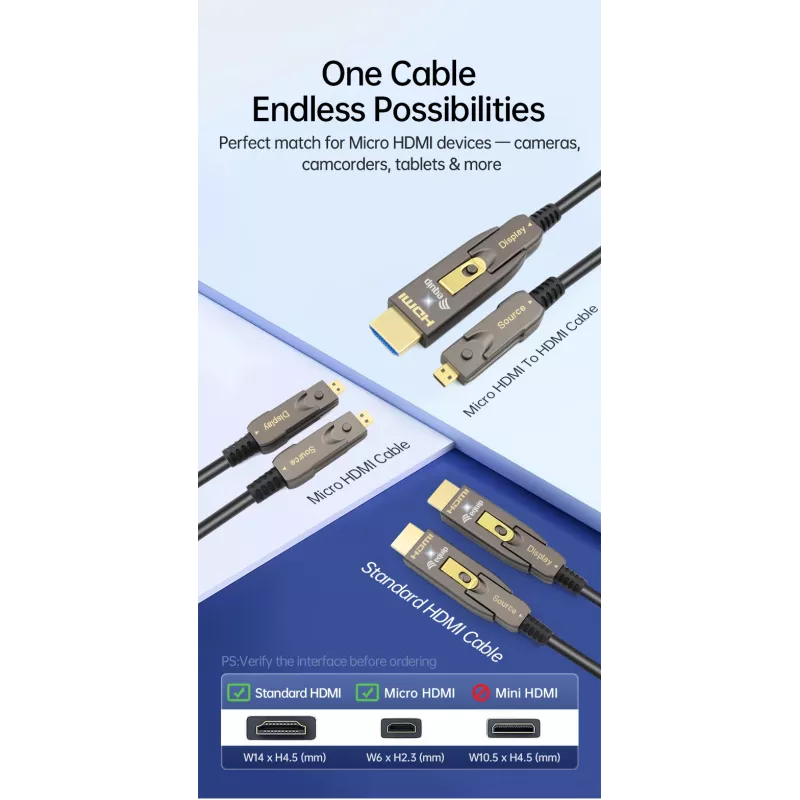

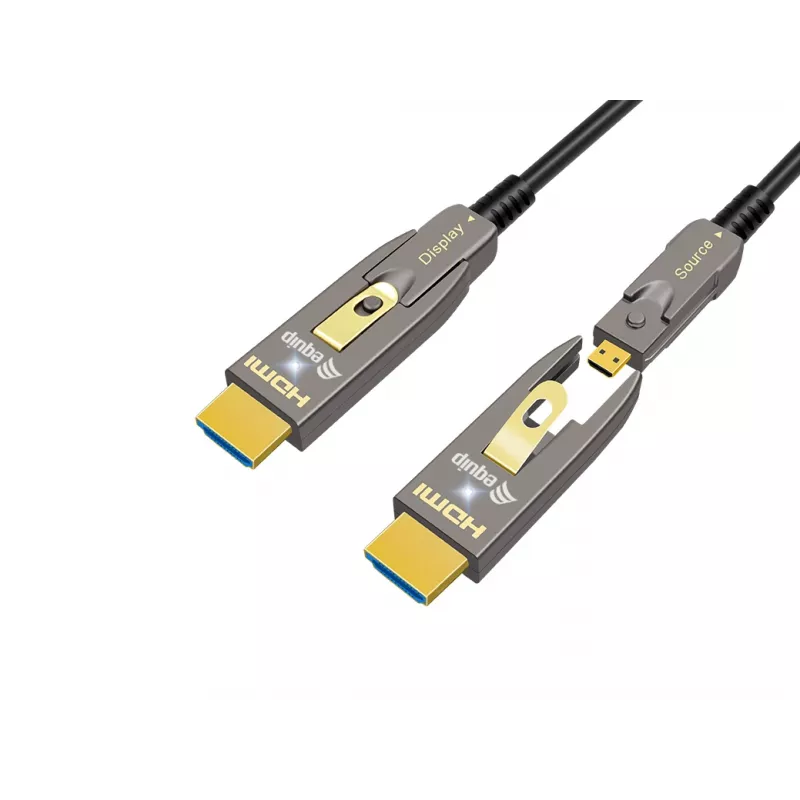

The Equip HDMI 2.0 Detachable Type D + A Active Optical Cable provides high-definition connectivity using active optical technology to maintain stable signal transmission over long distances. Supporting HDMI 2.0, the cable enables up to 4K at 60Hz with HDR, delivering clear images and accurate color for gaming, home theater and professional AV setups. The detachable connector design includes both Micro HDMI (Type D) and Standard HDMI (Type A) interfaces, increasing compatibility with cameras, laptops, projectors, monitors and TVs. The lightweight fiber optic construction resists electromagnetic interference and simplifies installation in confined or large spaces.

Advantages

The detachable Type D and Type A connectors eliminate the need for multiple cables while preserving HDMI 2.0 features such as HDR10 and HLG. Active optical technology supports long-range transmission up to 100 m while maintaining bandwidth up to 18 Gbps. Zinc alloy housing and gold-plated contacts ensure reliable mechanical durability and consistent signal quality. Note that this AOC cable is unidirectional: it transmits from source to display only, so direction must be observed during installation.

Key specifications

• Connector: HDMI Type-A (Standard) Male to HDMI Type-D (Micro) Male, straight
• HDMI version: 2.0
• Maximum resolution: up to 4K @ 60Hz with HDR
• Bandwidth: up to 18 Gbit/s
• Features supported: HDR10, HLG, HDCP 2.2, HDCP 1.4, 3D, EDID, HEC (HDMI Ethernet Channel), CEC, ARC
• High Speed with Ethernet (HEC)
• Transmission type: active optical cable (AOC), single-direction (source → display)
• Maximum range of active optical leads: up to 100 m (product example includes 15 m length)

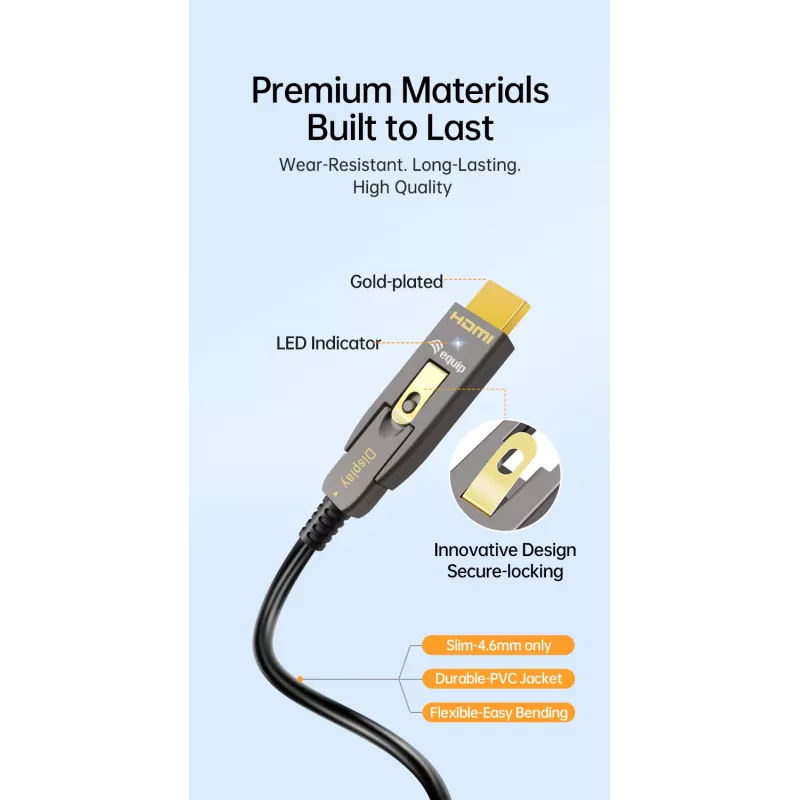

• Housing: zinc alloy
• Connectors: gold plated
• Color: black

How to use

Identify the direction arrows or markings on the cable to ensure correct orientation: the cable transmits signal from the source (player, laptop, camera) to the display (monitor, projector, TV). Connect the appropriate HDMI Type-D or Type-A end to your source device and the other end to the display. Power and on-screen settings should be configured on connected devices as required (set output resolution, enable HDR if supported). Route the lightweight fiber optic cable avoiding sharp bends and extreme kinks; maintain a gentle bend radius for reliable operation.

Recommendations

Verify that both source and display support HDMI 2.0 features (4K@60Hz, HDR formats and HDCP versions). For long runs, confirm the cable direction before installation and avoid tight bends; if using the product in critical AV installations, test the connection at the intended length and resolution prior to final deployment.
