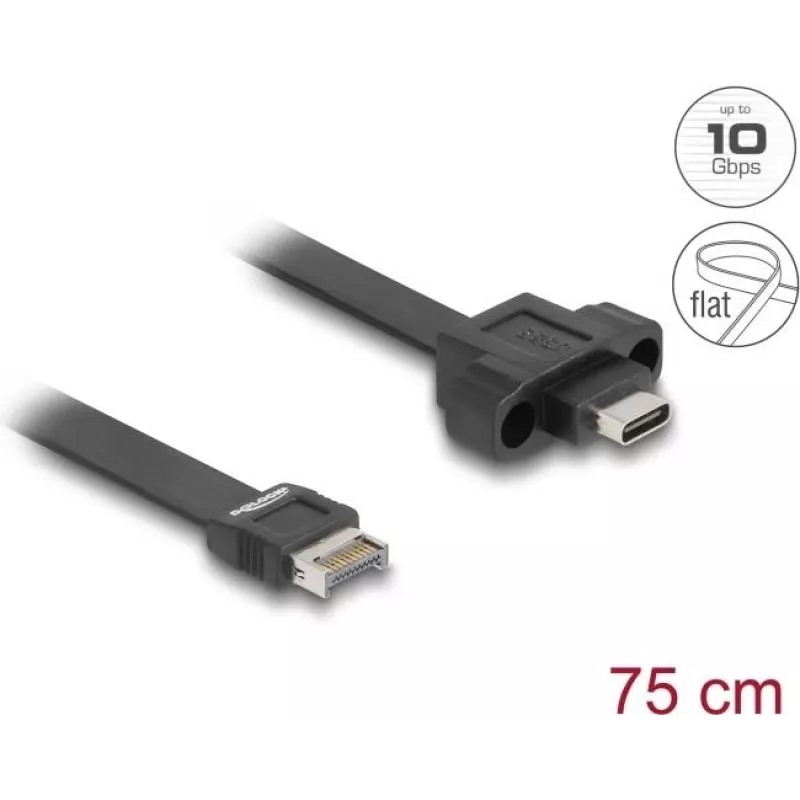

Cable plano USB DeLOCK Type-E Key A de 20 pines conector macho a conector hembra USB Type-C 75 cm

This Delock cable connects to an internal USB 10 Gbps Type-E Key A 20‑pin socket on a motherboard or PCIe card and extends a USB connection to an externally accessible USB Type-C female panel-mount. The flat 75 cm cable supports USB 3.2 Gen 2 (3.1 Gen 2) speeds and allows installation of a USB Type-C connector on a slot bracket or chassis with matching screw holes.

Advantages

The flat design allows neat routing inside the case and reduces cable bulk. Support for USB 3.2 Gen 2 provides up to 10 Gbps transfer rates. The USB Type-C female connector can be fixed with two screws for secure panel mounting. Compatibility with internal Type-E Key A 20‑pin sockets makes it suitable for modern motherboards and PCIe USB expansion cards.

Suitable for

• Extending an internal USB 10 Gbps connection to a rear chassis or slot bracket
• Adding an externally accessible USB Type-C port from a motherboard or PCI Express card
• Neat cable routing inside compact PC cases

Key specifications

• Brand: DELOCK
• Model / MPN: 85760
• EAN: 4043619857609
• Connector 1: USB Type-E (20 pin, Key A)
• Connector 2: USB Type-C female (panel-mount, screwable)
• USB version: USB 3.2 Gen 2 (3.1 Gen 2), up to 10 Gbps
• Cable length: 0.75 m (75 cm)

How to use

Plug the 20‑pin Type‑E Key A male connector into the corresponding internal USB header on the motherboard or into the matching socket on a PCIe USB expansion card. Position the USB Type‑C female connector at the desired slot bracket or chassis recess and secure it with the two screws. Route the flat cable inside the case to avoid sharp bends and to keep airflow unobstructed.

Recommendations

Use this cable for data connections requiring USB 3.2 Gen 2 speeds; ensure the host header or card supports USB 3.2 Gen 2 to achieve maximum transfer rates. Avoid excessive bending near connectors and secure the panel-mount with both screws for stable mounting.
