Cable Profinet ACT Industrial 1,50 m conector macho RJ45 a conector macho RJ45 Cat6A negro azul

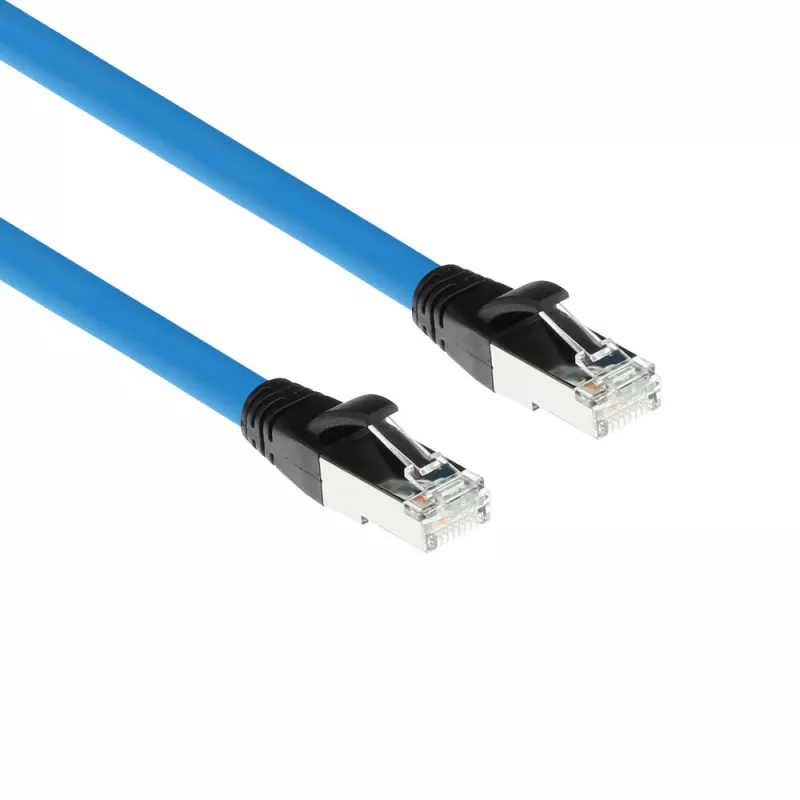

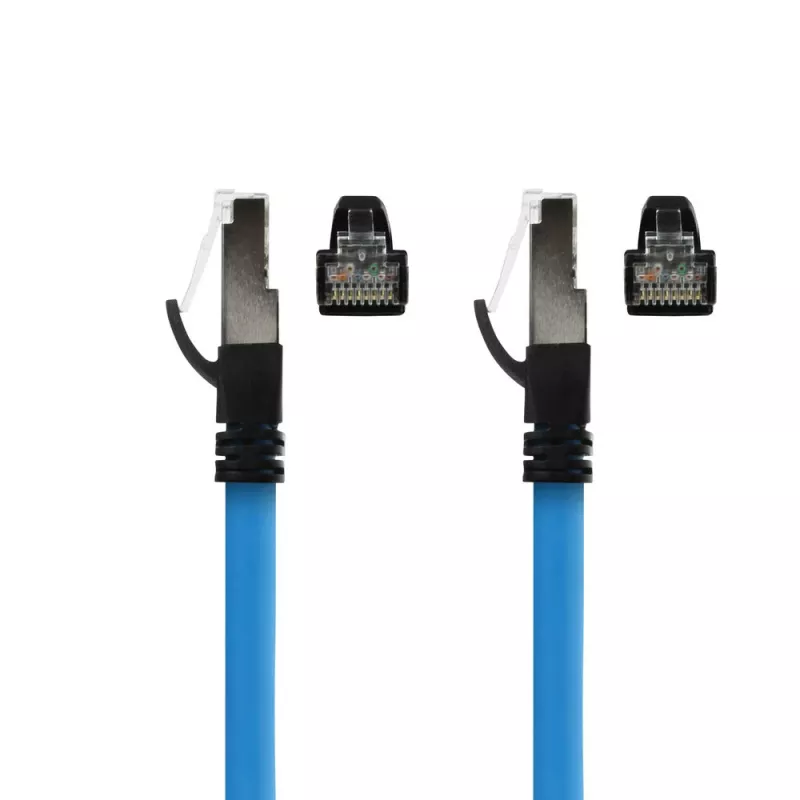

The ACT Industrial Profinet Cable 1.50m is a Cat6A straight-through Ethernet cable with RJ45 male connectors on both ends, designed for reliable industrial network connections. The cable uses Superflex SF/UTP (S-FTP) construction with each conductor made of 28 copper strands (AWG26), providing increased flexibility compared with standard AWG24/7 patch cables. The outer sheath and overmoulded connectors are made of TPE (thermoplastic elastomer) and the assembly is rated to IP67 for protection against dust and temporary immersion in water.

Advantages

The TPE sheath and overmoulded TPE connectors give enhanced mechanical resistance and durability in moving applications, such as drag chains. Superflex stranded conductors improve bendability and reduce fatigue from repeated movement while gold-plated RJ45 contacts ensure consistent conductivity and corrosion resistance. Shielding (SF/UTP / S-FTP) reduces electromagnetic interference for stable Profinet data transmission.

Suitable for

Key specifications

How to use

Connect one RJ45 male end to the Profinet or Ethernet port of your device and the other end to the corresponding port on the switch, PLC, or network device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid sharp edges and excessive compression; when used in moving applications or drag chains, allow sufficient bending radius consistent with the cable’s flexibility.

Recommendations

For best performance, use this Cat6A shielded cable in installations that require high-speed Profinet communication and mechanical flexibility. Avoid tight bends below the manufacturer’s recommended radius and protect the cable from prolonged exposure to oils or chemicals not compatible with TPE.
