OBO BETTERMANN 6178003 Canaleta de cables 2000x15x30 mm gris PVC ranurada

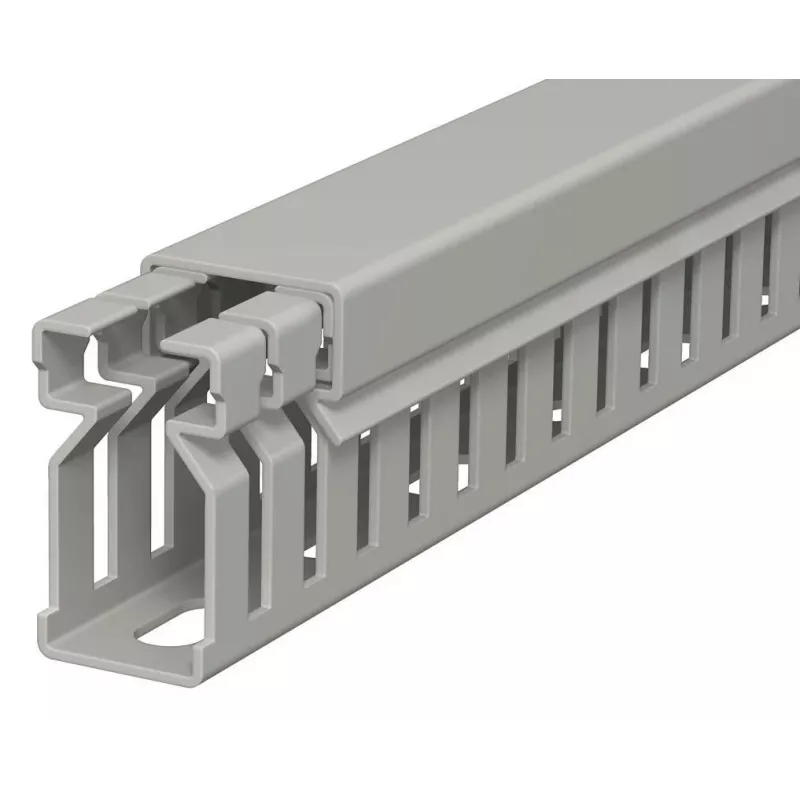

The OBO BETTERMANN 6178003 is a slotted PVC wiring duct from the PIK-Kanal series, offering a compact 15 mm width and 30 mm height for neat cable routing in tight spaces. Its 2000 mm length provides ample coverage for control panels and distribution boards, while the grey RAL 7035 finish blends with standard enclosures.

Highlights

• Slotted duct with 4 mm slot width and 6 mm finger spacing for easy cable breakout
• Made of rigid PVC, flame-retardant to UL94 V-0
• Operates from -25°C to +60°C
• Mounts with screws (sold separately)
• Lid not included – order separately for complete protection

In daily use

This duct keeps wiring organized and accessible. The slotted design allows cables to exit at any point, simplifying modifications. Its grey colour matches common industrial enclosures, and the PVC material resists wear in indoor environments.

Full specifications

• Product Type: Wiring Duct
• Material: PVC (Polyvinyl Chloride)
• Colour: Grey (RAL 7035)
• Duct Type: Slotted
• Slot Width: 4 mm
• Finger Spacing: 6 mm
• Halogen-free: No
• Flammability Rating: UL94 V-0
• Operating Temperature: -25°C to +60°C
• Mounting Type: Screw Mounting
• Lid Included: No (Lid sold separately)
• Certifications: RoHS, CE, UL, VDE
• Length: 2000 mm
• Width: 15 mm
• Height: 30 mm
• Series: PIK-Kanal

Final note

A reliable choice for professional cable management in compact installations.
