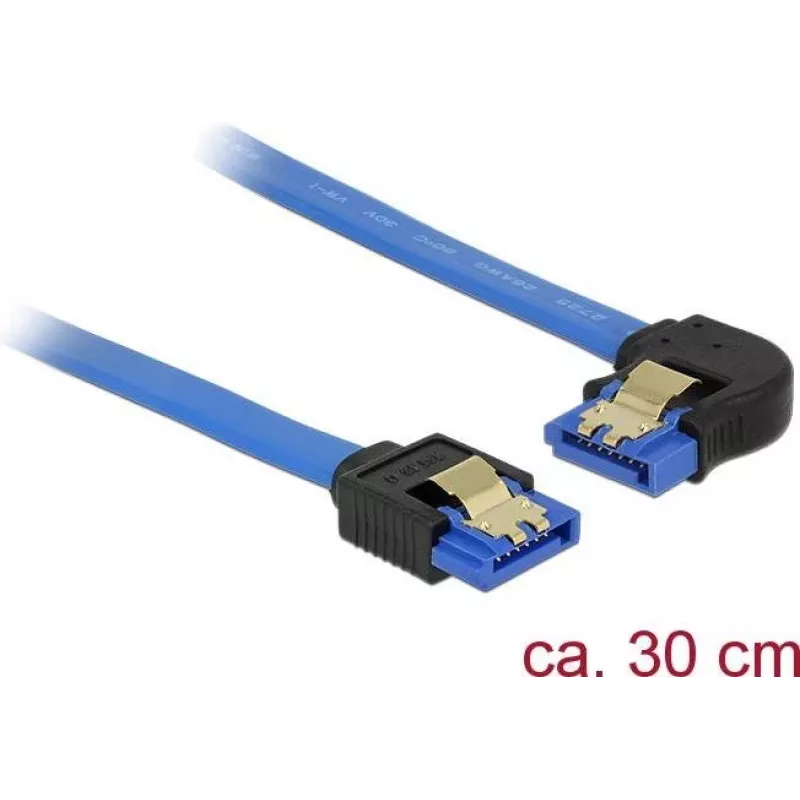

Cable SATA DeLOCK 84984 0,3 m SATA 7-pin negro azul

This SATA cable by Delock enables internal connection of SATA devices such as HDDs, controller cards or flash memory. The cable is 0.3 m long, uses a SATA III 7-pin interface and supports data transfer rates up to 6 Gb/s while remaining backward compatible with earlier SATA versions. The cable has a black and blue design and metal clips on the connectors for a secure connection; when connected to a HDD the cable will be led to the left.

Advantages

The DeLOCK 84984 SATA cable supports SATA III speeds up to 6 Gb/s and is backward compatible with previous SATA standards. Its metal locking clips provide a reliable audible click and secure fit. The short 0.3 m length reduces cable clutter inside the PC and the dual-colour design (black and blue) identifies the cable easily during installation.

Suitable for

• Connecting internal SSDs and HDDs to motherboard or controller cards
• Upgrading or assembling desktop PCs and workstations
• Replacing worn or damaged internal SATA cables

Key specifications

• Cable type: SATA III
• Connector 1: SATA 7-pin
• Connector 2: SATA 7-pin
• Cable length: 0.3 m
• Data transfer rate: up to 6 Gb/s
• Product colour: Black, Blue
• Manufacturer (brand): DELOCK, MPN: 84984

How to use

Power off the system and disconnect it from the mains before installation. Align the 7-pin SATA connectors with the device and motherboard or controller card ports, then press the connectors until the metal clips audibly click into place. When connecting to a HDD note that the cable will be routed to the left. After installation, reconnect power and boot the system to verify the device is recognised.

Recommendations

Use the cable inside a computer chassis for internal SATA connections only. Avoid bending the cable sharply and keep it away from heat sources or moving parts. For maximum transfer rate ensure both connected devices support SATA III (6 Gb/s); otherwise the connection will operate at the lower supported speed.
