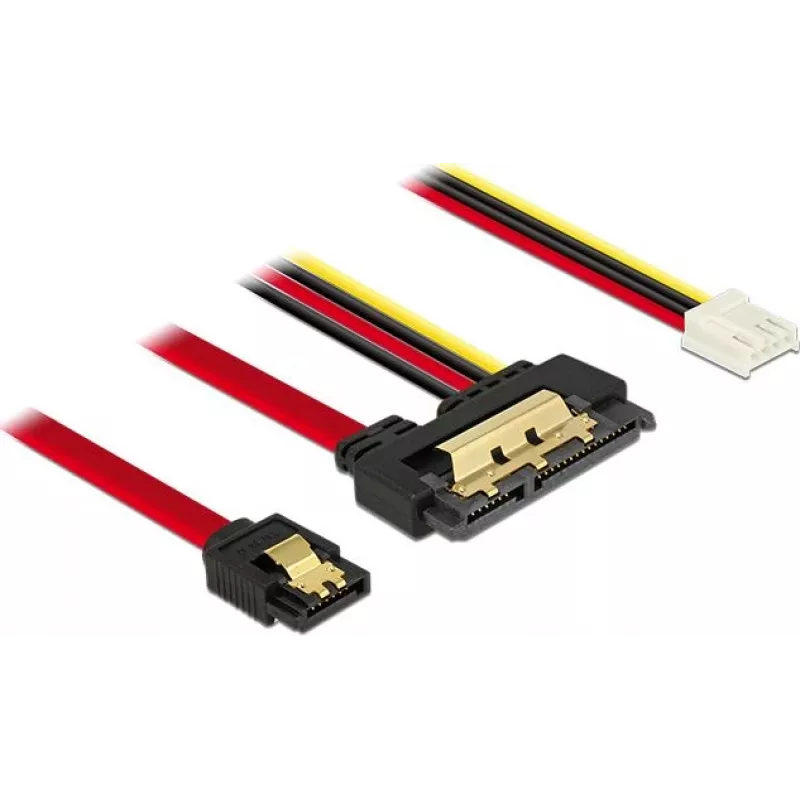

Cable SATA DeLOCK 85234 0,3 m SATA 7 pines + Molex 4 pines SATA 22 pines negro

Delock SATA cable 0.3 m (model 85234) provides a combined data and power connection by pairing a SATA 7-pin data connector and a Molex 4-pin power connector on one end with a 22-pin SATA device connector on the other. The cable supports SATA III data rates up to 6 Gbps and has metal locking clips on the SATA receptacles for a secure connection. Its compact 30 cm length and black finish suit installations in confined PC interiors.

Advantages

The cable supports SATA III speeds (6 Gbps) and supplies power via a standard Molex 4-pin plug, allowing connection of older or specialized 22-pin SATA devices to a motherboard with an available SATA data port and a Molex power lead. Metal clips on the SATA connectors ensure a firm, audible snap when connected, and the short 0.3 m length reduces cable clutter inside the chassis.

Suitable for

• Connecting a device with a 22-pin SATA interface to a motherboard SATA 7-pin port
• Powering SATA devices from a Molex 4-pin power connector
• Use in small or compact PC cases where a short cable is required

Key specifications

• Cable type: SATA III
• Data rate: up to 6 Gbps
• Cable length: 0.3 m (30 cm)
• Connectors: SATA 7-pin + Molex 4-pin (one end) → SATA 22-pin (other end)
• Colour: Black

How to use

Connect the SATA 7-pin plug to an available SATA data port on the motherboard and insert the Molex 4-pin plug into a free Molex power connector from the power supply. Attach the SATA 22-pin connector to the target device’s SATA socket until the metal clip engages. Ensure the system is powered off when making connections and confirm secure seating before powering on.

Recommendations

Use this cable in systems where a direct SATA data connection and Molex power are required. Avoid excessive bending near the connectors and route the cable to prevent contact with moving parts. Verify compatibility of the 22-pin device connector with your hardware before installation.
