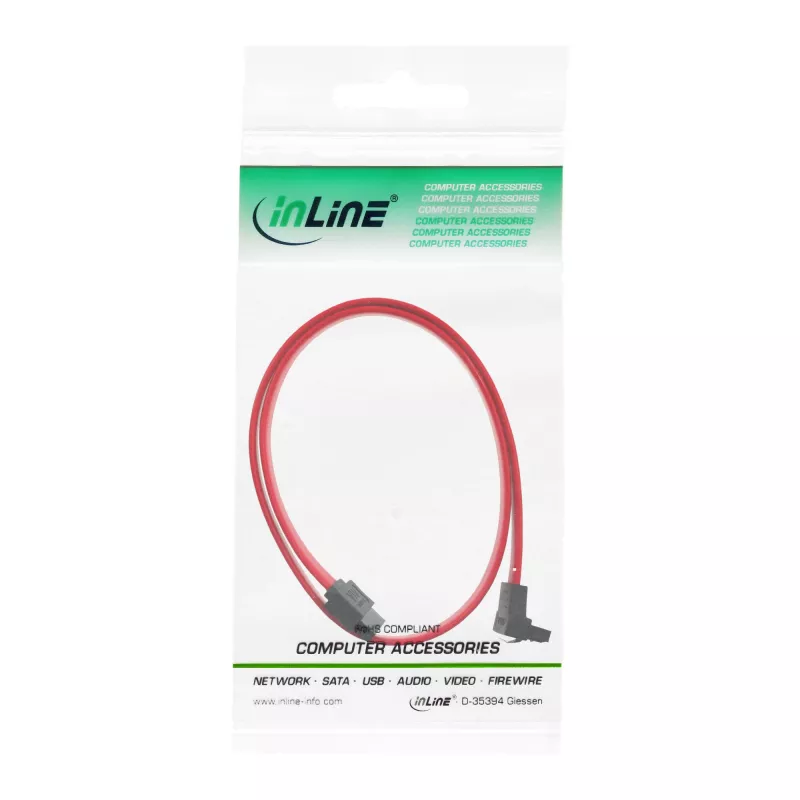

Cable SATA InLine para conexiones S-ATA 150 / 300 / 600 en ángulo con bloqueos 90° 0,7 m

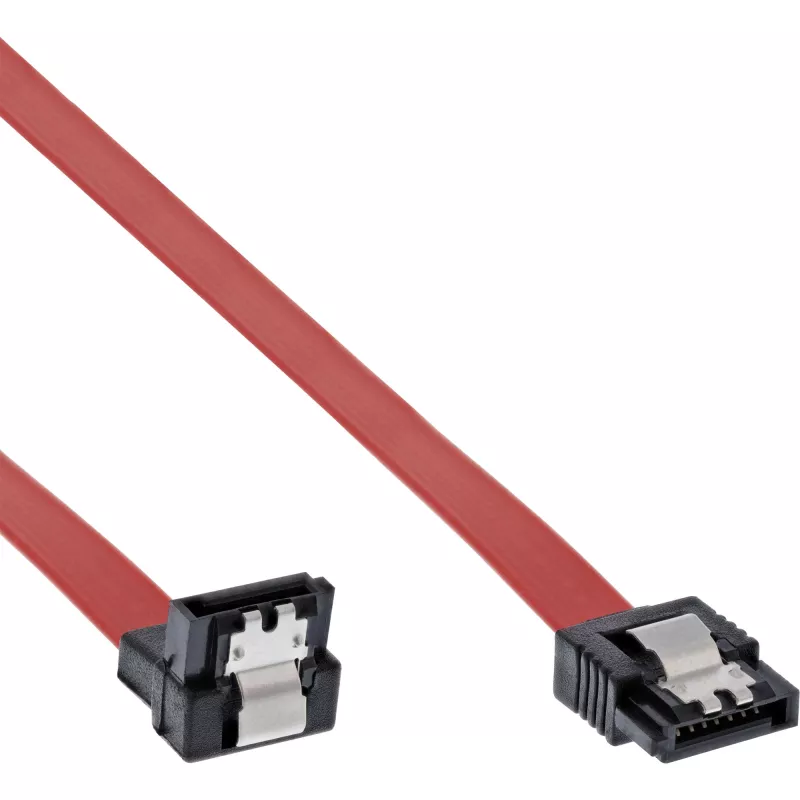

The InLine SATA Cable 90° 0.7m Red 27707V is a right-angled internal data cable designed for connecting SATA storage devices in confined spaces. It has a 90° connector and a 0.7 m length, and it supports SATA transfer rates of 150, 300 and 600 MB/s while providing a secure latched connection.

Advantages

The angled connector enables easy routing and installation in tight computer cases where straight connectors may not fit. Latches on the connectors ensure a reliable mechanical connection to SATA drives and controllers. The 0.7 m length offers a balance between reach and minimal cable clutter, and the red jacket makes cable identification easier during assembly or maintenance.

Suitable for

• Internal connection of 2.5" and 3.5" SATA hard drives and SSDs
• Systems with limited space or crowded drive bays
• PC builds requiring color-coded cabling or visible cable routing

Key specifications

• Connector angle: 90°
• Length: 0.7 m
• Supported SATA speeds: 150, 300, 600 MB/s
• Connector feature: latches for secure connection
• Product colour: Red
• Brand / MPN: InLine / 27707V
• EAN: 4043718090419

How to use

Align the 90° SATA connector with the SATA port on the drive or motherboard and press until the latch clicks into place. Route the cable carefully to avoid sharp bends and to maintain airflow inside the case. To remove, press the latch and gently pull the connector from the port.

Recommendations

Use the angled connector on the drive side when space constraints are near the drive bay; avoid excessive bending near the connector and keep the cable away from fans or hot components to preserve signal integrity and cable life.
