Cable telefónico InLine 12 hilos rígido instalación 6x2x0,6mm apantallado 25 m

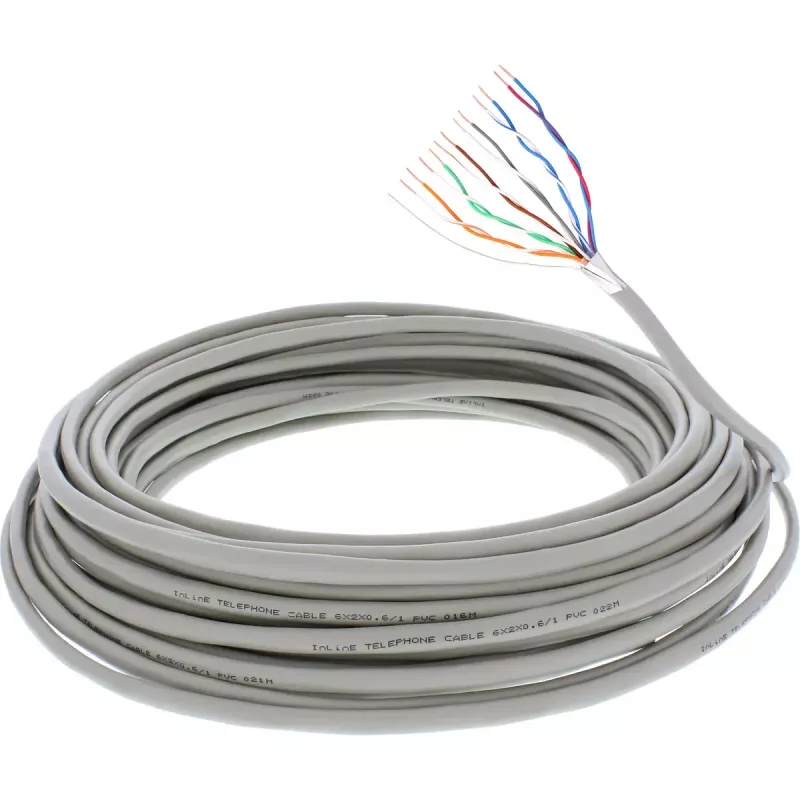

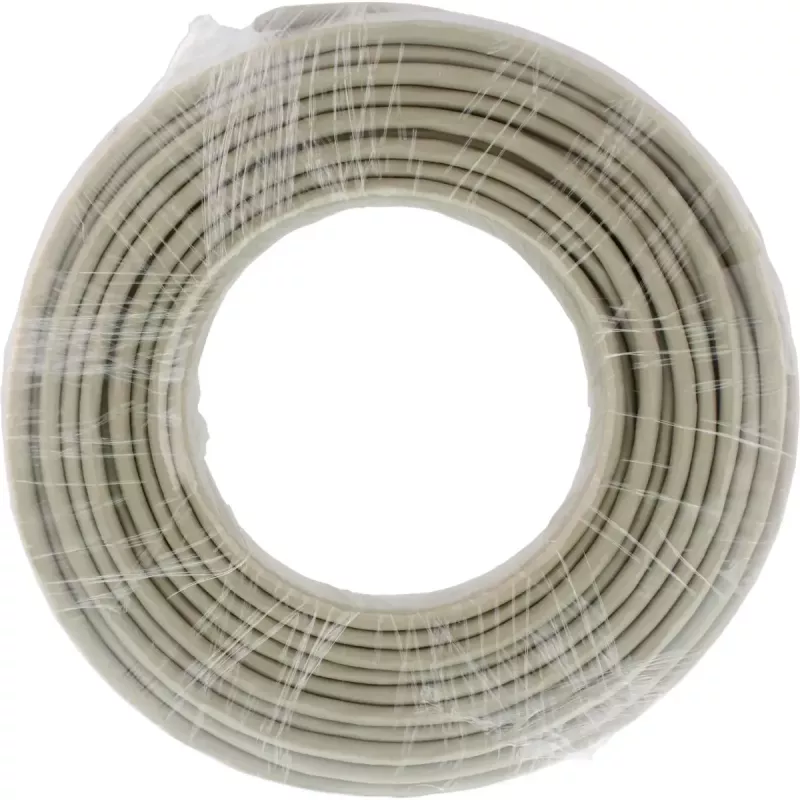

The InLine Telephone Cable 12 wire solid installation 69977C is a 25 m shielded telephone installation cable with 6 twisted pairs (6x2x0.6 mm) and a beige PVC jacket. Conductors are made of CCA (Copper Clad Aluminum) to provide a cost-effective alternative to solid copper while maintaining reliable signal transmission. The cable includes an overall foil shield with a drain wire for improved interference protection and easier grounding during installation.

Advantages

This shielded telephone cable combines CCA conductors and full foil shielding to offer good signal integrity at a lower cost than pure-copper cables. The pairs are color-drilled for quick pair identification, and the 0.5 mm PVC jacket provides mechanical protection and a neutral beige appearance suitable for residential and commercial environments.

Suitable for

• Fixed telephone line installations in homes and offices
• Internal wiring for PBX and analog telephone systems
• Low-frequency voice and data transmission where shielded cabling is preferred

Key specifications

• Length: 25 m
• Configuration: 6 pairs (12 solid wires), 6x2x0.6 mm
• Conductor material: CCA (Copper Clad Aluminum)

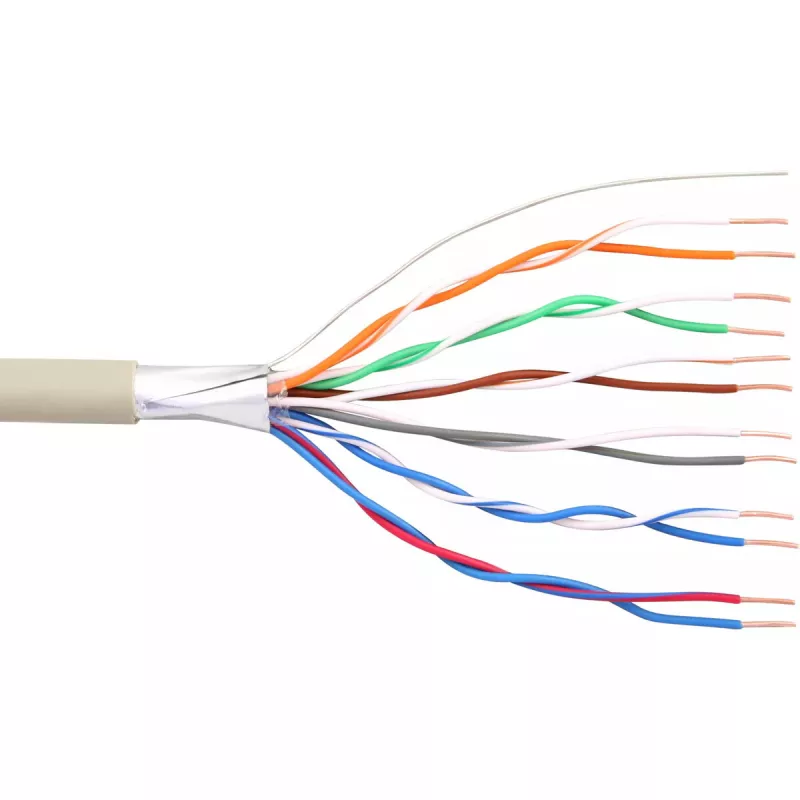

• Shielding: overall foil shield with drain wire
• Jacket: 0.5 mm PVC, beige
• Brand / MPN / EAN: InLine / 69977C / 4043718198627

How to use

Measure and cut the required length, strip the outer PVC jacket carefully to expose the foil shield and drain wire, and separate the pairs needed for termination. Ground the drain wire to the system ground to maintain shield effectiveness. Terminate each solid conductor to the corresponding terminal or connector following the standard color code for telephone wiring.

Recommendations

Use this cable for indoor fixed-line telephone and low-frequency voice/data installations. Avoid routing the cable alongside high-voltage power lines to reduce interference, and ensure proper grounding of the drain wire. For installations requiring maximum conductivity or long-distance low-loss runs, consider pure copper conductors instead of CCA.
