Cable USB DeLOCK 81526 3 m Mini-USB B USB A negro USB 2.0

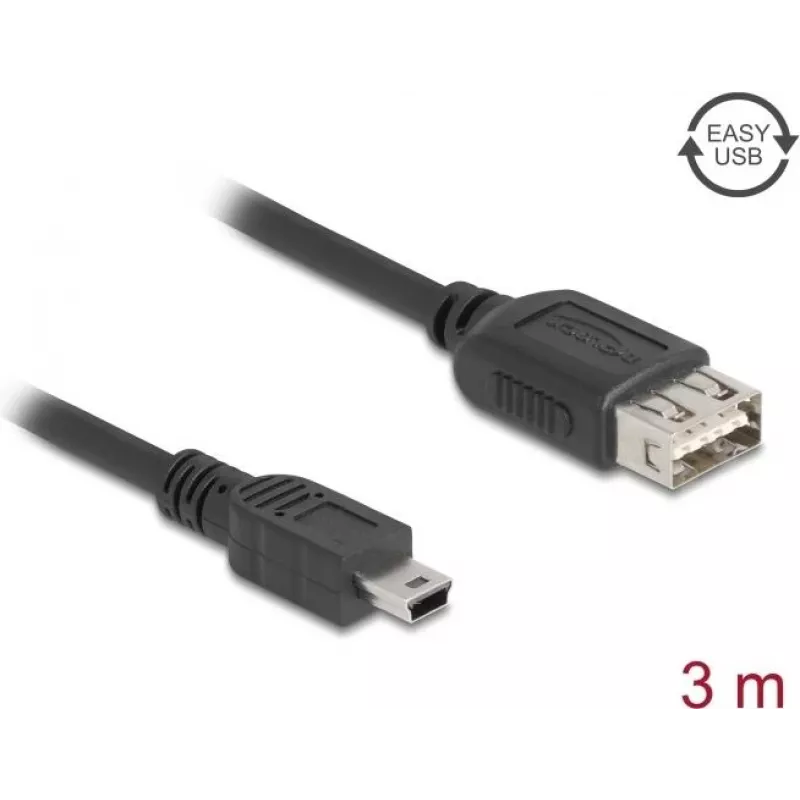

This cable by Delock enables connection between USB devices such as memory sticks or external hard drives and devices with a Mini-USB B port. It is a 3 m USB 2.0 cable with Mini-USB B straight male on one end and USB A straight female on the other, featuring gold-plated contacts and a black jacket.

Advantages

The reversible EASY USB female connector is twist-proof and can be inserted on either side, eliminating the need to check top or bottom when connecting. The cable supports USB 2.0 data transfer rates (up to 0.48 Gbit/s) and provides a simple solution for extending or adapting connections between Mini-USB B devices and standard USB A ports.

Suitable for (tasks / use cases)

• Connecting portable devices with Mini-USB B ports (e.g., older cameras, GPS units) to USB A hosts
• Accessing data on memory sticks or external hard drives via a Mini-USB B equipped device
• Extending reach between a Mini-USB B device and a computer or charger

Key specifications

• Length: 3 m
• Connector 1: Mini-USB B (straight male)
• Connector 2: USB A (straight female, reversible EASY USB)
• USB version: USB 2.0 (up to 0.48 Gbit/s)
• Contact plating: gold-plated contacts
• Colour: Black

How to use

Insert the Mini-USB B male connector into the Mini-USB port of your device and plug the EASY USB A female end into a compatible USB A cable or adapter. The reversible EASY USB female connector can be used on either side; align and insert without checking orientation. Ensure both connected devices are powered off when plugging or unplugging if required by the device manufacturer.

Recommendations

For stable data transfer, avoid sharp bends and excessive tension on the cable. Use at USB 2.0 speeds; compatibility with USB 3.x is not specified. Store the cable coiled loosely to prevent damage to the connectors and jacket.
