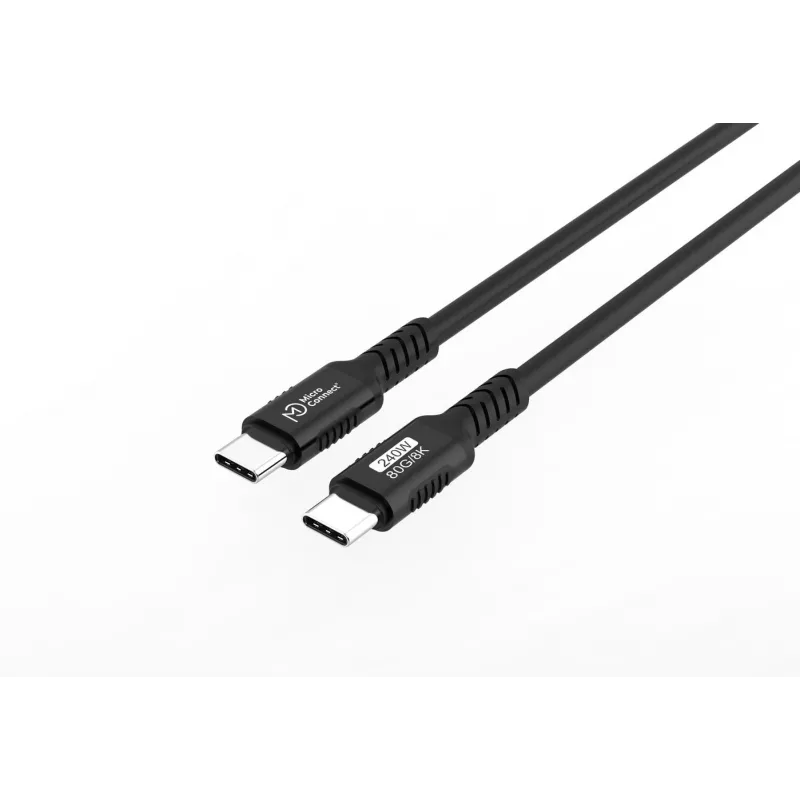

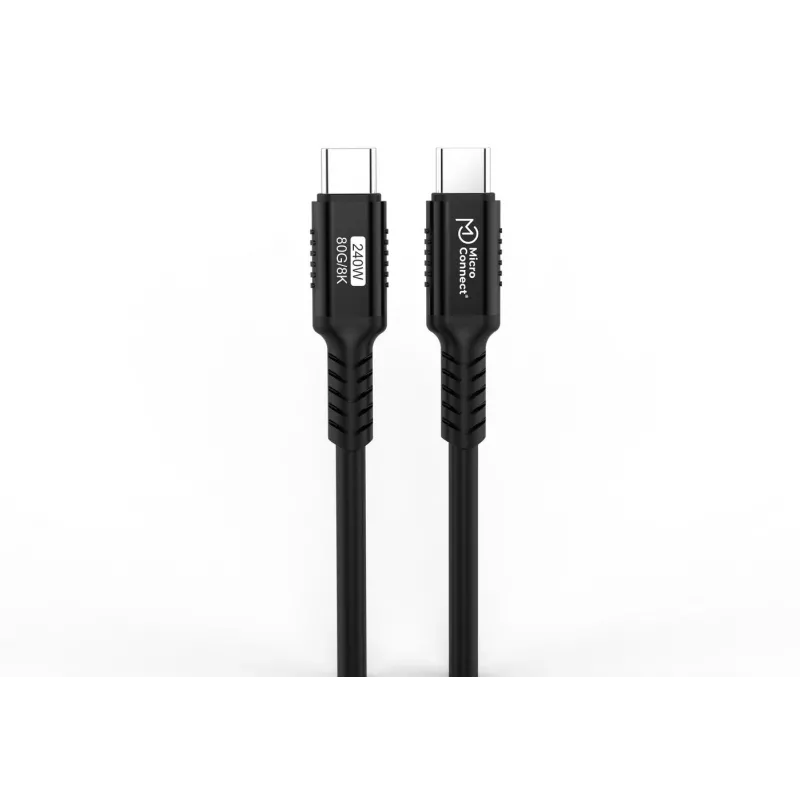

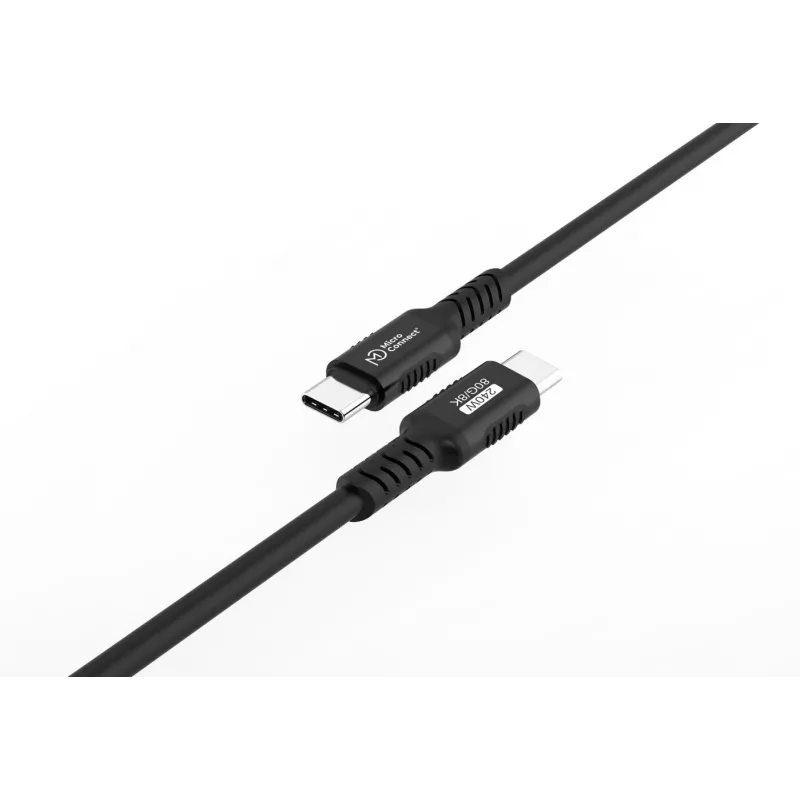

Cable USB MicroConnect MC-USB4-CC80LQ-0.15 — Cable de datos USB, modelo MC-USB4-CC80LQ-0.15

Microconnect MC-USB4-CC80LQ-0.15 is a USB4 Gen 3x2 cable designed to deliver high-power charging and ultra-fast data transfer. The cable supports up to 240W (48V/5A) power delivery for charging demanding laptops, monitors and peripherals, while providing data speeds up to 80 Gbps and video capabilities suitable for 8K at 60 Hz. The outer jacket is made from liquid silicone for improved flexibility, a smooth feel and reduced tangling.

Advantages

This cable combines high-power charging and USB4 Gen 3x2 data throughput in a single connector, enabling simultaneous fast charging, video output and high-bandwidth data transfer. The liquid silicone jacket increases flexibility and handling comfort while offering greater resistance to kinks and tangles. Compatibility with DisplayPort 2.1 alt mode and DisplayLink, plus interoperability with Thunderbolt 4 devices, broadens its use with modern laptops, docking stations and monitors.

Suitable for

• Charging high-power laptops and monitors (up to 240W)
• Connecting external displays at up to 8K60Hz via DP2.1 alt mode
• High-speed data transfer and large file movement (up to 80Gbps)
• Use with Thunderbolt 4-compatible systems and DisplayLink adapters
• Desktop and mobile workstation setups requiring a flexible, tangle-resistant cable

Key specifications

• USB4 Gen 3x2 data standard, up to 80 Gbps
• Power Delivery up to 240W (48V/5A)
• Video support up to 8K at 60 Hz via DP2.1 alt mode
• Compatible with Thunderbolt 4 devices
• Supports DisplayPort 2.1 alt mode and DisplayLink
• Liquid silicone outer jacket for flexibility and reduced tangling
• Cable length: 0.15 m

How to use

Connect the cable between a USB4-compatible host or power source and a USB4-capable device, ensuring both endpoints support the required power and alternate mode features. For video output, enable the device’s DisplayPort or DisplayLink output as required by the host system. Confirm that the power source provides up to 48V/5A if high-wattage charging is needed. Handle the cable by its connectors and avoid sharp bends near the ends to preserve long-term performance.

Recommendations

Use this cable with devices and chargers that explicitly support USB4 Gen 3x2 and high-wattage Power Delivery to achieve the stated 80Gbps data throughput and 240W charging. Store the cable loosely coiled to maintain the liquid silicone jacket’s flexibility and avoid prolonged exposure to extreme temperatures or liquids.
