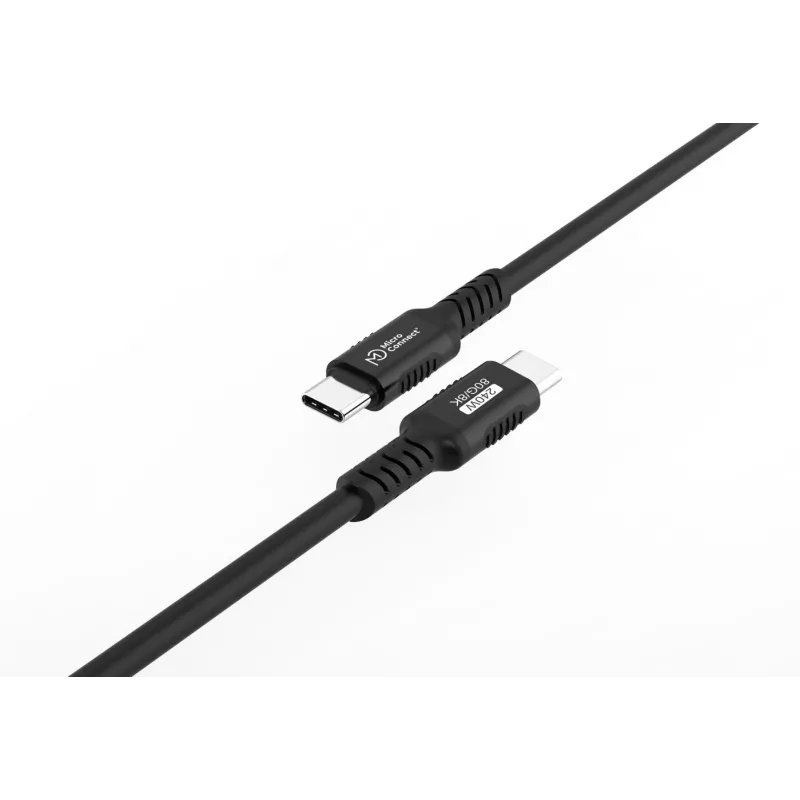

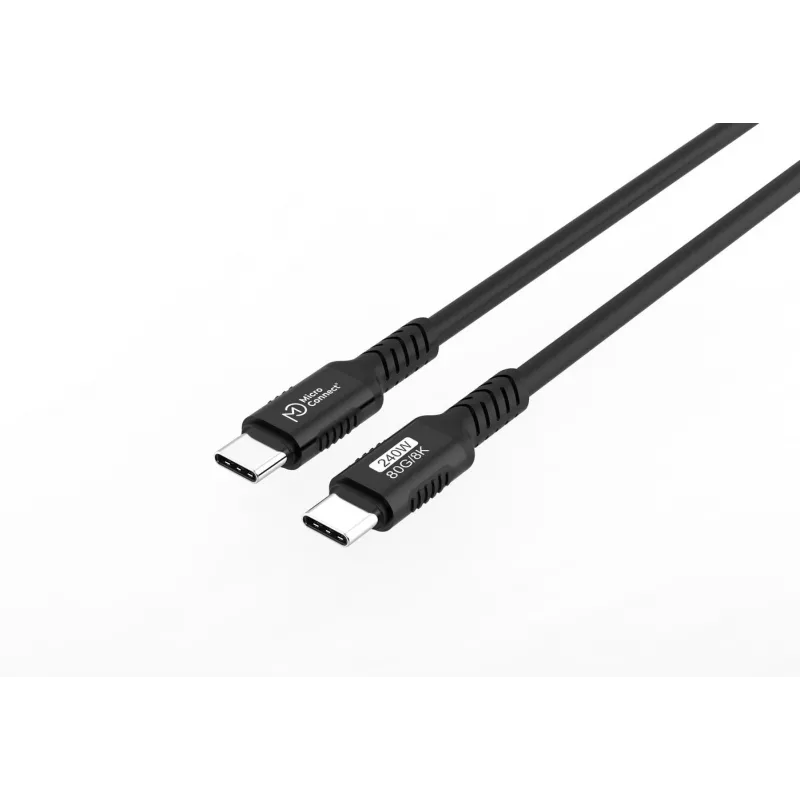

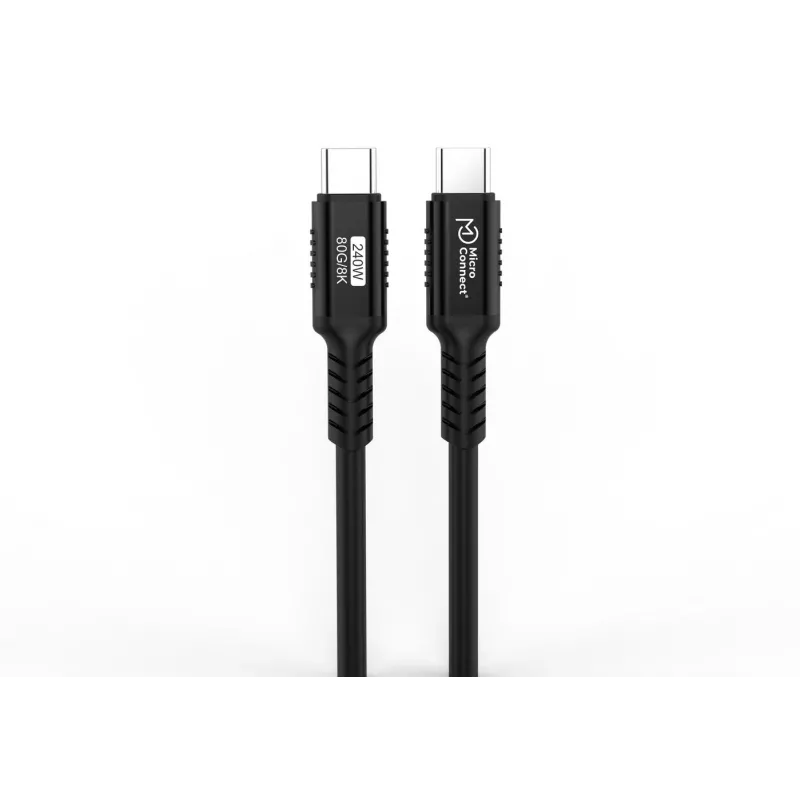

Cable USB MicroConnect MC-USB4-CC80LQ-1 — Cable de datos USB, longitud y tipos de conector no especificados

Microconnect MC-USB4-CC80LQ-1 USB cable delivers high-capacity charging and ultra-fast data transfer in a single USB4 Gen 3x2 connection. It supports up to 240W (48V/5A) power delivery for charging demanding laptops, monitors and other devices while enabling data rates up to 80 Gbps and video output at up to 8K60Hz. The cable features a liquid silicone jacket that provides a smooth feel, flexibility and improved resistance to tangling.

Advantages

The cable combines high-power charging and USB4 Gen 3x2 data performance with compatibility for Thunderbolt 4 and support for DP 2.1 alt mode and DisplayLink. Its liquid silicone outer layer increases flexibility and tactile comfort, reducing cable memory and making handling easier without compromising durability. The design supports high-resolution video, fast file transfers and powering high-consumption devices from a single connector.

Suitable for

• Charging high-power laptops and USB-C monitors requiring up to 240W
• Transferring very large files and backups at speeds up to 80 Gbps
• Connecting to external displays at up to 8K60Hz using DP 2.1 alt mode or DisplayLink adapters
• Using with Thunderbolt 4 compatible hosts and peripherals

Key specifications

• USB4 Gen 3x2 data interface with up to 80 Gbps throughput
• Power delivery up to 240W (48V/5A)
• Video support up to 8K at 60 Hz via DP 2.1 alt mode
• Compatibility with Thunderbolt 4 hosts and devices
• Support for DisplayLink display adapters
• Flexible liquid silicone outer jacket for improved handling

How to use

Connect the cable between a USB-C port on a host or charger and the USB-C port on your device or display. The cable negotiates power delivery and data modes automatically; ensure both connected devices support the required power and alternate mode (for example DP 2.1 or DisplayLink) to enable high-resolution video output. For maximum charging and data performance, use with compatible PD chargers and hosts that support USB4 Gen 3x2 or Thunderbolt 4.

Recommendations

To preserve cable life and performance, avoid sharp bends near the connectors, unplug by the connector body rather than pulling the cable, and store coiled loosely. Verify that both devices support the targeted power and data modes when using 240W charging or 8K video output.
