Cable USB Vivolink PROUSBCHDMIUSBB5-CHARGE 5 m carga de alta velocidad

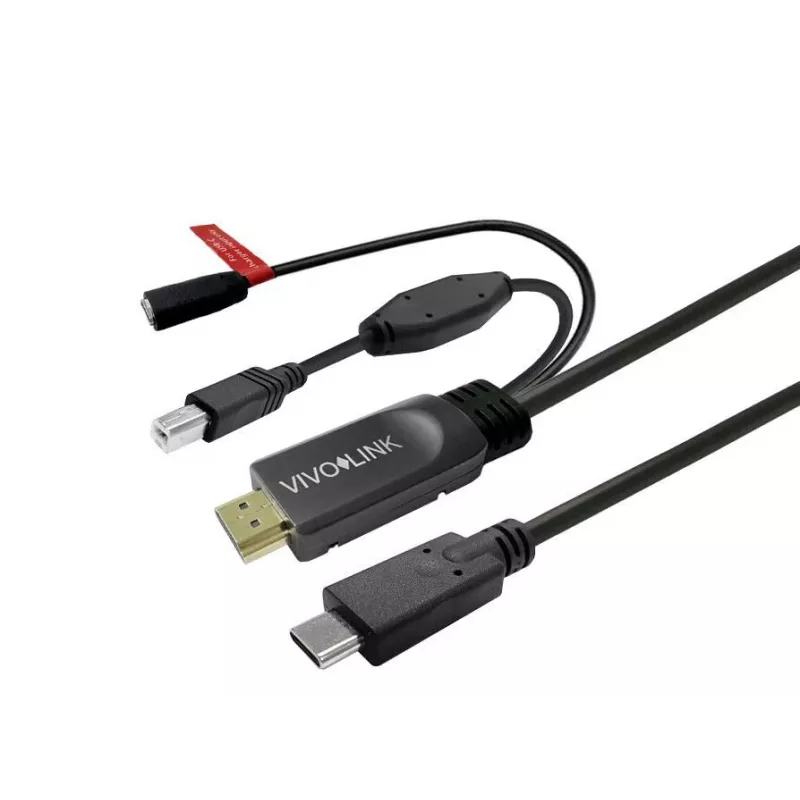

The Vivolink PROUSBCHDMIUSBB5-CHARGE is a 5 m high-performance USB-C cable that adapts new laptops with USB-C output to existing touchscreens. The cable contains an internal chipset that converts the USB-C host signal to an HDMI display signal supporting up to 4K resolution, and also provides USB-B connectivity to carry touchscreen touch-feedback to the laptop. A USB-C female power pass-through port on the cable allows a USB-C charger to be connected behind the screen so the laptop can be charged through the same cable.

Advantages

This single-cable solution combines video conversion, touch data transmission and power delivery, reducing cable clutter and simplifying installation. It supports 4K HDMI video output and delivers touch-feedback via the USB-B connector, while the integrated USB-C power pass-through enables laptop charging without additional cables to the user device.

Suitable for

• Connecting modern USB-C laptops to legacy touchscreens with HDMI and USB-B inputs
• Meeting AV requirements in meeting rooms, classrooms and public display installations
• Upgrading touchscreen connections to USB-C standard without replacing displays

Key specifications

• Length: 5 m
• Model: Vivolink PROUSBCHDMIUSBB5-CHARGE (MPN: PROUSBCHDMIUSBB5-CHARGE)
• EAN: 5715063330388
• Connectors: USB-C (host) to HDMI (display) + USB-B (touch data) with USB-C female for power passthrough
• Video: HDMI output supporting up to 4K resolution
• Functionality: Video conversion, touch feedback transmission, power delivery via USB-C pass-through

How to use

Connect the cable's USB-C host plug to the laptop's USB-C port. Plug the HDMI end into the touchscreen's HDMI input and connect the USB-B plug to the touchscreen's USB-B upstream port to enable touch input. If laptop charging is required, attach a USB-C charger to the cable's USB-C female port located near the screen; power will be passed through to the laptop while video and touch data are transmitted.

Recommendations

Use a USB-C charger that provides sufficient power for the laptop model in use and ensure all connectors are fully inserted. Avoid tightly coiling the cable when in use and keep it away from sharp edges or heat sources to maintain long-term performance.
