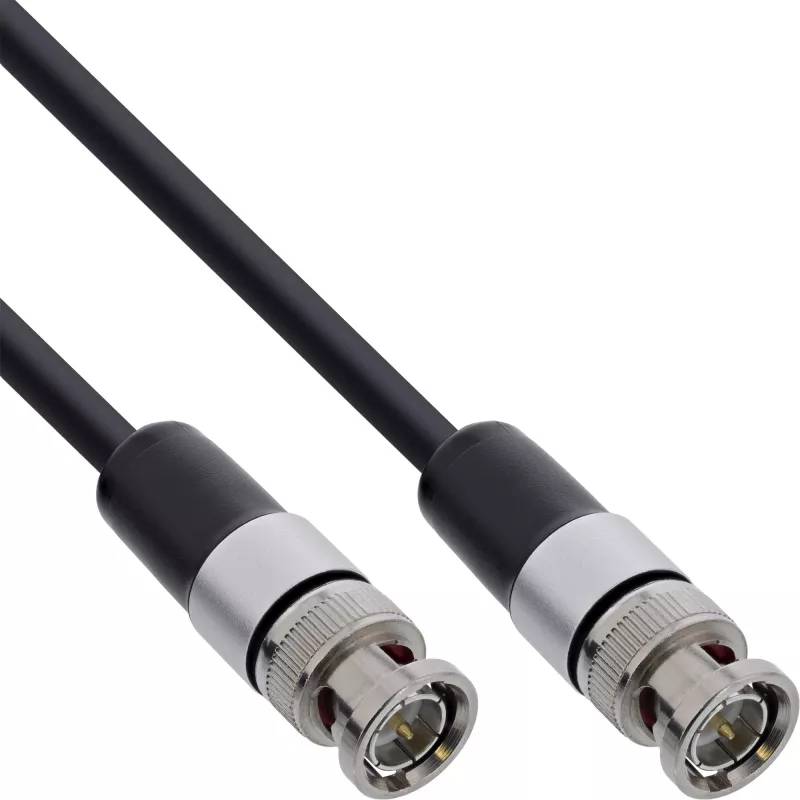

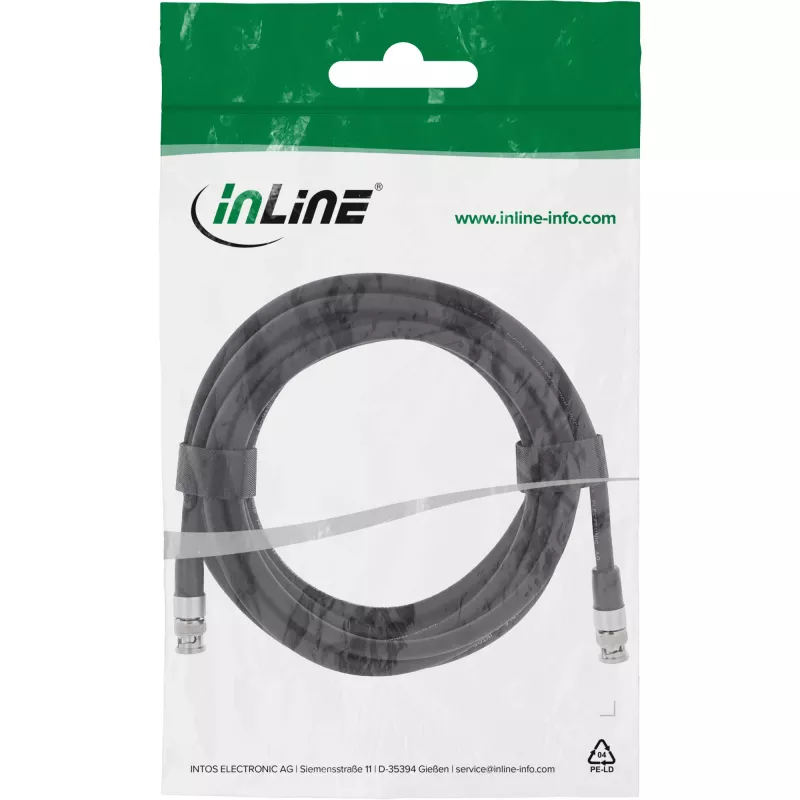

InLine Cable de vídeo BNC, 12G-SDI, 4K60Hz, 75 Ohm, 3 m, 10803S

The InLine BNC Video Cable, 12G-SDI, 4K60Hz, 75 Ohm, 3 m, 10803S is a coaxial cable designed for high-resolution video transmission. It supports 4K Ultra HD at 60Hz and data rates up to 12 Gb/s over a single 75 Ohm connection, and is compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI standards. The cable features double shielding to reduce interference and lockable BNC connectors for a secure connection.

Key features

• Supports 4K Ultra HD at 60Hz
• Data transmission rate up to 12 Gb/s
• 75 Ohm impedance
• Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
• Double shielding for minimised signal loss
• Lockable BNC connectors
• Round cable design
• Premium cable variant

Specifications

• Brand: InLine
• MPN: 10803S
• Connector 1: BNC plug
• Connector 2: BNC plug
• Impedance: 75 Ohm
• Maximum resolution: 4K @ 60Hz
• Data transmission rate: 12 Gb/s
• Length: 3 m
• Colour: Black
• Outer diameter: 7.8 mm
• Diameter: AWG 16
• Bending radius (static): 50 mm
• Bending radius (dynamic): 120 mm
• Operation temperature: -20 to +75°C
• Storage temperature: -20 to +60°C
• Signal: Video
• Design: Round cable
• Shielding: Double shielding
• Variant: Premium cable
• Country of origin: Taiwan
