Caja de conexión de fibra óptica DeLOCK 85922

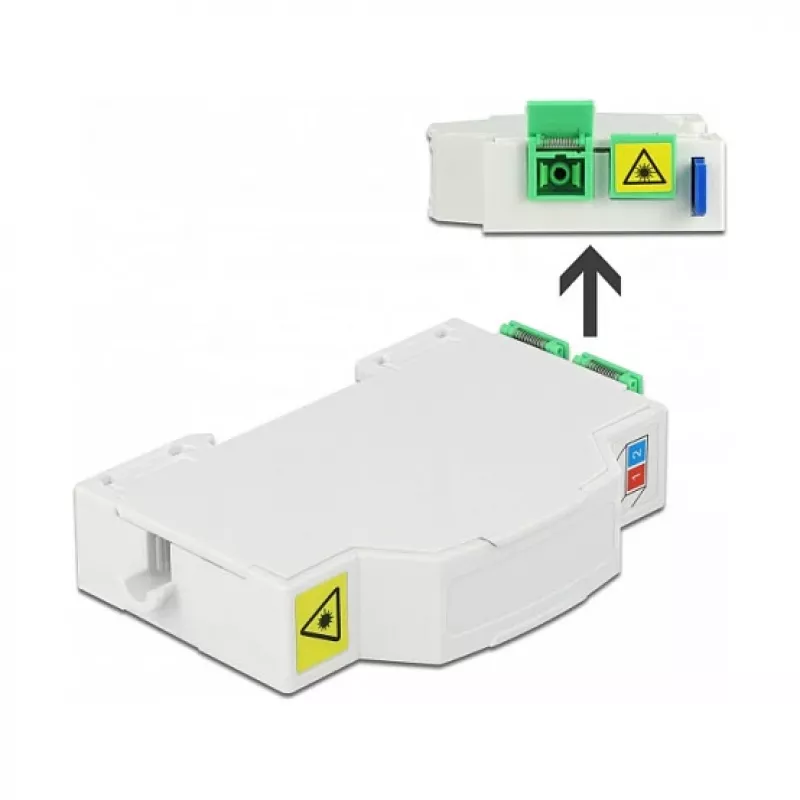

The DeLOCK Optical Fiber Connection Box 85922 is a compact enclosure for DIN rail mounting that holds up to two optical fiber connectors: either 2 x SC Simplex or LC Duplex. Constructed from durable ABS material, the box measures 60.5 mm (width) × 85 mm (depth) × 18.5 mm (height) and is supplied as a single unit. It is intended for organizing and protecting fiber terminations in industrial and telecom cabinets.

Advantages

This connection box provides a space-saving solution for fiber management on 35 mm DIN rails and supports both SC Simplex and LC Duplex connector types. The ABS housing offers mechanical protection while integrated clips enable quick and secure mounting. Its compact dimensions simplify installation in confined rack or cabinet spaces and help maintain orderly fiber routing.

Suitable for

• DIN rail fiber distribution in cabinets and control panels
• Terminating and protecting SC Simplex or LC Duplex connectors
• Compact installations where space is limited

Key specifications

• Brand: DELOCK
• Model / MPN: 85922
• EAN: 4043619859221

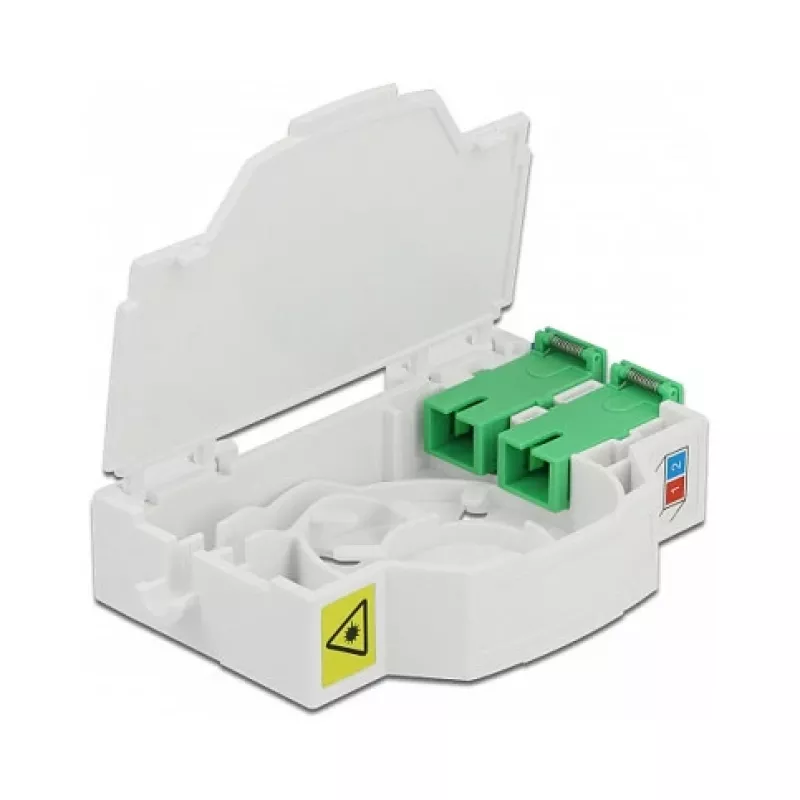

• Connector capacity: 2 x SC Simplex or LC Duplex
• Material: ABS

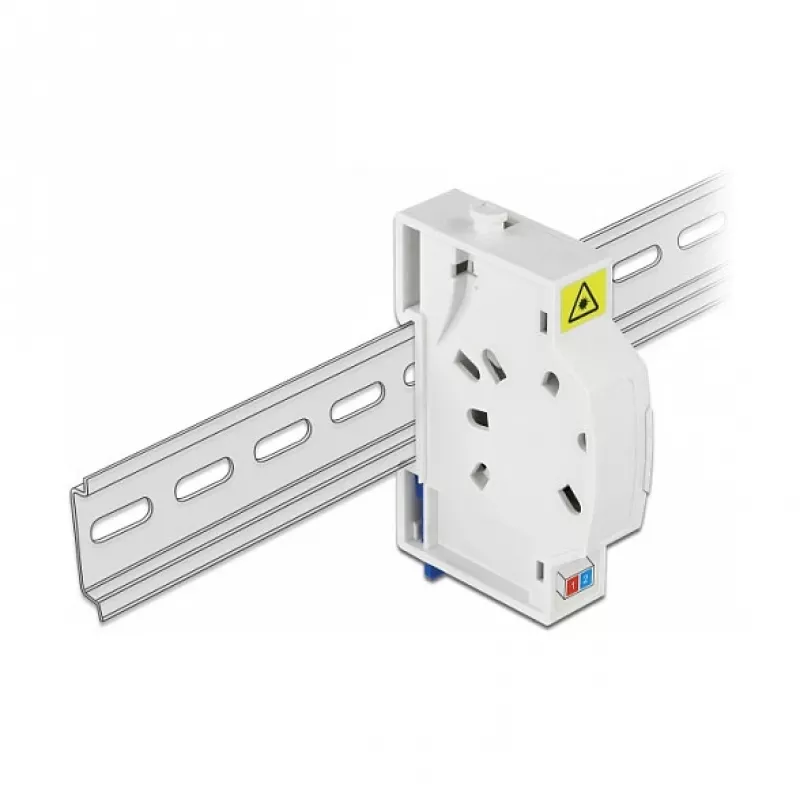

• Mounting: 35 mm DIN rail (integrated clips)
• Dimensions (W × D × H): 60.5 × 85 × 18.5 mm
• Pack: 1 unit

How to use

Mount the box onto a standard 35 mm DIN rail using the integrated clips until it snaps into place. Route the incoming fiber cables into the enclosure and terminate them with SC Simplex or LC Duplex adapters as required. Arrange and secure the fibers inside the box to avoid sharp bends, then close the enclosure to protect the terminations from mechanical stress and dust.

Recommendations

Install and service the DeLOCK Optical Fiber Connection Box in accordance with local safety and cabling standards. Avoid bending fibers beyond their minimum bend radius and ensure connectors are clean before mating to maintain optical performance.
