Caja de conexiones Hikvision DS-1280ZJ-DM8

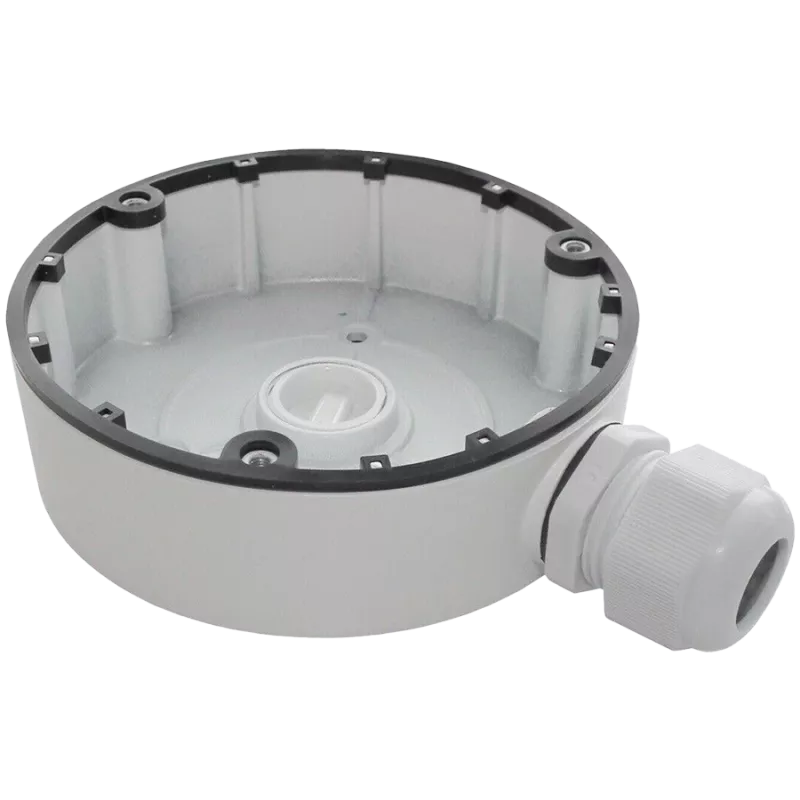

The Hikvision DS-1280ZJ-DM8 junction box is a compact mounting accessory designed for secure installation of compatible security cameras. It provides a stable metal housing that conceals wiring and creates a neat interface between the camera and its mounting surface. With a diameter of 12.7 cm and a low-profile height of 35 mm, the junction box supports camera units up to 2 kg and is offered in black and white finishes to match different installation environments.

Advantages

The junction box offers a durable construction that protects cable connections from weather and accidental disturbance while maintaining a discreet appearance. Its dimensions and weight capacity accommodate a wide range of dome and mini PTZ camera models. The option of two color finishes simplifies aesthetic integration with facades or mounting poles, and the design eases cable routing and secure fastening during installation.

Suitable for

• Concealing and protecting camera cables on outdoor and indoor wall mounts
• Mounting dome and compact PTZ cameras with a weight up to 2 kg
• Neat installations where a low-profile junction box is required
• Sites requiring basic protection of connection points from weather and tampering

Key specifications

• Material: corrosion-resistant metal housing
• Maximum supported camera weight: 2 kg
• Outer diameter: 12.7 cm
• Height: 35 mm
• Available colors: black and white
• Mounting: wall or pole interfaces compatible with Hikvision camera brackets

How to use

Position the junction box at the chosen mounting point and secure it to the surface using appropriate screws and anchors for the substrate. Route camera cables through the provided openings and make the necessary electrical and signal connections inside the box. After connecting, place the camera onto the junction box, align mounting holes, and fasten the camera according to the camera manufacturer’s installation instructions. Confirm that the mounted camera does not exceed the box's 2 kg capacity and that cable strain relief is in place.

Recommendations

For outdoor installations, use suitable waterproof cable glands and sealant at entry points to enhance weather resistance. Select the color that best matches the installation surface to minimize visual impact. Periodically inspect the junction box and connections for corrosion or loosened fasteners, and tighten or replace components as needed.
