Caja de dispositivo empotrable Kaiser Elektro 9264-22 68 mm x 62 mm Naranja

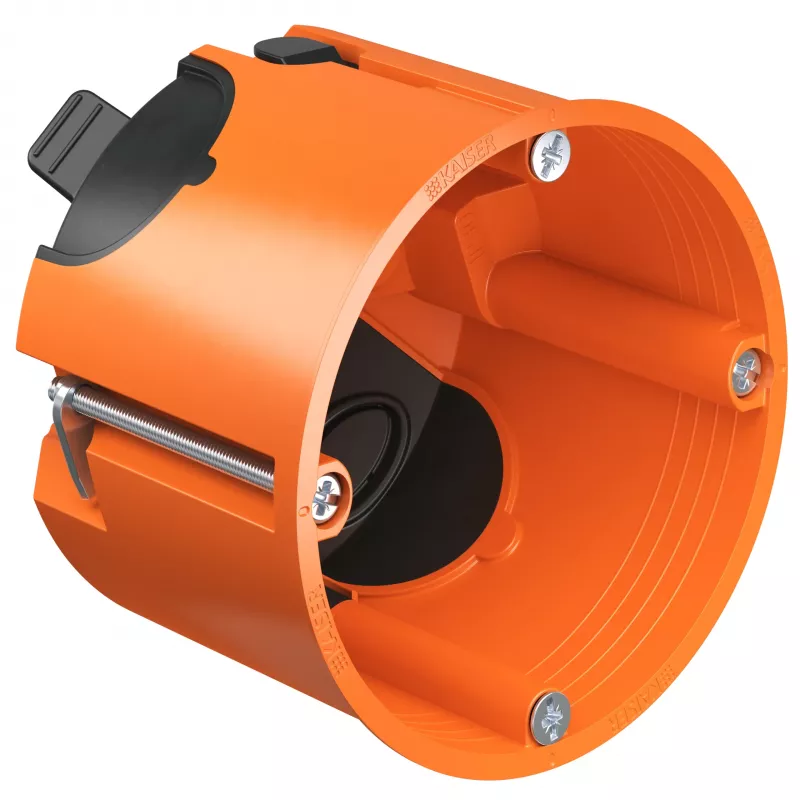

The Kaiser Elektro 9264-22 is a high-quality flush-mounted device box designed for solid walls, masonry, and concrete. With an outer diameter of 68 mm and an installation depth of 62 mm, it provides a secure and reliable enclosure for switches, sockets, and other electrical devices. Manufactured from flame-retardant, halogen-free polypropylene, this box ensures safety and durability in various installations.

Advantages

This flush-mounted box offers pre-punched knockouts for M20 and M25 conduits, allowing for flexible cable entry. It is air-tight and wind-tight, providing enhanced protection against drafts and moisture. The four integrated screw domes facilitate easy mounting of devices. Compliant with DIN VDE 0606-1, it guarantees high standards of electrical safety.

Suitable for

• Installation of switches and sockets in solid walls
• Use in masonry and concrete environments
• Applications requiring halogen-free and flame-retardant materials
• Projects needing air-tight and wind-tight enclosures

Key specifications

• Product Type: Flush-Mounted Device Box
• Mounting Type: Flush-mounted
• Outer Diameter: 68 mm
• Installation Depth: 62 mm
• Material: Plastic (Polypropylene)
• Cable Entry: Pre-punched knockouts for M20/M25
• Number of Cable Entries: 8
• Screw Domes: 4
• Air-Tight / Wind-Tight: Yes
• Halogen-Free: Yes
• Flame Retardant: Yes
• IP Protection Class: IP20
• Rated Insulation Voltage: Up to 400V
• Standard: DIN VDE 0606-1
• Colour: Orange

Recommendations

For optimal performance, use with compatible switches and sockets. Ensure proper installation according to local electrical codes. The orange colour aids in easy identification during installation.
