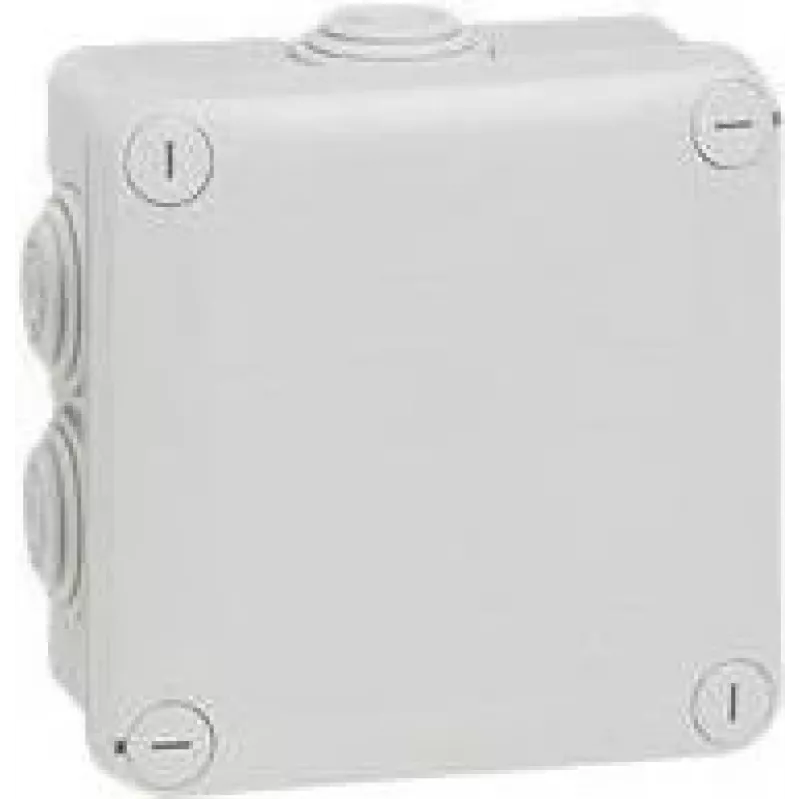

Caja de distribución eléctrica Legrand 092022 plástico IP55 105x105x55mm

The Legrand 092022 electrical junction box is a compact plastic enclosure with external dimensions of 105 x 105 x 55 mm and an IP55 protection rating. Designed to house wiring connections and small electrical components, the box provides mechanical protection and protection against dust ingress and water jets. Its plastic construction reduces corrosion risk and keeps the unit lightweight for versatile installation in residential, commercial, and light industrial environments.

Advantages

This junction box combines a standardized compact footprint with a weather-resistant IP55 rating, ensuring reliable protection of internal wiring from dust and low-pressure water jets. The plastic material offers electrical insulation and resistance to corrosion, while the internal volume and mounting features simplify cable routing and terminal placement. The product is compatible with common conduit and cable entry methods used in fixed electrical installations.

Key specifications

How to use

Mount the junction box on a suitable flat surface using the provided screw points, ensuring a secure and level installation. Route incoming and outgoing cables through designated entry points or conduits, secure conductors to terminals or connectors as required by the installation standard, and verify that cable seals and grommets maintain the IP55 protection rating. Close the lid and tighten fasteners to the manufacturer-recommended torque to preserve the enclosure’s protective properties.

Recommendations

Install in accordance with local electrical codes and safety standards; use appropriate cable glands or conduits for entries to retain IP55 protection. Avoid exposing the enclosure to continuous high-pressure water or immersion. Inspect seals and fasteners periodically for wear or damage and replace them if needed to maintain protection.
